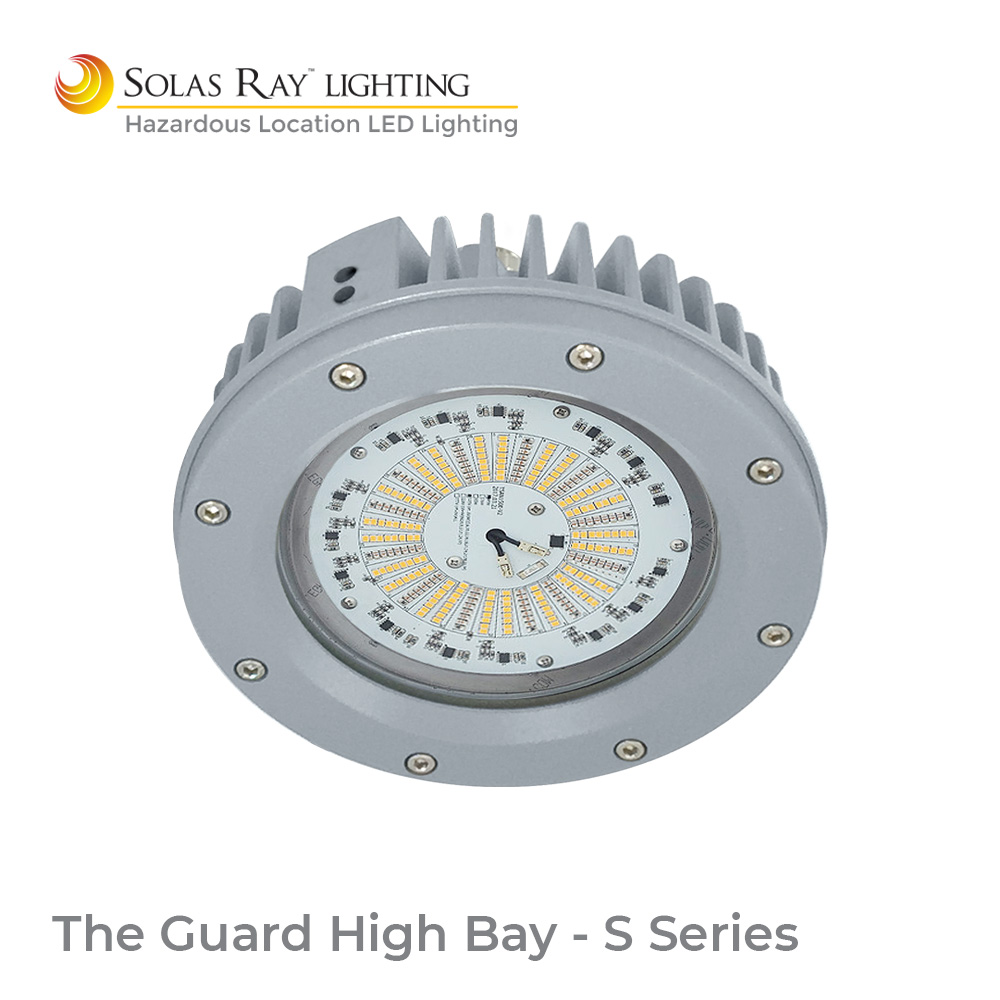

HTR11S Series – The Guard S-Series

HazLoc S Series Bay Light



CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires | UL 8750

NEC and CEC (HTR11S1 models)
• Class I Div 1 – Groups B, C, D
• Class II Div 1 – Groups E, F, G
• Class III

NEC and CEC (HTR11S2 models)
• Class I Div 2 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G
• Class III

• CSA C22.2 No. 137-M1981
• CSA C22.2 No. 30-M1986
• CSA C22.2 No. 25-1996
• CSA C22.2 No. 250.0
• CSA C22.2 No. 250.13
• IP67
• NEMA 6
• RoHS
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

• Vibration / anti-resonance design.
• Crush resistant with high impact resistance.
• Marine grade housing / salt water spray resistant.
• Atmospheric pressure tolerance up to 10 meter depth.
• Factory installed stainless steel cable gland included
standard. Precision machined and torque tested.
• IP67 rating.

DOWNLOADS







SPECIFICATIONS

Voltage 120vAC / 277vAC
Wattage 120w / 140w / 150w
Color Temp  3000 / 5000 Kelvin
Housing Coated copper free aluminum alloy
Color Gray
Lens Tempered glass
Lifetime 60,000 hrs L70
CRI ≥ 80 (3000K) / ≥70 (5000K)
Beam Angles X-110° / Y-110°
Power Factor cos ≥ 0.9
Protection IP67 / NEMA 6
Warranty 5 Year Limited Warranty

LUMENS

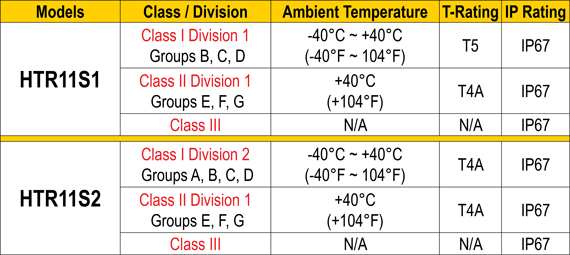

CLASS / DIVISION / TEMPERATURE

See specification sheet for product ordering selection, mounting options, weights and dimensions.
