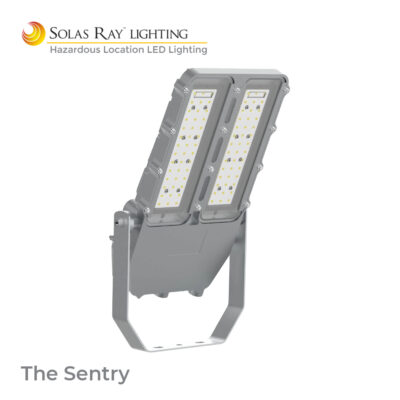

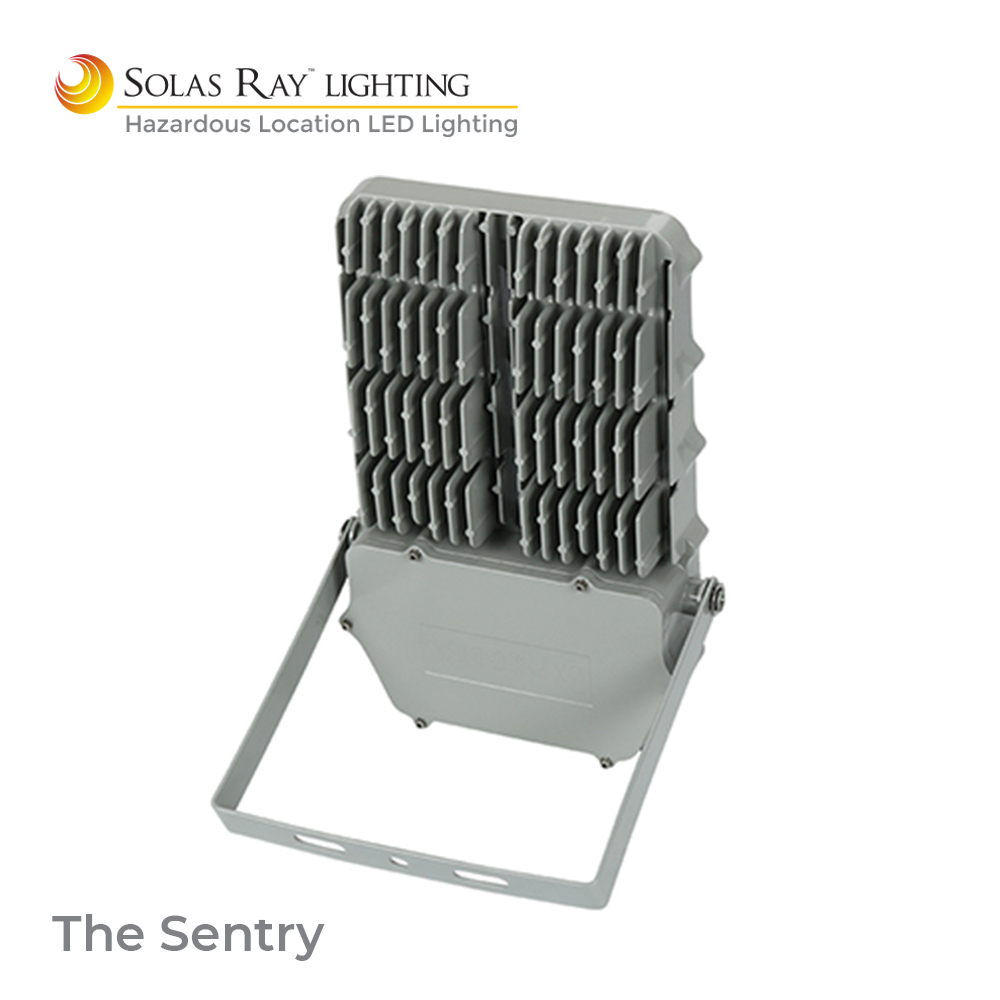

HJSE Series – The Sentry™
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 | UL1589A
NEC and CEC
• Class I, Div 2 – Groups A,B,C, D
• Class II, Div 1 – Groups E,F,G
• Class II, Div 2 – Groups F,G
• Class III
• ETL
• IP66
• ABS
• IK10
• IEC / IECEx
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Factory or road light designed for harsh locations.
• Up to 32,500 lumens.
• Ambient temperature rating of -40°C (-40°F) to 55°C (131°F)
• Optimum heat transfer for maximum longevity.
• IK10 impact rating.
• Dimmable 0-10V.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC / 480 VAC |
| Wattage | 100W / 150W / 200W / 250W |
| Ambient Temperature | -40°C (-40°F) to 55°C (131°F) |
| Color Temp | 5000 (Standard) / 4000 / 3000 Kelvin |
| Housing | Powder coated copper free aluminum |
| Color | Gray |
| Lens | Tempered glass |
| Efficacy | 130 lm/W (5000K models) |
| Lifetime | up to 100,000 hours |
| T-Rating | T4 (100W/150W) / T3 (200W/250W) |
| CRI | >70 |
| Beam Angles | Type III – 120° |
| Protection | IP66 / IK10 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 100w | 150w | 200w | 250w |
| 13,000 lm | 19,500 lm | 26,000 lm | 32,500 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
