The Scout HazLoc Light

UL STANDARDS
UL 844 – Hazardous Locations │ UL1598 – Luminaires

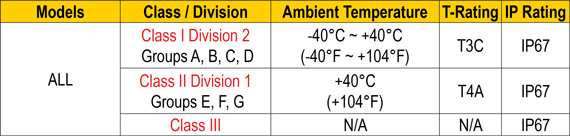

NEC and CEC
Class I Div 2 – Groups A, B, C, D │ Class II Div 1 – Groups E, F, G
• Vibration / Anti-Resonance Design.
• Crush Resistant with High Impact Resistance.
• Marine Grade Housing / Salt Water Spray Resistant.
• Atmospheric Pressure Tolerance up to 10 Meter Depth.
• Factory Installed Cable Gland is Standard.
• Rated IP67.

Kelvin Based Lumen Output
20 Watts 40 Watts 50 Watts 70 Watts 80 Watts
3000K 1,814 lm 3,627 lm 4,534 lm 6,347 lm 7,254 lm
5000K 1,950 lm 3,900 lm 4,875 lm 6,825 lm 7,800 lm

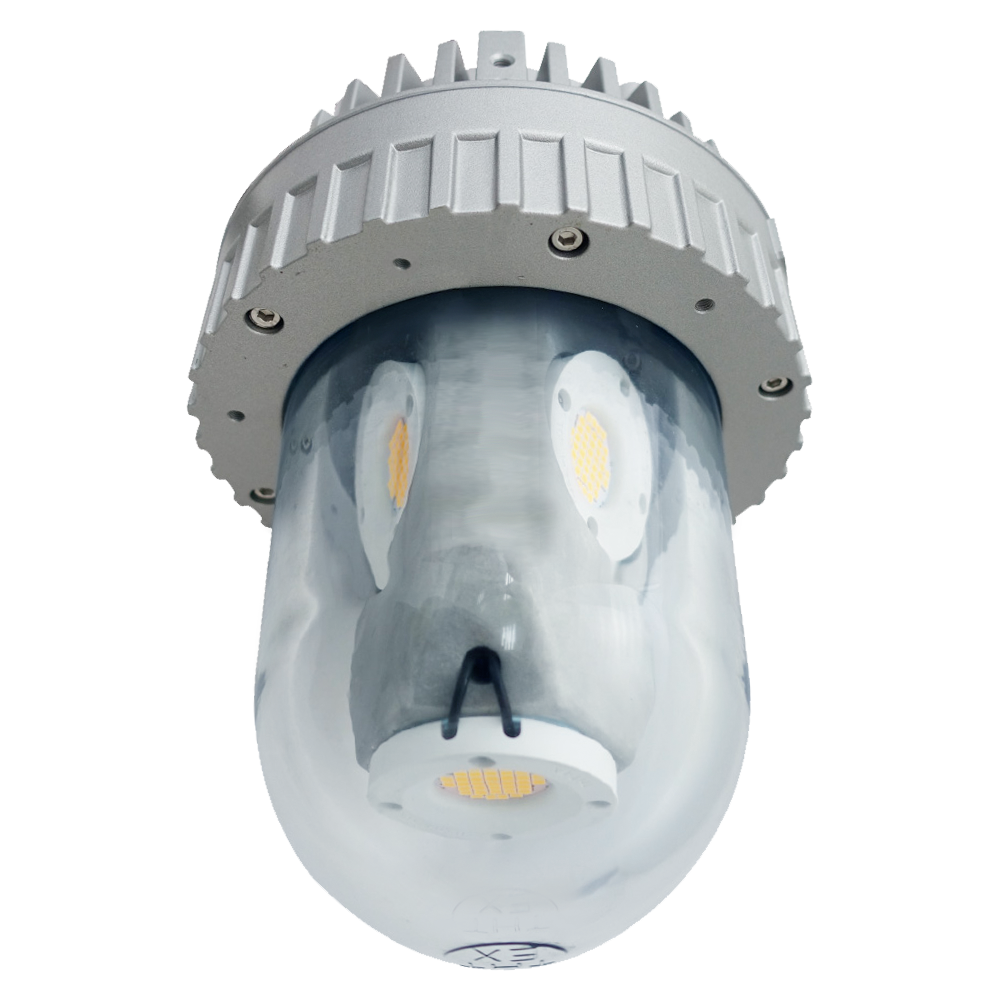

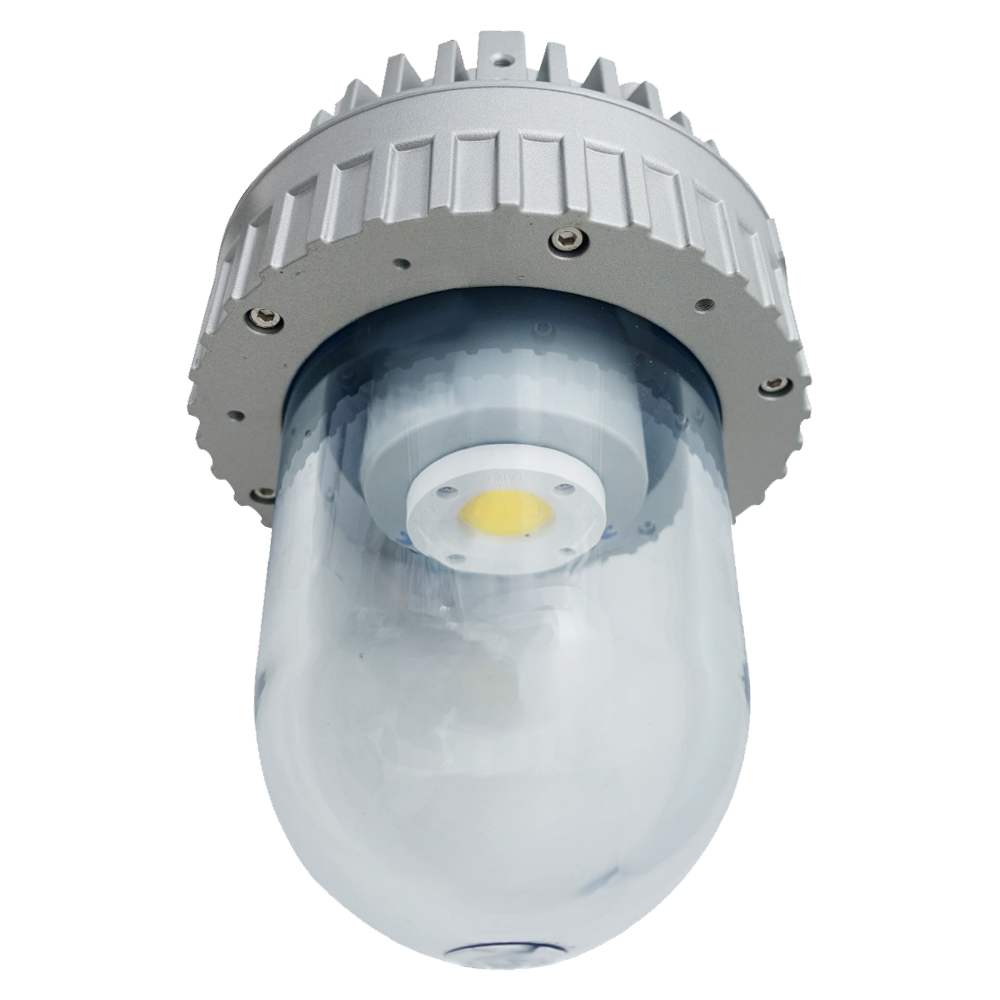

HTJM-040-50-120  HTJS-020-50-120

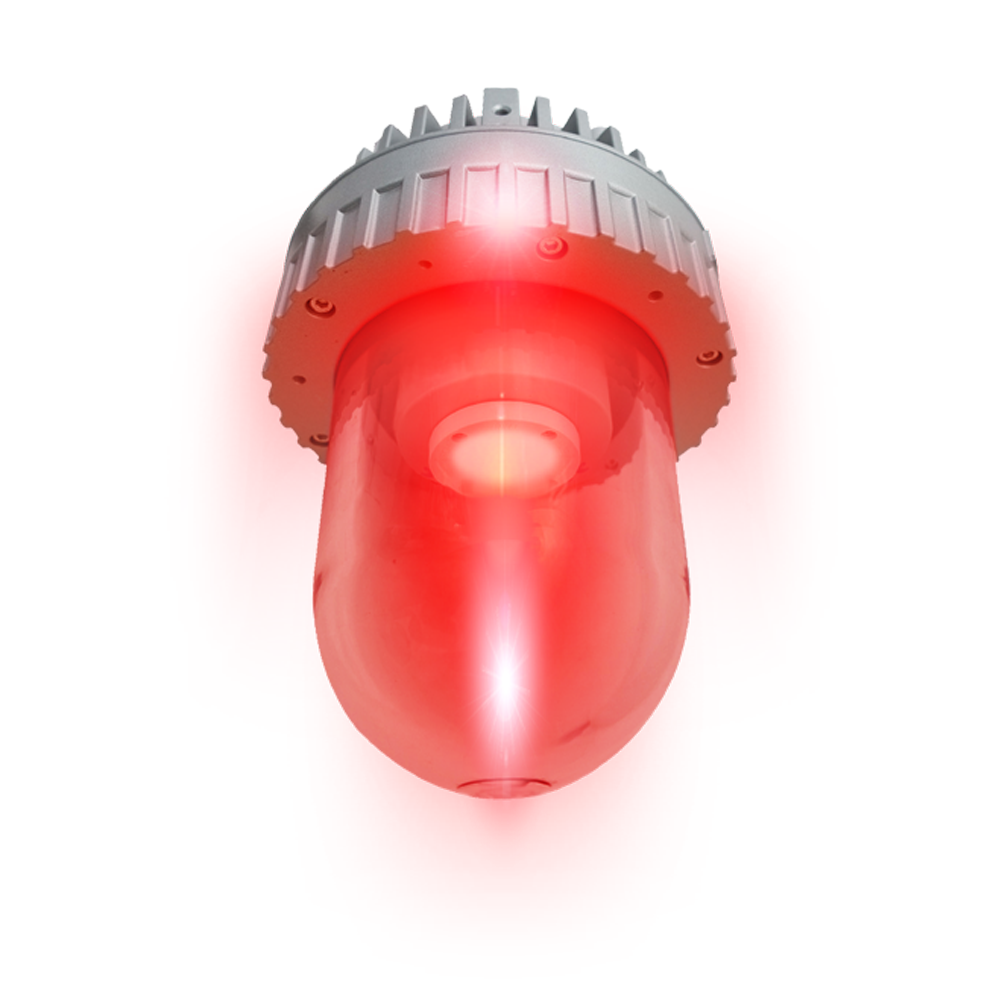

HTJM-050-50-120  HTJS-020-R-120

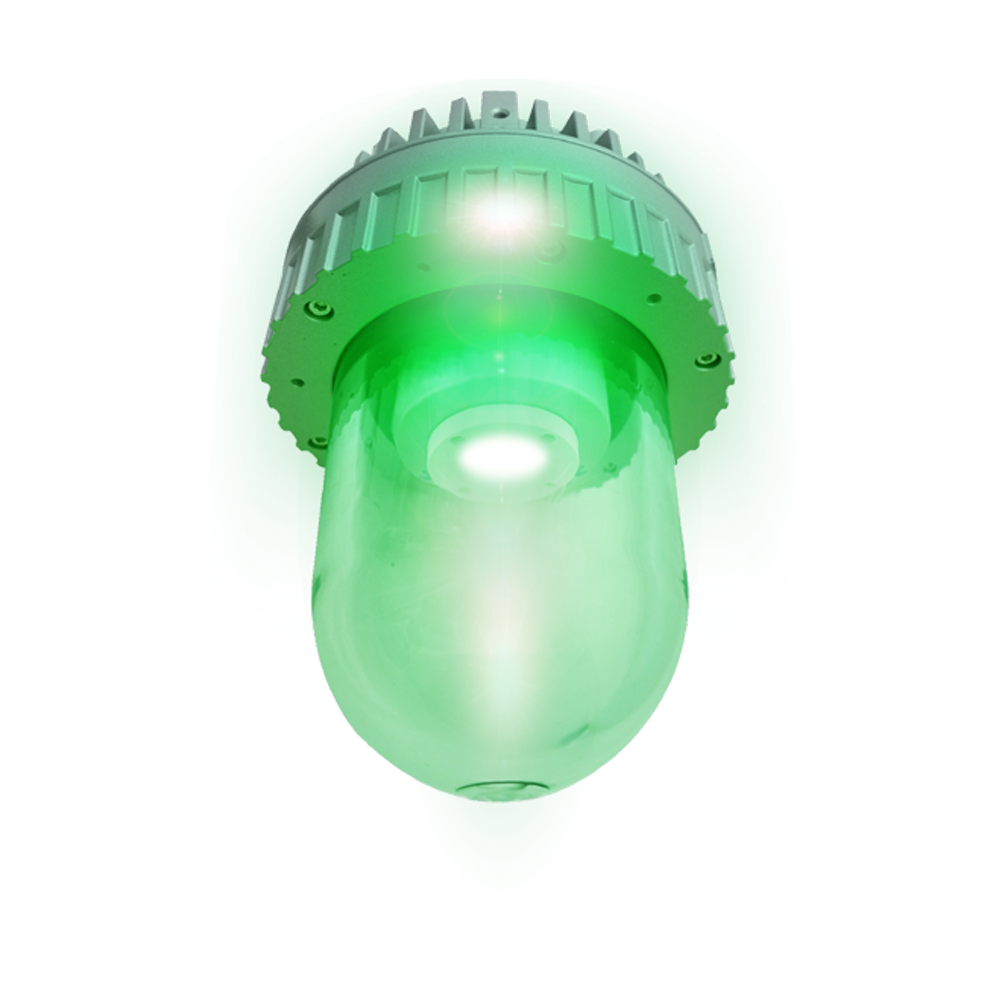

HTJM-070-50-120  HTJS-020-G-120
HTJM-080-50-120
HTJM-080-50-480
