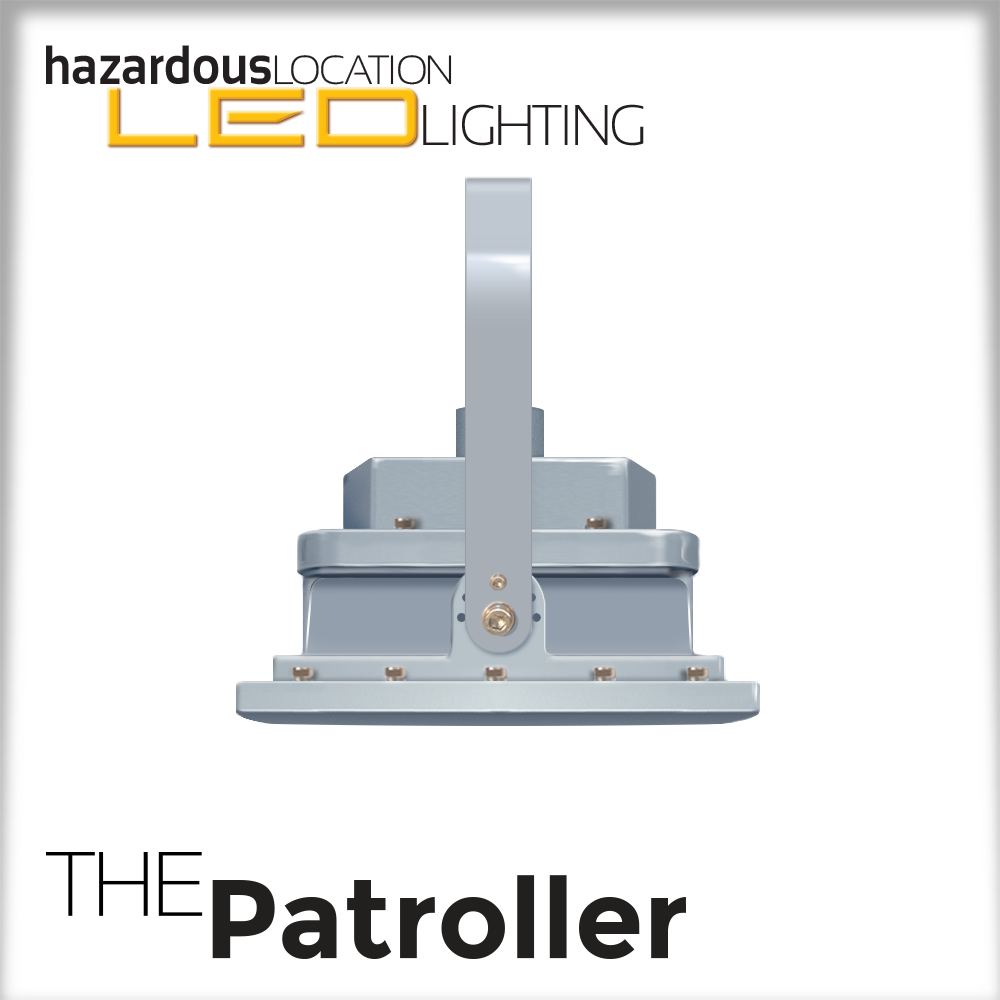

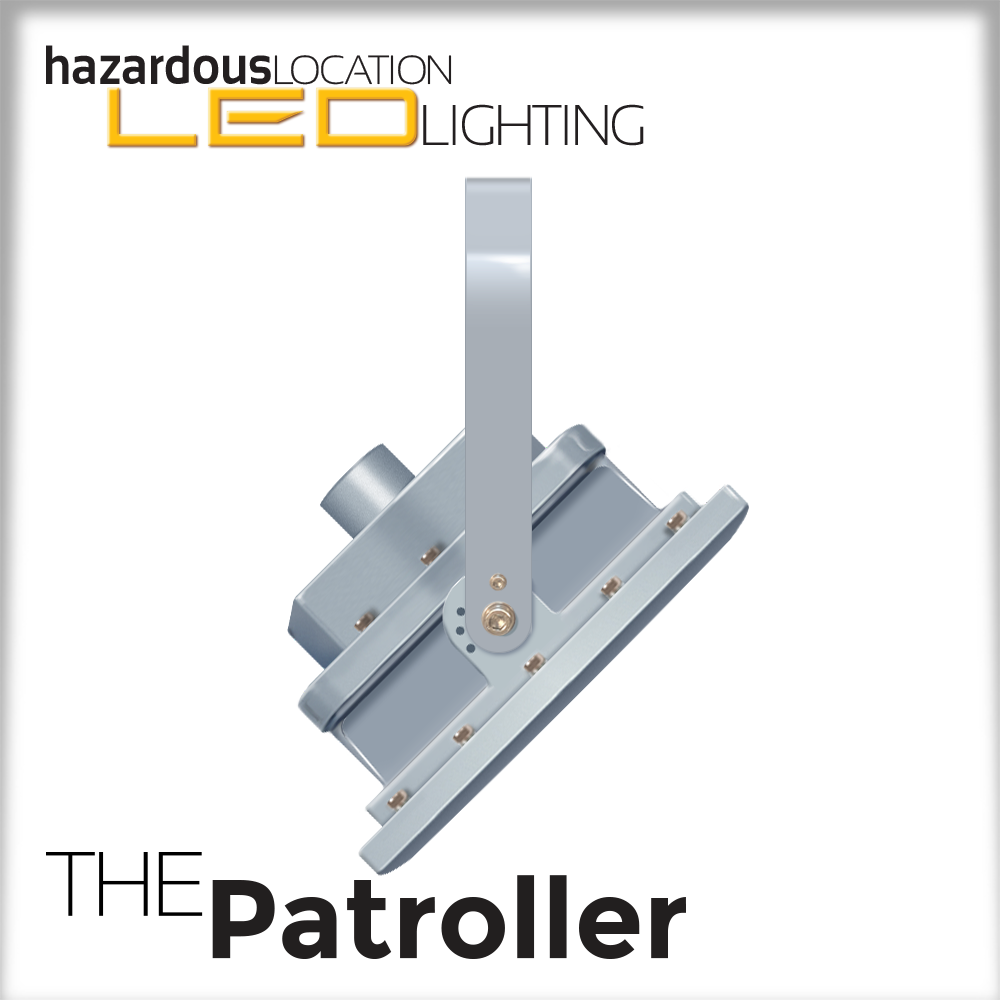

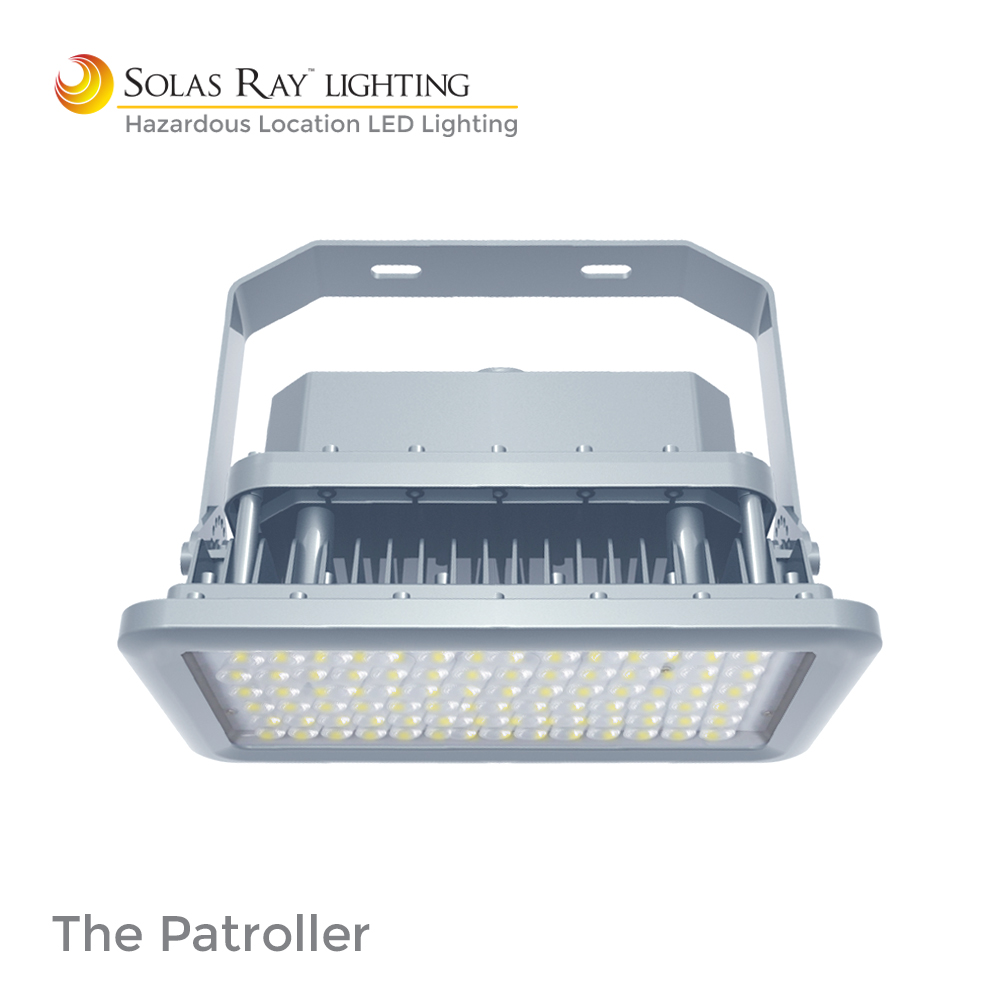

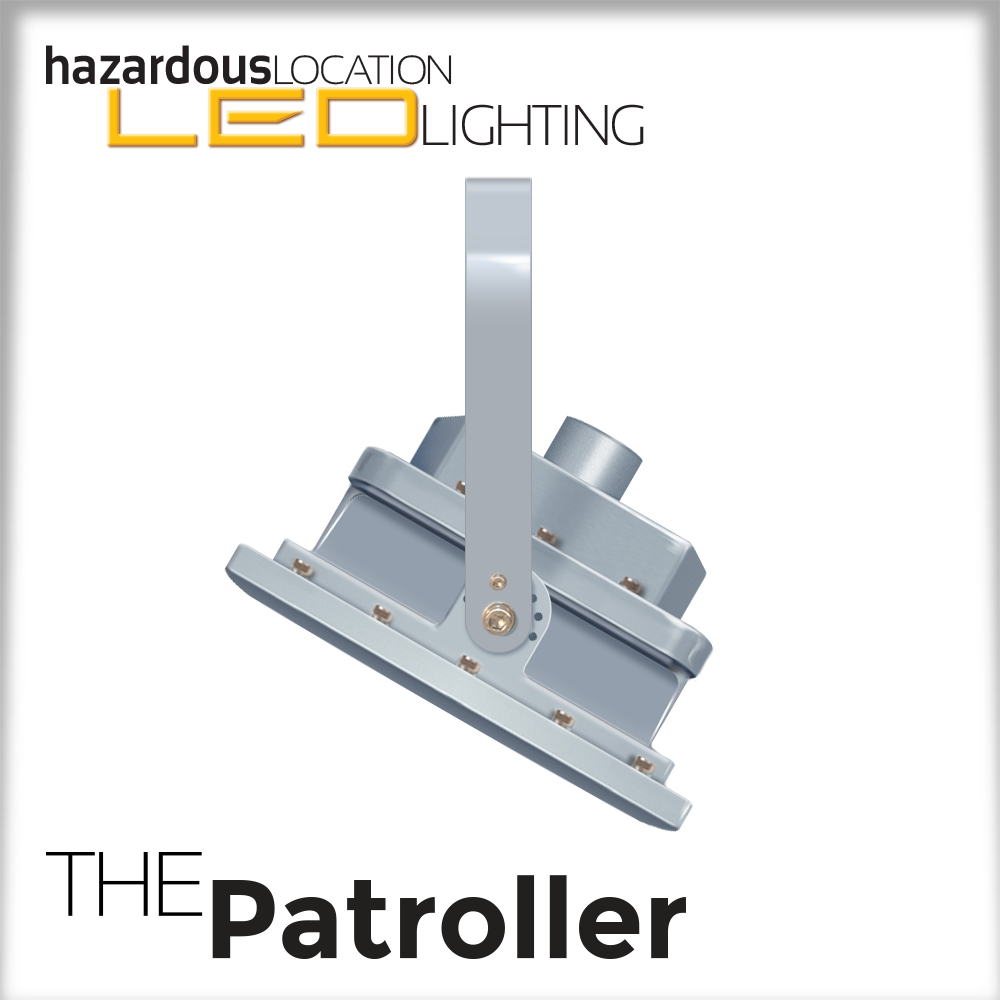

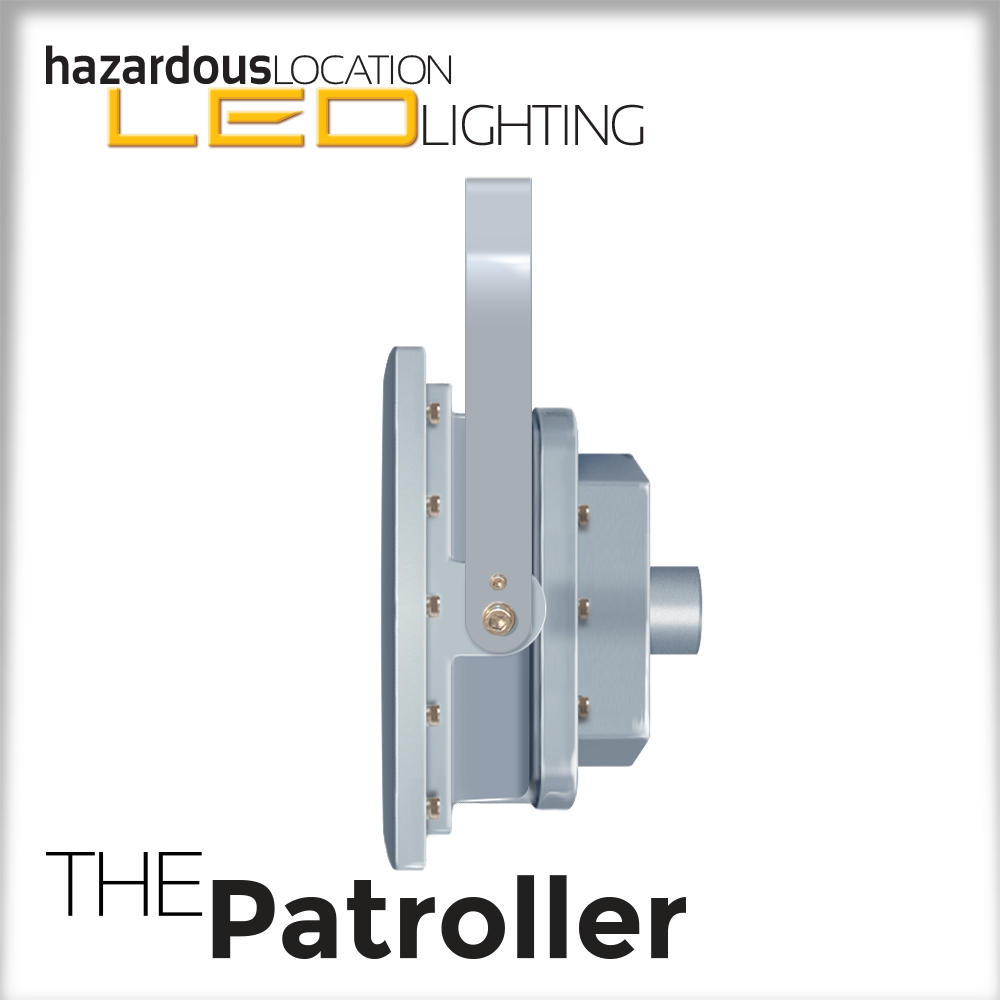

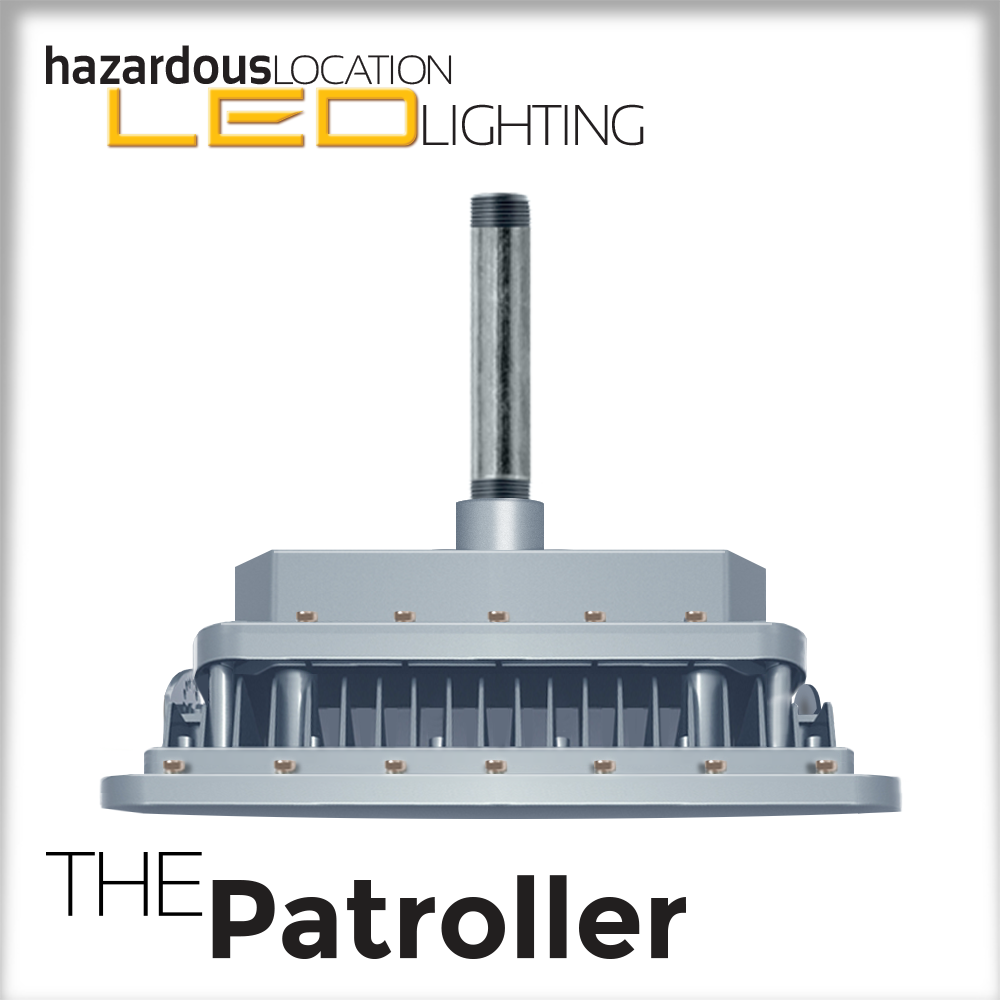

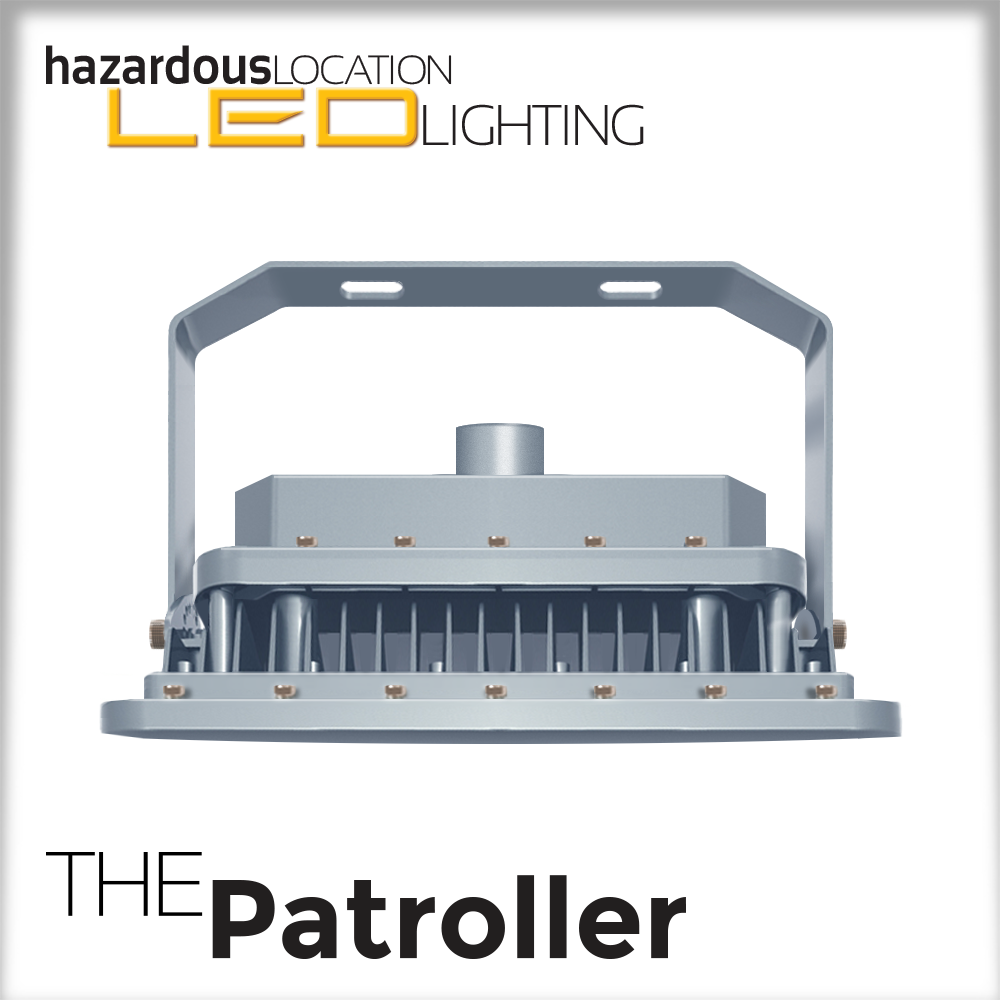

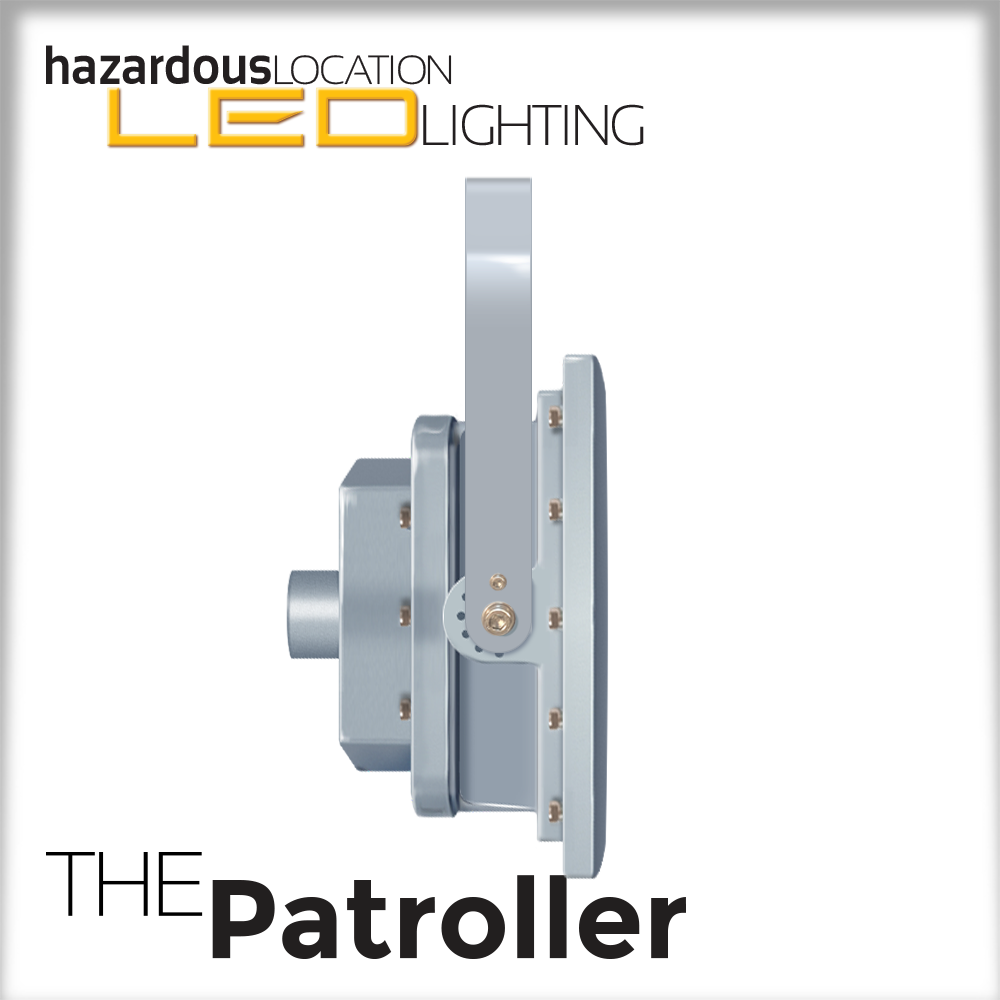

HJAS Series – The Patroller
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations | UL 1598 | UL1598A
NEC and CEC
• Class I Div 2 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G
• Class II Div 2 – Groups F, G
• Class III
• ETL
• IP66
• ABS
• Energy API
• IEC / IECEx
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Three sizes adaptable for lighting large to medium surface areas.
• Ambient temperature capabilities: -40°C to 55°C (131°F)
• Corrosion proof – coated aluminum allow (copper free) housing.
• Gray nylon corrosion resistant powder coat.
• Marine and wet location ready.
SPECIFICATIONS
| Voltage | 120-277VAC / 200-480VAC |
| Wattage | 20W / 40W / 60W / 80W / 100W / 150W / 200W / 250W / 300W / 400W |
| Ambient Temperature | -40°C (-40°F) to 55°C (131°F) |
| T-Rating | T3 |
| Housing | Coated copper free aluminum alloy |
| Color | Gray |
| Beam Angle | 40° / 60° / 90° / 120° (standard) |
| Lens | Flat tempered glass + polycarbonate beam angle lens |
| Efficacy | 130-140 lm/W |
| Lifetime | 70,000 hrs L70 |
| CRI | >70 cool white |
| Color Temp | 4000 / 5000 Kelvin |
| Power Factor | >0.90 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 20W | 40W | 60W | 80W | 100W | 150W | 180W | 200W | 250W | 300W | 400W |
| 2,800 | 5,600 | 8,400 | 11,200 | 14,000 | 21,000 | 25,200 | 28,000 | 35,000 | 42,000 | 56,000 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
