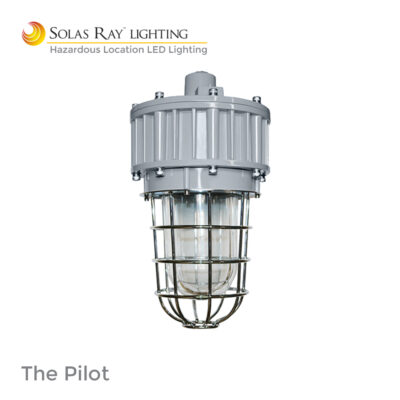

HJGJJ Series – The Pilot™
Hazardous Location LED Light
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 | UL1598A
NEC and CEC
• Class I, Div 1 – Groups C, D
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III
• IP66
• DLC V5.1 Standard*
• IK10
• ABS
• API
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Ambient temperature capabilities: -40°C (-40°C) to 65°C (149°F)
• Corrosion proof – coated aluminum alloy (copper free) housing.
•Marine rated protective powder coat.
• *DLC V5.1 Standard (20W/30W/40W models in 4000K/5000K)
• Wire guard included standard.
• Stainless steel hardware and bracket.

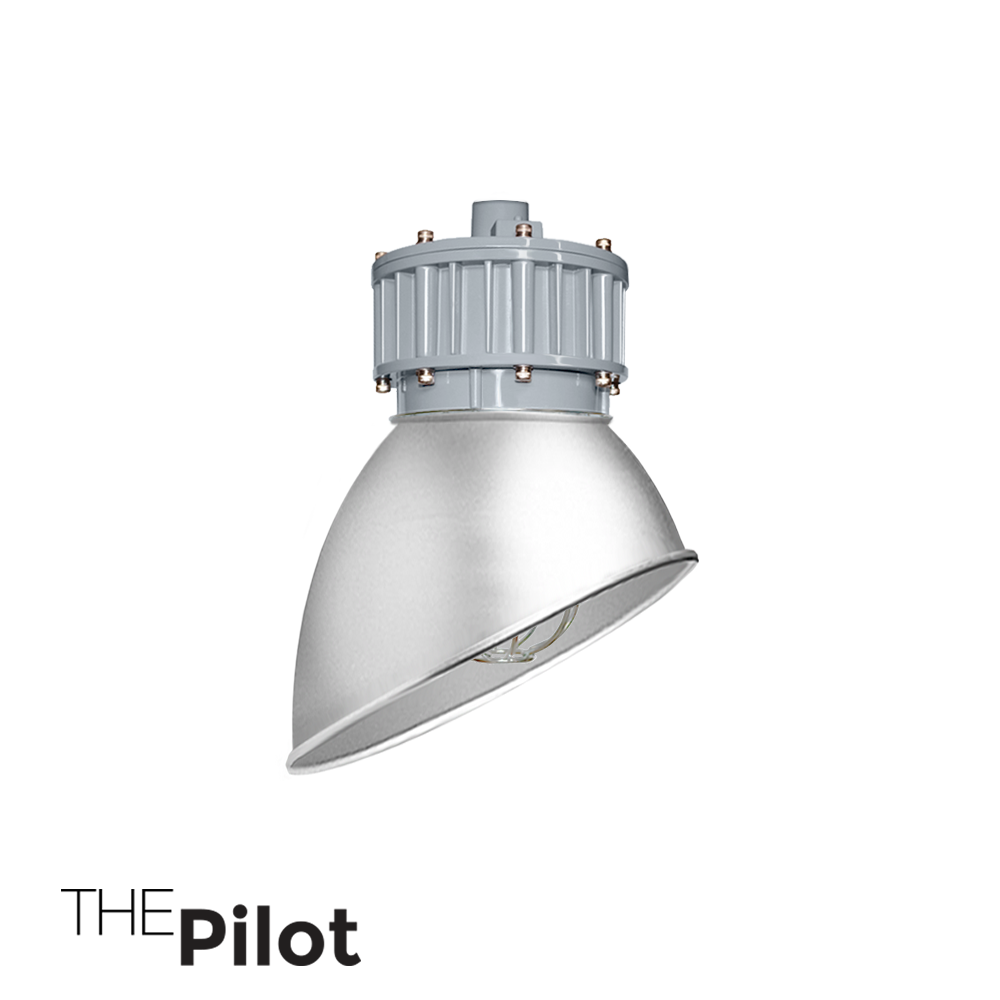

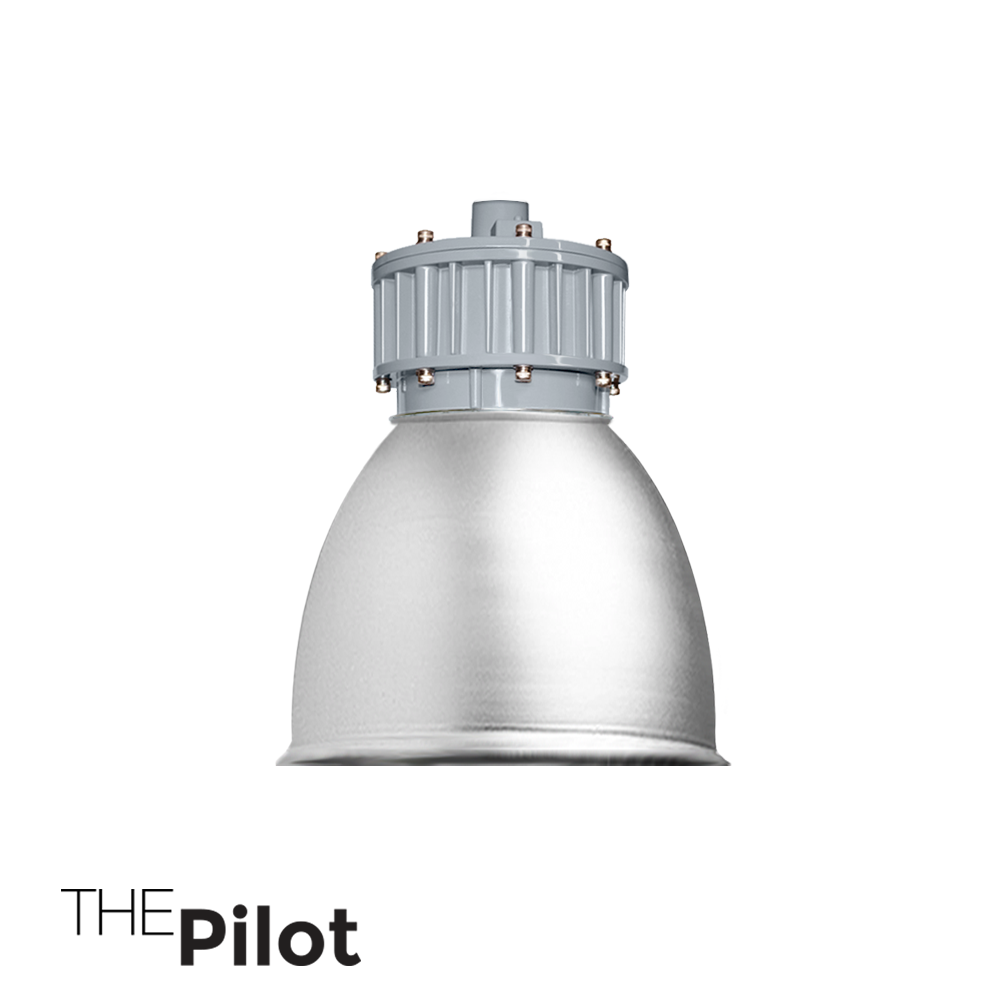

• Reflective hoods available.
• Heavy duty and high impact resistance – IK10 rated.
DOWNLOADS
SPECIFICAIONS
| Voltage | 100-277 VAC |
| Wattage | 10W / 20W / 30W / 40W |
| Color Temp | 4000 / 5000 Kelvin |
| Housing | Coated copper free aluminum alloy |
| Color | Gray |
| Lens | Tempered glass globe |
| Ambient Temperature | -40°C (-40°F) to 65°C (149°F) |
| T-Rating | T4 (40°C / 104°F ambient temp max) |
| Lifetime | 100,000+ hrs L70 |
| CRI | 80 |
| Beam Angle | 120° |
| Entrance Thread | 3/4” NPT |
| Protection | IP66 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 10W | 20W | 30W | 40W |
| 1,400 | 2,800 | 4,200 | 5,600 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
