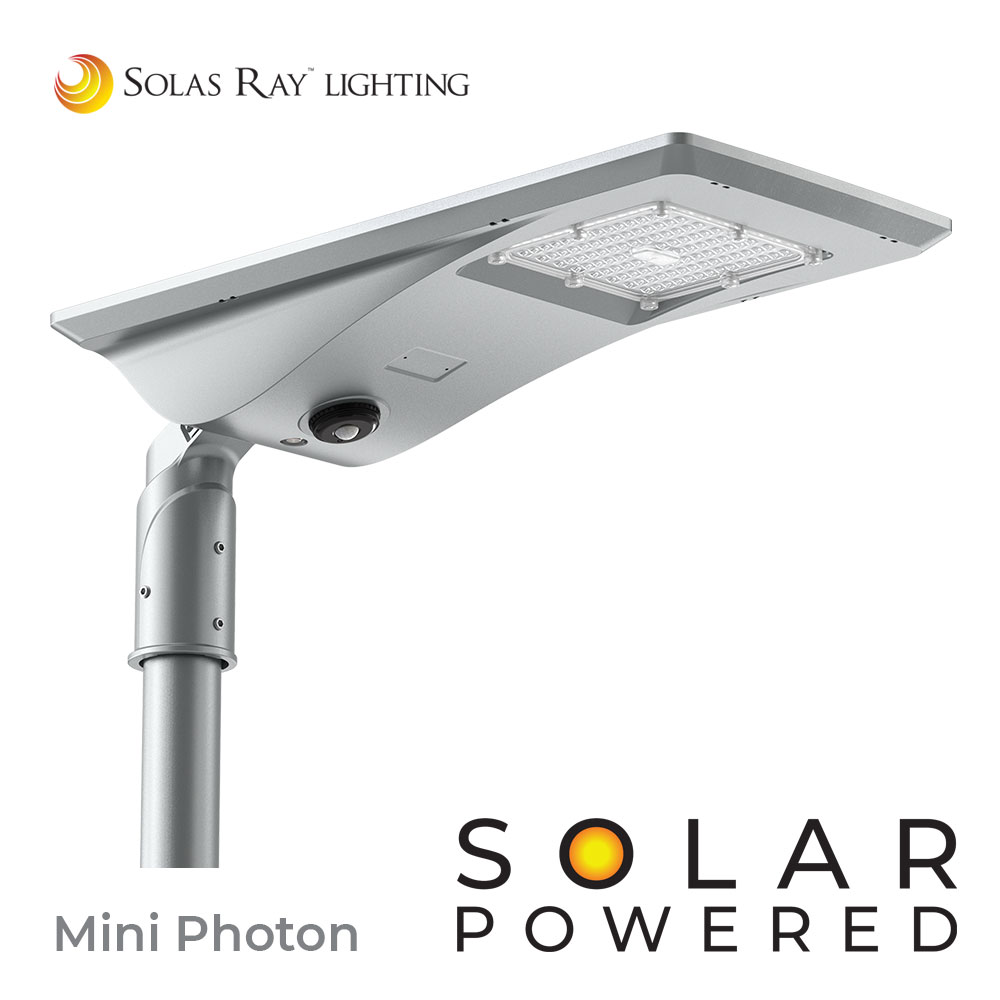

Solar Powered LED Area Light
FEATURES AND BENEFITS
• 26″ x 12″ panel.
• Convenient LED light, solar panel, and battery integrated into a single unit.
• Adjustable angle.
• Up to 6,000 lumens, 10, 20 and 30 watt versions available.
• High conversion efficiency mono-crystalline photovoltaic solar panel.
• Long life and high temperature resistance LiFePO4 battery.
• 8 hour charge can power light up to 4 days in intelligent control mode, optional
remote control available for intelligent control reprogramming.
• PIR motion sensor.
• Hybrid dual-powered option available – AC power takes over if battery is low.
DOWNLOADS
SPECIFICATIONS
| Wattage |
10w / 20w / 30w |
| Color Temp |
3000 / 4000 (Std) / 5000 Kelvin |
| Housing |
Aluminum Alloy |
| Color |
Silver (Std) / Bronze / Black (powder coated) |
| Lens |
Polycarbonate |
| Lifetime |
101,000 hrs L70 |
| Distribution Pattern |
Type II med (Std) / Type III short / Type V short |
| Working Mode |
Intelligent control |
| Control |
Timer dimming / PIR sensor |
| Ambient Temperature |
0°C (32°F) to 50°C (122°F) recommended, for colder temps – see Application Guide in spec sheet |
| Protection |
IP65 |
| Warranty |
3 Year Limited Warranty |
LUMENS
| Model |
10w |
20w |
30w |
| Lumens |
2,000 |
4,000 |
6,000 |
BATTERY SPECIFICATIONS
| With their high temperature resistance, large current discharge and long life cycle rating, LiFePO4 batteries are preferable for use in solar powered lights. |
| Type |
LiFePO4 (Lithium Iron Phosphate) |
| Run Time |
Up to 4 days (intelligent control) on full charge, Up to 8 hours at 100% brightness |
| Life Cycle |
>2000 cycles |
| Capacity |
6Ah (10w) / 12Ah (20w) / 18Ah (30w) |
| Charge Time |
>3 hrs (10w) / >6 hrs (20w) / >9hrs (30w) |
SOLAR PANEL SPECIFICATIONS
| Mono-crystalline is the preferred type of panel for solar powered lights due to their superior efficiency and lifespan. Features a 21% conversion rate, which is 30% higher compared to traditional solar panels. |
| Type |
High efficiency mono-crystalline |
| Charge Controller |
PWM (Pulse Width Modulation – DC to DC converter that matches charge voltage to battery voltage as it varies due to charge level) |
Solar Powered LED Area Light
FEATURES AND BENEFITS
• Convenient LED light, solar panel, and battery integrated into a single unit.
• Adjustable angle.
• Up to 12,000 lumens, 40, 50 and 60 watt versions available.
• High conversion efficiency mono-crystalline photovoltaic solar panel.
• Long life and high temperature resistance LiFePO4 battery.
• 8 hour charge can power light up to 3 days in intelligent control mode, optional remote control available for intelligent control reprogramming.
• PIR motion sensor.
• Hybrid dual-powered option available – AC power takes over if battery is low.
DOWNLOADS
SPECIFICATIONS
| Wattage |
40w / 50w / 60w |
| Color Temp |
3000 / 4000 (Std) / 5000 Kelvin |
| Housing |
Aluminum Alloy |
| Color |
Silver (Std) / Bronze / Black (powder coated) |
| Lens |
Polycarbonate |
| Lifetime |
101,000 hrs L70 |
| Distribution Pattern |
Type II med (Std) / Type III short / Type V short |
| Working Mode |
Intelligent control |
| Control |
Timer dimming / PIR sensor |
| Ambient Temperature |
0°C (32°F) to 50°C (122°F) recommended, for colder temps – see Application Guide in spec sheet |
| Protection |
IP65 |
| Warranty |
3 Year Limited Warranty |
LUMENS
| Model |
40w |
50w |
60w |
| Lumens |
8,000 |
10,000 |
12,000 |
BATTERY SPECIFICATIONS
| With their high temperature resistance, large current discharge and long life cycle rating, LiFePO4 batteries are preferable for use in solar powered lights. |
| Type |
LiFePO4 (Lithium Iron Phosphate) |
| Run Time |
Up to 3 days (intelligent control) on full charge, Up to 8 hours at 100% brightness |
| Life Cycle |
>2000 cycles |
| Capacity |
24Ah (40w) / 30Ah (50w) / 36Ah (60w) |
| Charge Time |
>6 hrs (40w) / >7 hrs (50w) / >9hrs (60w) |
SOLAR PANEL SPECIFICATIONS
| Mono-crystalline is the preferred type of panel for solar powered lights due to their superior efficiency and lifespan. Features a 21% conversion rate, which is 30% higher compared to traditional solar panels. |
| Type |
High efficiency mono-crystalline |
| Charge Controller |
MPPT (Maximum Power Point Tracking – DC to DC converter that optimizes the match between the battery and solar panel) |
Solar Powered LED Bollard
CERTIFICATIONS / RATINGS
• CE
• IK10
• IP65
KEY FEATURES AND BENEFITS
• Solar powered LED designer bollard with great looks.
• IK10 rated anti-UV vandal-proof cover.
• Optional heated battery for cold environment operation (down to -40°C / -40°F).
• Up to 5 working nights without sunshine (40-50 working hours on full charge).
• 350 lumen max output.
• Selectable color temperature (3000K / 5000K), (3000K / 4000K) or (5000K/Turtle Friendly Amber).
• 11.25” diameter housing for large solar panel to maximum light collection.
• Ultra efficient 180 lumens per watt.
• Four selectable working modes (see p2).
• Automatically reduces output when battery is below 20% capacity to allow for longer operating time on continuous rainy/cloudy days.
• Die-cast housing with marine class coating.
• Direct bury pole option.
DOWNLOADS
SPECIFICATIONS
| Lumens |
350 lm |
| LED Wattage |
1.75 W |
| Beam Angles |
Type II / Type III / Type V |
| Color Temp |
Selectable 3000K/5000K, 3000K/4000K or 3000K/Amber |
| Housing |
Die-cast aluminum with marine grade coating |
| Ambient Temperature |
-20°C (-4°F) to 60°C (140°F) |
| -40°C (-40°F) to 60°C (140°F) w/ battery warmer |
| Lifetime |
>50,000 hrs LM80 |
| Color |
Black |
| Solar Panel |
8W mono-crystalline |
| Battery Type |
7.4V Li-ion |
| Battery Capacity |
10Ah / 74Wh |
| Working Hours |
40-50 hours on full charge |
| Charging Time |
8-10 hours |
| Warranty |
2 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
IN STOCK INDUSTRIAL AND HAZARDOUS LOCATION LED LIGHTING When time is short, Solas Ray™ Lighting has you covered with our QUICK SHIP / IN STOCK HAZLOC program. On this page is a list of our lighting products that are typically in stock in significant quantities and can be shipped with minimal lead times. Program Details/Requirements: … Continue reading “Quick Ship Program – Industrial LED Lighting In Stock”
IES FILE LIBRARY On this page you can find links to available IES files for Solas Ray Lighting Products. Links are organized by product series (leading letters of part numbers.) IES files are also located on each product page. BANSF Series – The Shield High Bay BL Series – The Beast High Bay BQ9 Series … Continue reading “IES File Library”
PRODUCT LOOKUP BY SERIES Use this page to quickly find a product by its series designation. The series can be identified from a model number by looking at the leading letters that exist before the first dash or number. PRODUCT LIST (Alphabetical) BANSF Series – The Shield High Bay BL Series – The Beast High … Continue reading “Product Lookup By Series”
OUTDOOR LED LIGHTING Outdoor Lighting SOPH Series – The Solar Photon™ Outdoor Lighting Flex-Fitter Area Light Outdoor Lighting Canopy Lighting GS Outdoor Lighting Canopy Lighting CL Outdoor Lighting WWP Series – Power & CTT Selectable Heavy Duty Semi Cut-Off Wall Pack Outdoor Lighting WWC Series – Power & CTT Selectable Heavy Duty Full Cut-Off Wall … Continue reading “Outdoor Lighting”
SELECT LIGHTING BY CATEGORY Click here to lookup a product by series ALL PRODUCTS ROUND HIGH BAY LED LIGHTING (INDUSTRIAL) High Ambient Temp DBL Series – The Beast™ Evolution 2 BAA & TAA Products BL Series – The Beast™ Round High Bay Lighting BANSF Series – The Shield™ High Bay Round High Bay Lighting The … Continue reading “Product Categories”

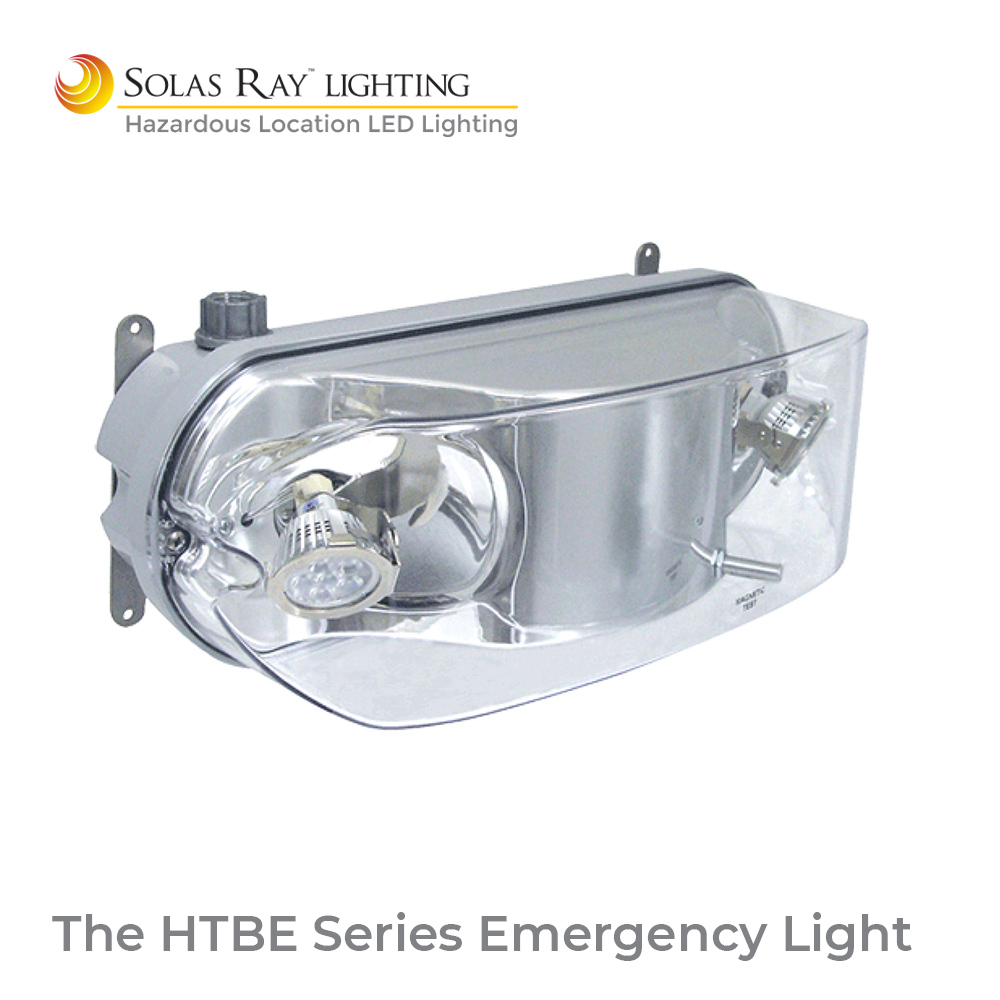

CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL924 | UL1604
NEC and CEC
• Class I, Div 2 – Groups A,B,C, D
• CSA
• IP66
• NFPA
• NEMA 4X
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Provides a minimum of 90 minutes of emergency light through (2) LED lamps.
• Nickel-Cadmium (NC) or Sealed Lead-Acid (SLA) battery options.
• 6 or 12 volt battery options.
• Push-to-test button for easy battery testing (auto test option available).
• Water and corrosion-resistant housing with fully gasketed cover.
• Vented battery compartment with breather vent designed to permit exhaust of battery gases without admitting external moisture or corrosives.
• Remote heads available (12 volt battery required).
– Remote heads are Class I, Div 2, Groups A, B, C, D rated.
– Single 5w LED lamp or dual 5w LED lamps.
– Universal J-box mounting.
– -40°C (-40°R) to 40°C (104°F) ambient temperature rated.
DOWNLOADS
SPECIFICATIONS
| Voltage |
120vAC / 277vAC |
| Wattage |
5w / 7w (LED Lamps) |
| Housing |
Fiberglass Reinforced Polyester |
| Color |
Gray |
| Lens |
Polycarbonate |
| Battery Voltage |
6vDC or 12vDC |
| Battery Capacity |
18w / 22w / 27w / 36w / 42w / 54w / 60w |
| Battery Type |
Nickel-Cadmium (NC) or Lead-Acid (SLA) |
| Protection |
IP66 / NEMA 4X |
| Ambient Temperature |
10°C (50°F) to 40°C (104F) |
| Warranty |
5 Year Limited Warranty |
