SOMP Series – The Solar Mini Photon™
Solar Powered LED Area Light
FEATURES AND BENEFITS
• 26″ x 12″ panel.
• Convenient LED light, solar panel, and battery integrated into a single unit.

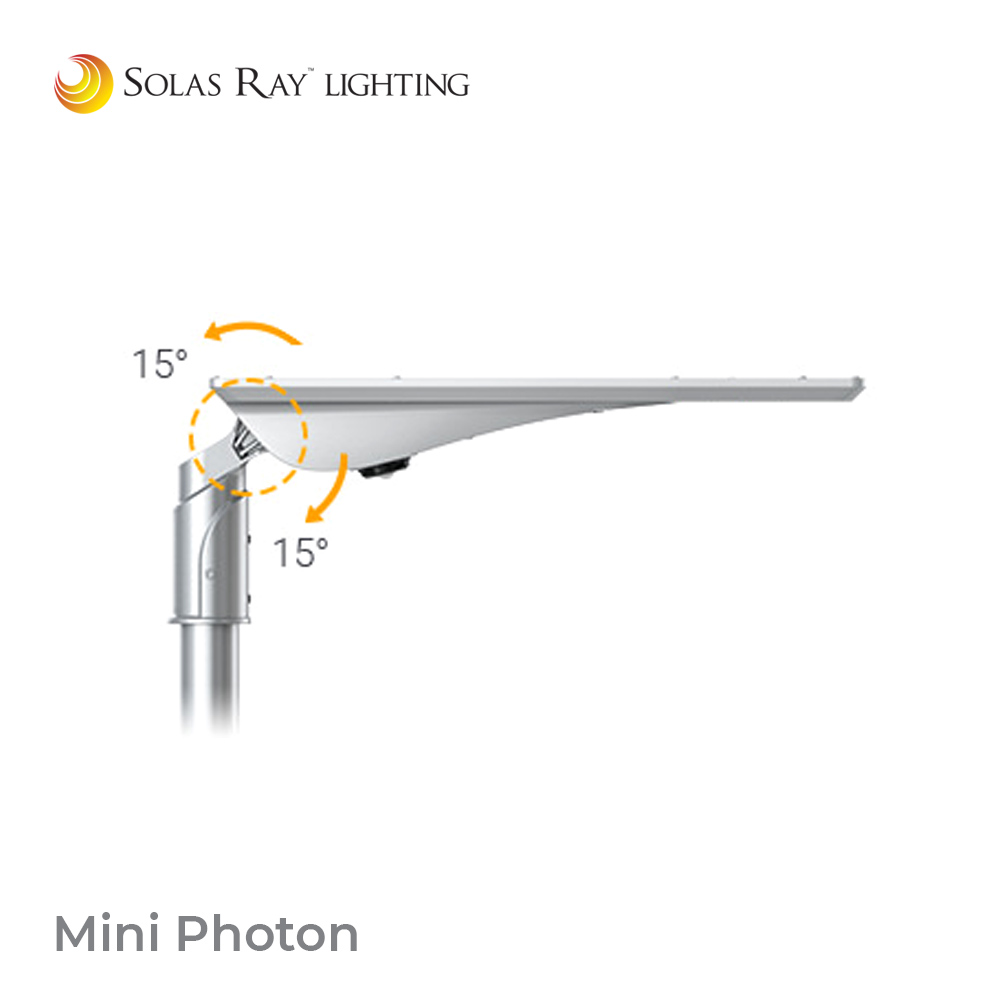

• Adjustable angle.
• Up to 6,000 lumens, 10, 20 and 30 watt versions available.

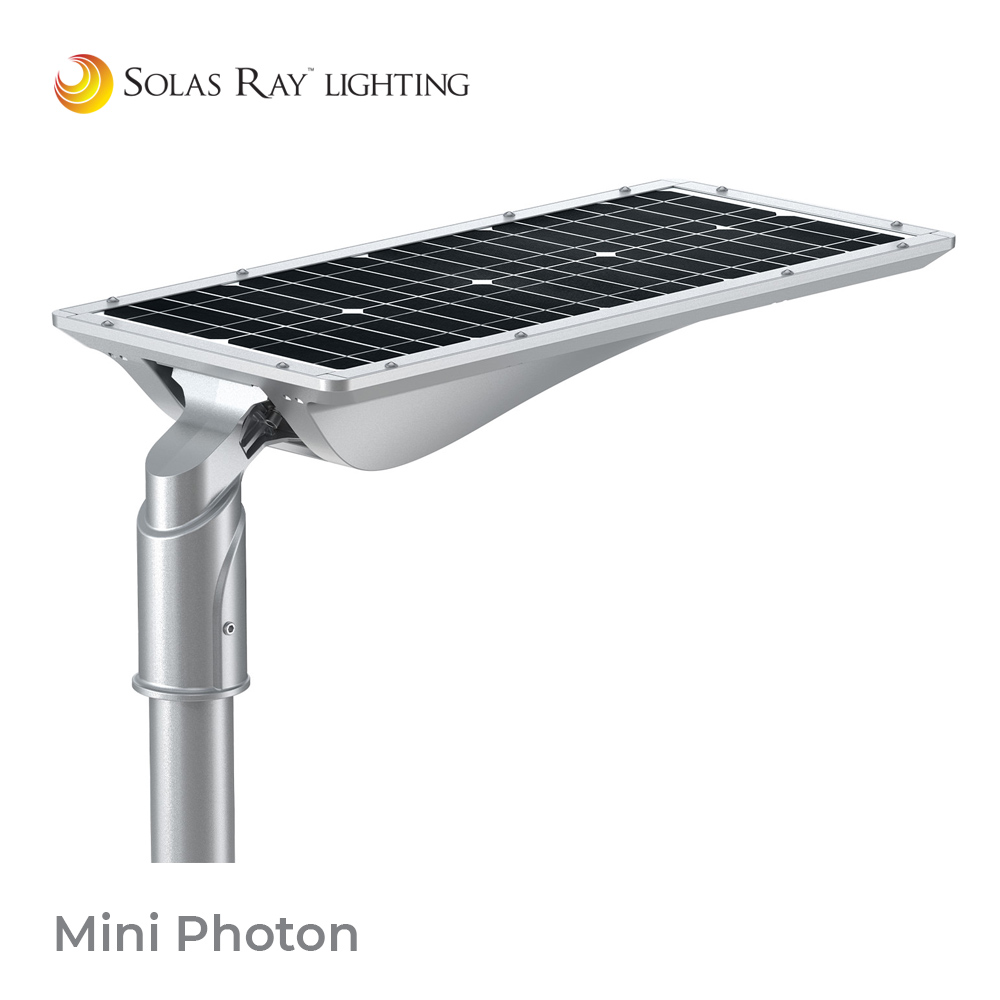

• High conversion efficiency mono-crystalline photovoltaic solar panel.
• Long life and high temperature resistance LiFePO4 battery.

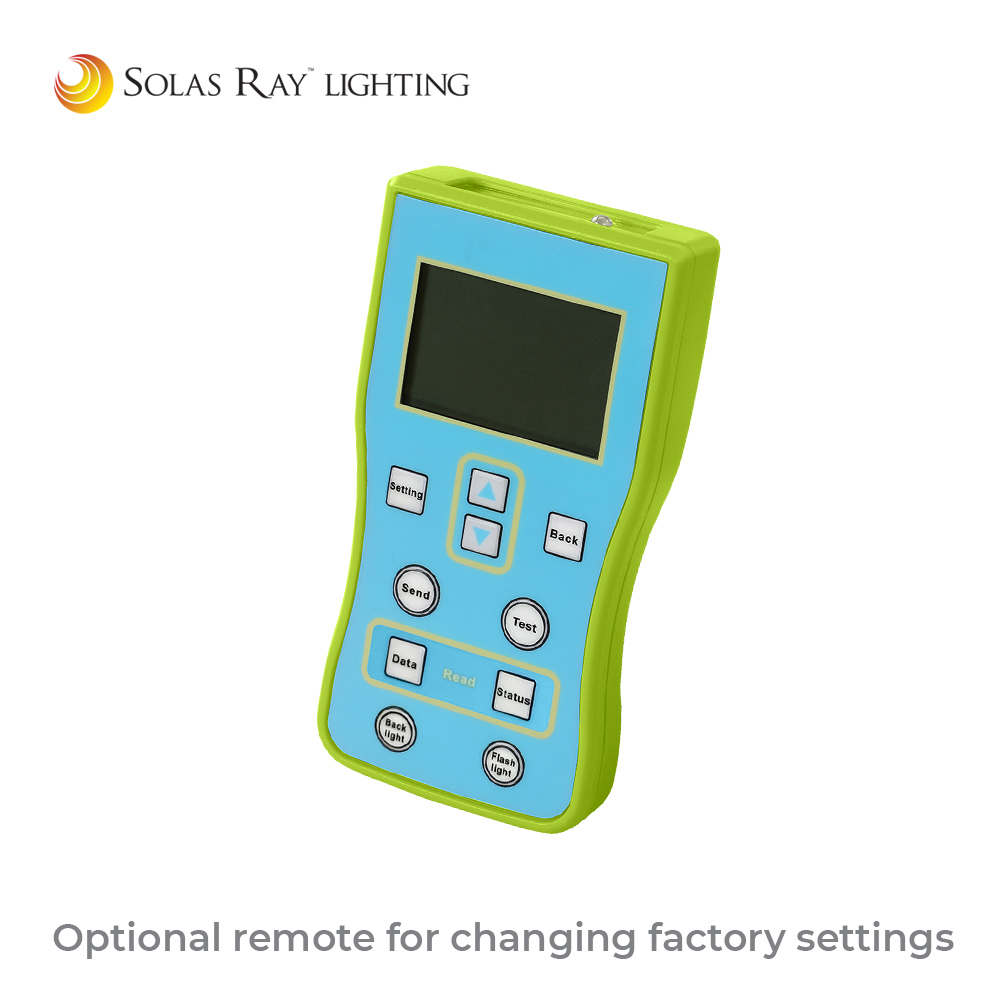

• 8 hour charge can power light up to 4 days in intelligent control mode, optional
remote control available for intelligent control reprogramming.
• PIR motion sensor.
• Hybrid dual-powered option available – AC power takes over if battery is low.
DOWNLOADS
SPECIFICATIONS
| Wattage | 10W / 20W / 30W |
| Color Temp | 2700 / 3000 / 4000 (Std) / 5000 Kelvin |
| Housing | Aluminum Alloy |
| Color | Silver (Std) / Bronze / Black (powder coated) |
| Lens | Polycarbonate |
| Lifetime | 101,000 hrs L70 |
| Distribution Pattern | Type II med (Std) / Type III short / Type V short |
| Working Mode | Intelligent control |
| Control | Timer dimming / PIR sensor |
| Ambient Temperature | 0°C (32°F) to 50°C (122°F) recommended, for colder temps – see Application Guide in spec sheet |
| Protection | IP65 |
| Warranty | 3 Year Limited Warranty |
LUMENS
| Model | 10w | 20w | 30w |
| Lumens | 2,000 | 4,000 | 6,000 |
BATTERY SPECIFICATIONS
| With their high temperature resistance, large current discharge and long life cycle rating, LiFePO4 batteries are preferable for use in solar powered lights. | |
| Type | LiFePO4 (Lithium Iron Phosphate) |
| Run Time | Up to 4 days (intelligent control) on full charge, Up to 8 hours at 100% brightness |
| Life Cycle | >2000 cycles |
| Capacity | 6Ah (10W) / 12Ah (20W) / 18Ah (30W) |
| Charge Time | >3 hrs (10W) / >6 hrs (20W) / >9hrs (30W) |
SOLAR PANEL SPECIFICATIONS
| Mono-crystalline is the preferred type of panel for solar powered lights due to their superior efficiency and lifespan. Features a 21% conversion rate, which is 30% higher compared to traditional solar panels. | |
| Type | High efficiency mono-crystalline |
| Charge Controller | PWM (Pulse Width Modulation – DC to DC converter that matches charge voltage to battery voltage as it varies due to charge level) |
