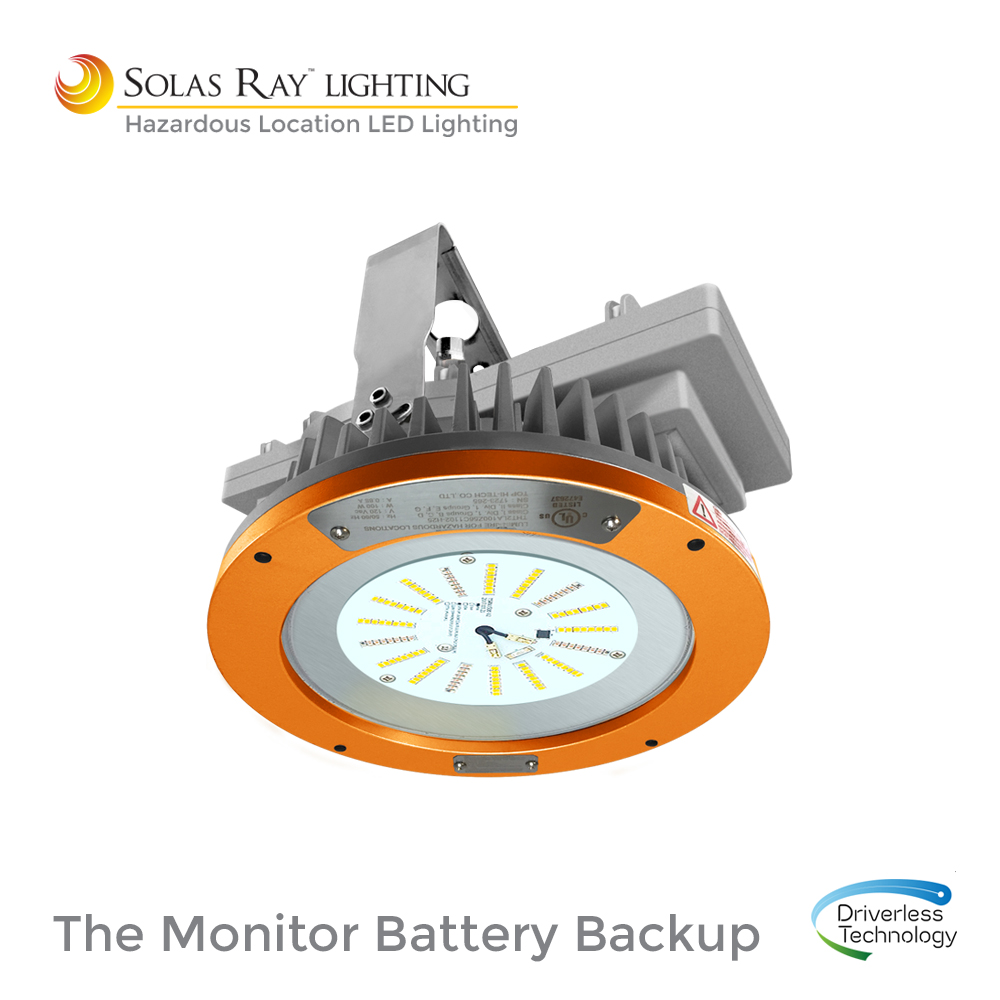

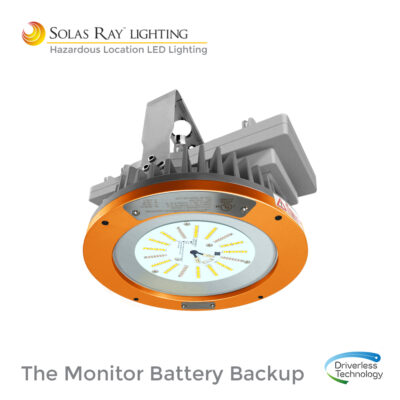

HTR9-BB Series – The Monitor with Battery Backup
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598
NEC and CEC (HTR91BB)
• Class I Div 1 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G
• Class III
NEC and CEC (HTR92BB)
• Class I Div 2 – Groups A, B, C, D
• RoHS
• IP67
• NEMA 6
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Up to 120 minutes battery backup with UL 2054 certified Li-ion battery.
• Vibration / anti-resonance design.
• Crush resistant with high impact resistance.
• Marine grade housing / salt water spray resistant.
• Atmospheric pressure tolerance up to 10 meter depth.
• Factory installed stainless steel cable gland included standard. Precision machined and torque tested.
• IP67 rating.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277vAC |
| Wattage | 60w System (40w LED) |
| Color Temp | 3000 / 5000 Kelvin |
| Housing | Coated copper free aluminum alloy |
| Color | Gray / High Visibility Orange |
| Lens | Tempered glass |
| Lifetime | 60,000 hrs L70 |
| CRI | ≥ 80 (3000K) / ≥70 (5000K) |
| Beam Angles | X-110° / Y-110° |
| Power Factor | cos ≥ 0.9 |
| Protection | IP67 / NEMA 6 |
| Warranty | 1 Year Limited Warranty |
LUMENS

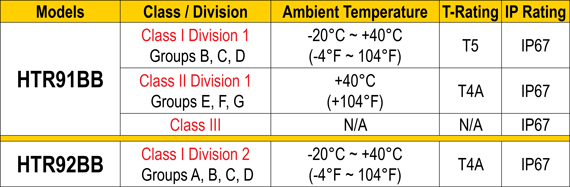

CLASS / DIVISION / TEMPERATURE
See specification sheet for product ordering selection, mounting options, weights and dimensions.
