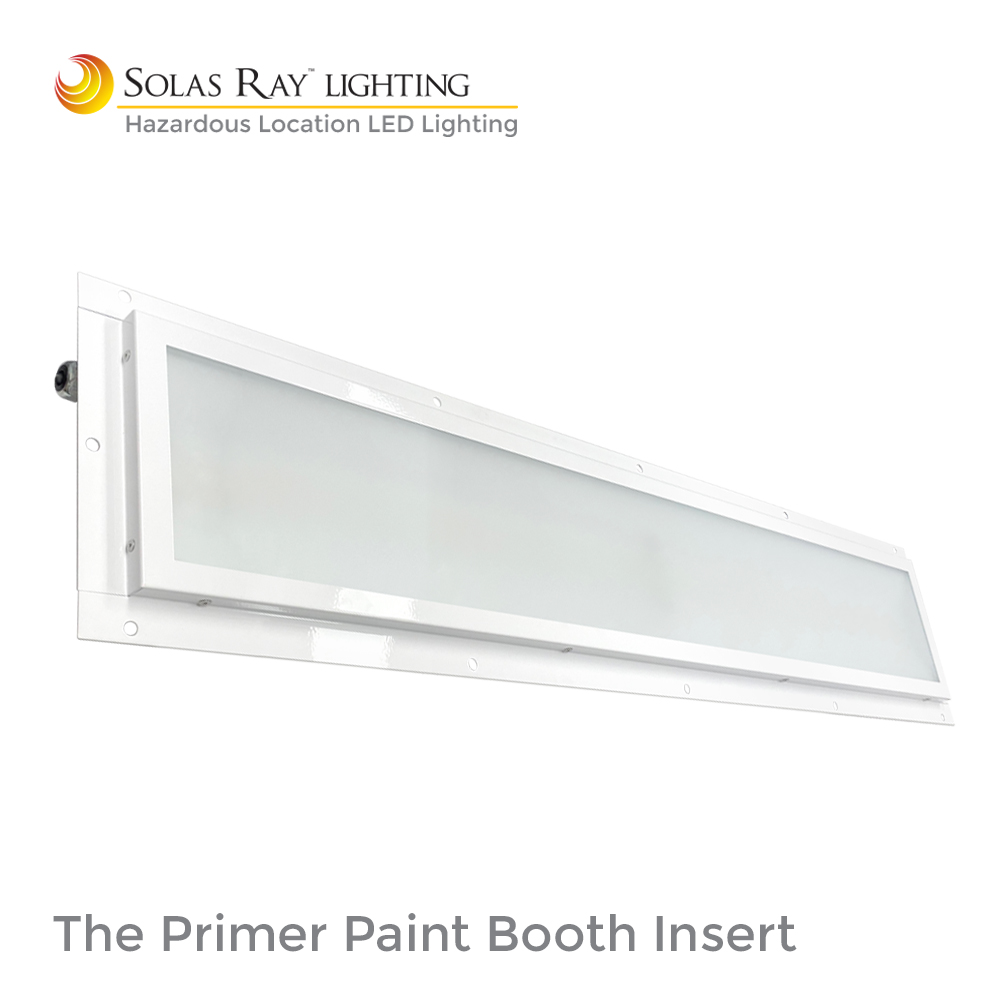

RLTS Series – The Primer HazLoc Paint Booth Light
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598
NEC and CEC
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 2 – Groups F, G
• CSA C22.2 No. 137.0
• CSA C22.2 No. 250.0
KEY FEATURES AND BENEFITS
• Factory Sealed and enclosed design requires no reed switch (interlock).
• Provides more vibrant color and true color rendering when compared to fluorescent lamps offering a fuller color spectrum where color match is important.
• Meets or exceeds NFPA, OSHA and NEC.
• 0-10V dimming included standard.
• Retrofit kits available.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120vAC / 277vAC |
| Ambient Temperature | -20°C (-4°F) to 40°C (104°F) |
| T-Rating | T4 |
| Housing | 22 Gauge Steel |
| Color | White – Powder Coated |
| Lens | Flat Diffused Polycarbonate |
| Wattage | 45w / 65w |
| Lifetime | Up To 100,000 hrs |
| CRI | >80 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 45w | 4,000 lumens |
| 65w | 8,000 lumens |
