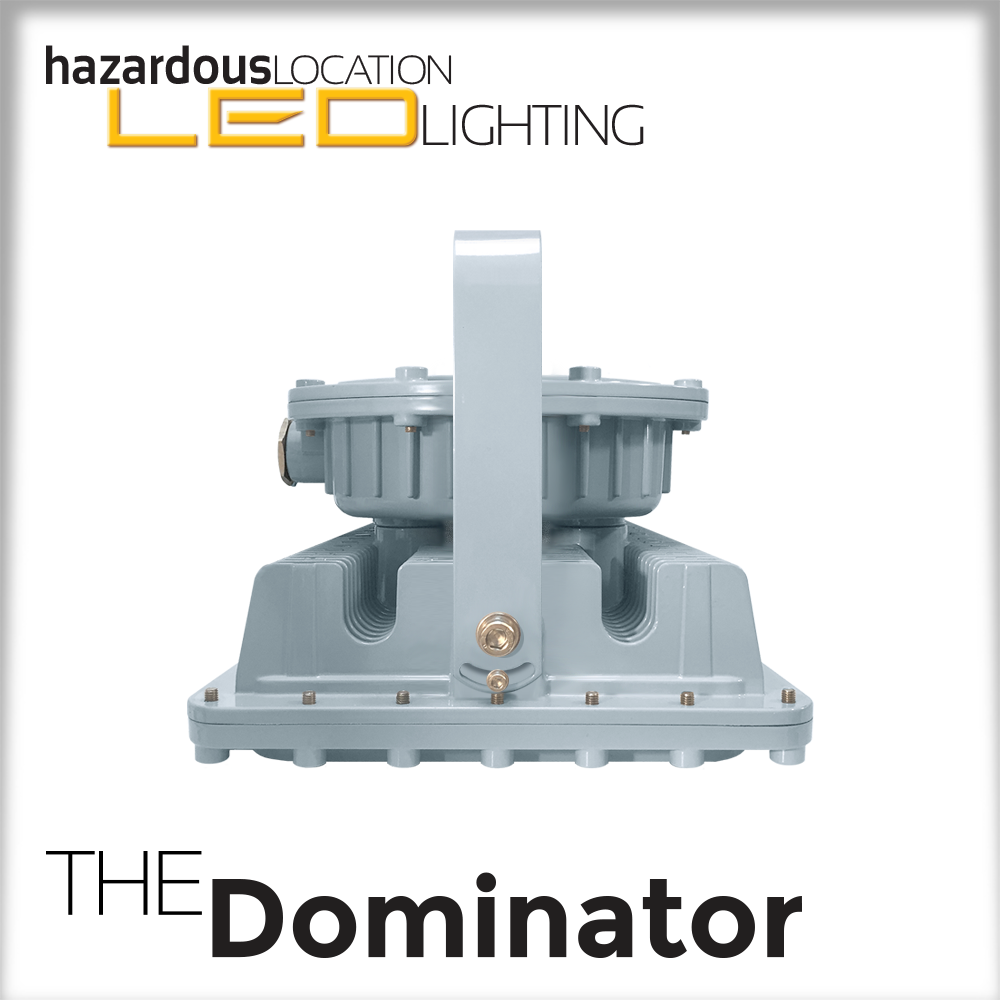

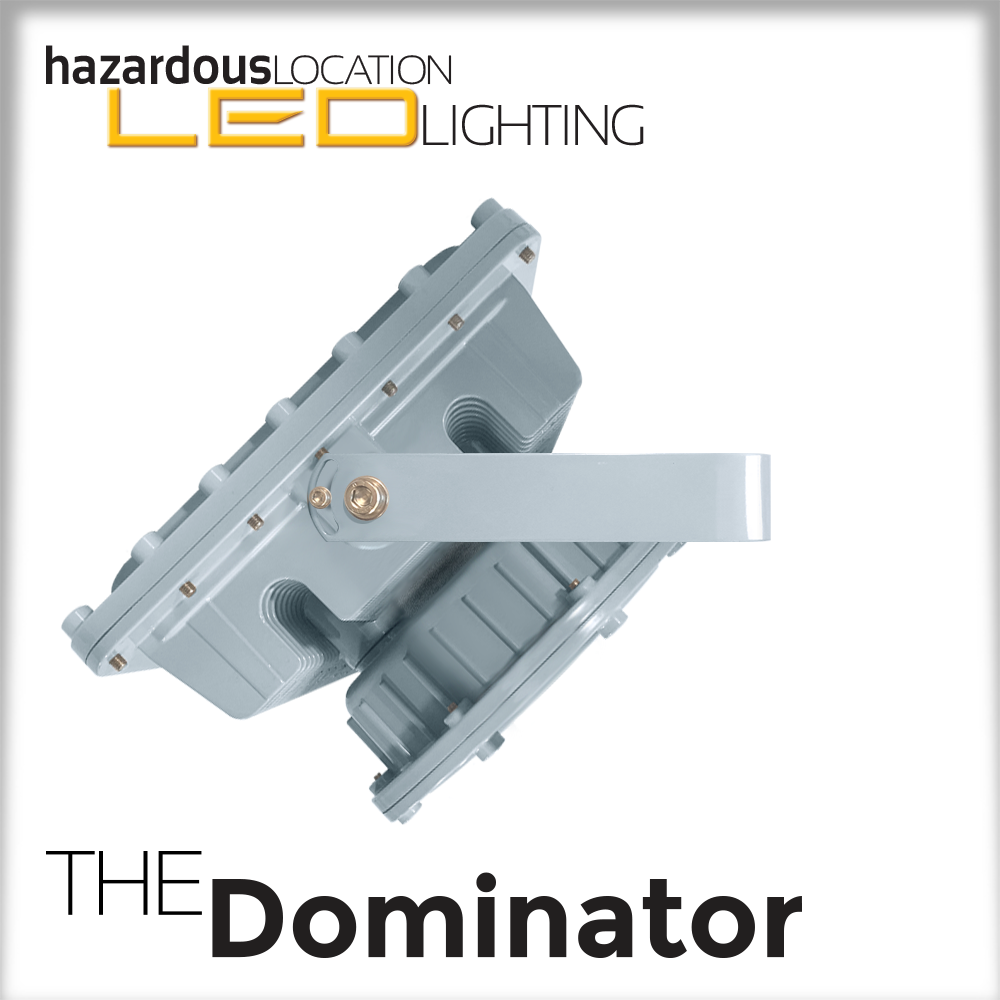

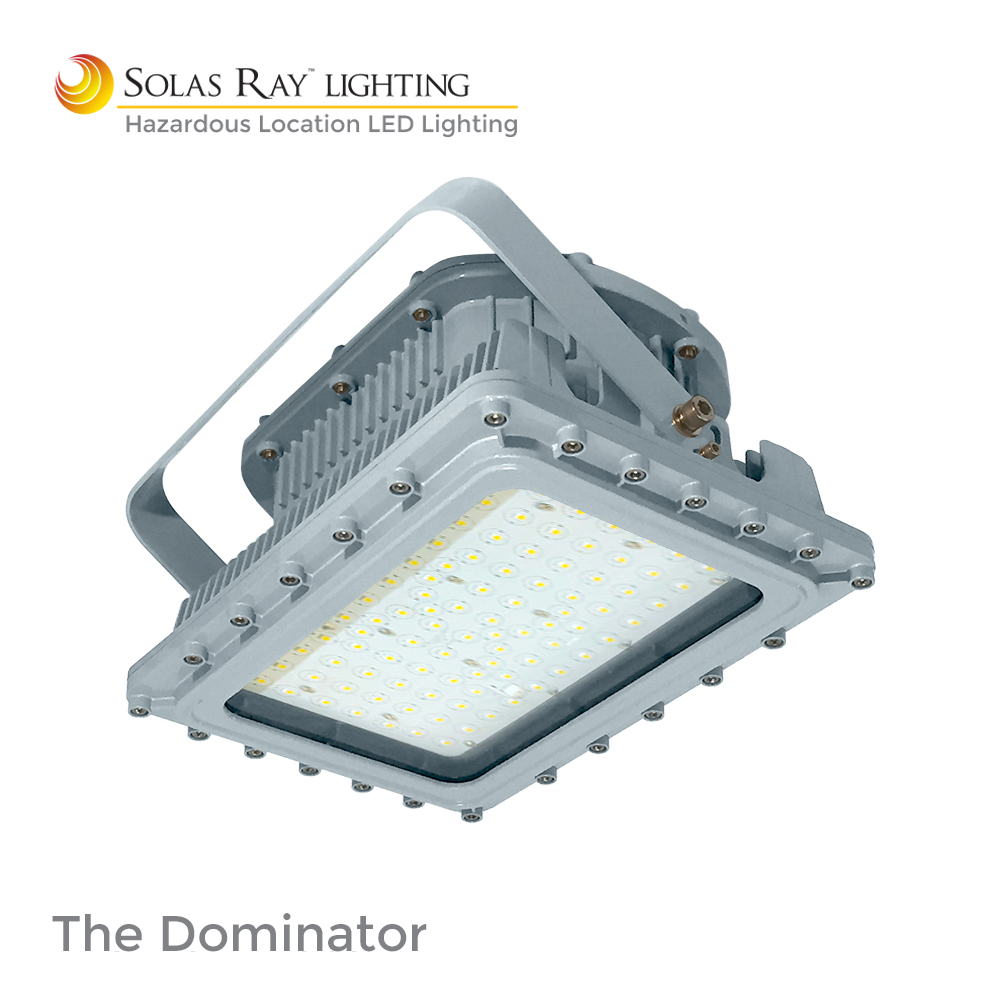

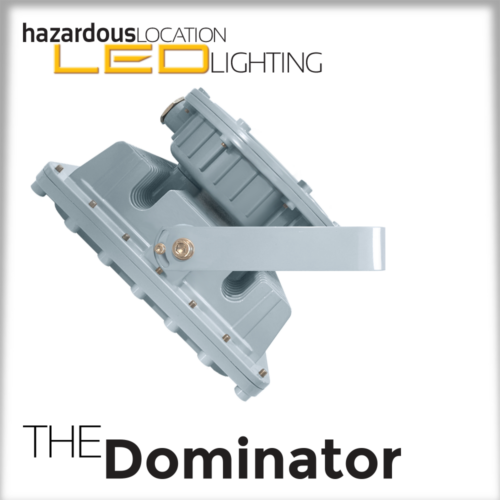

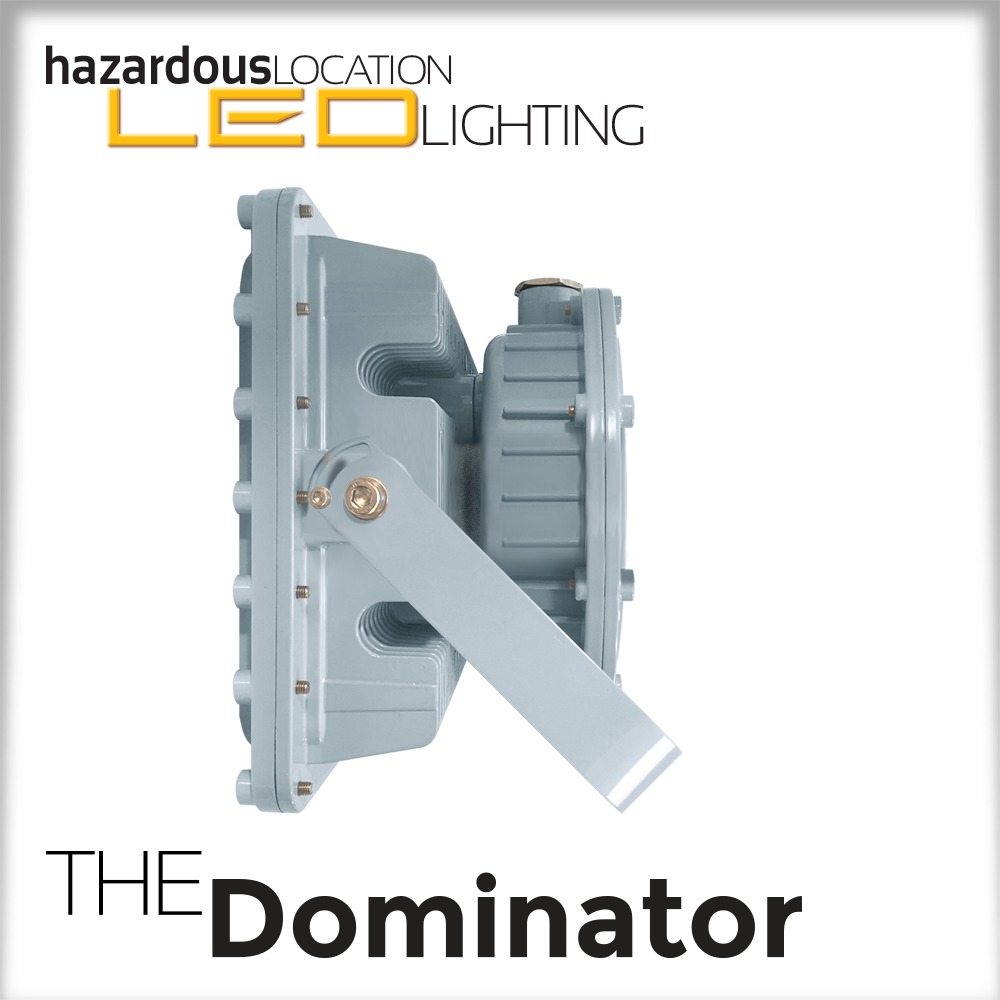

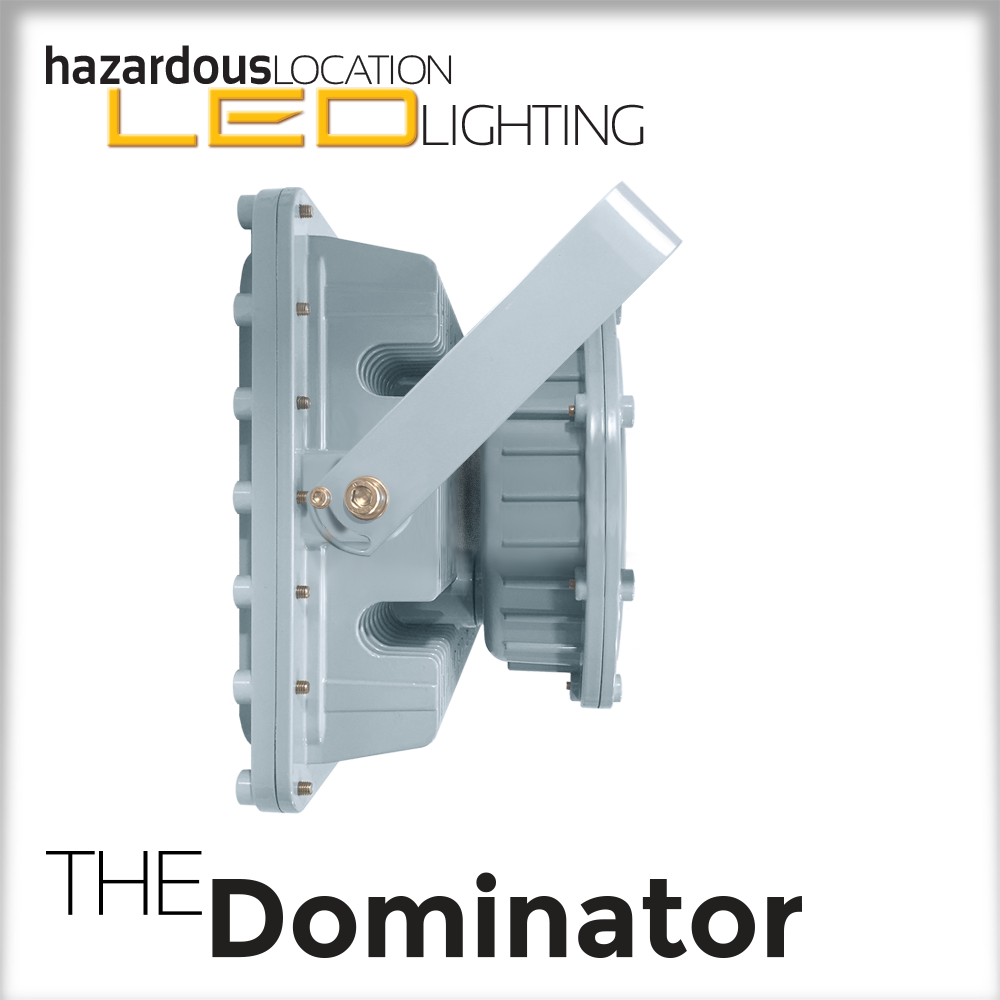

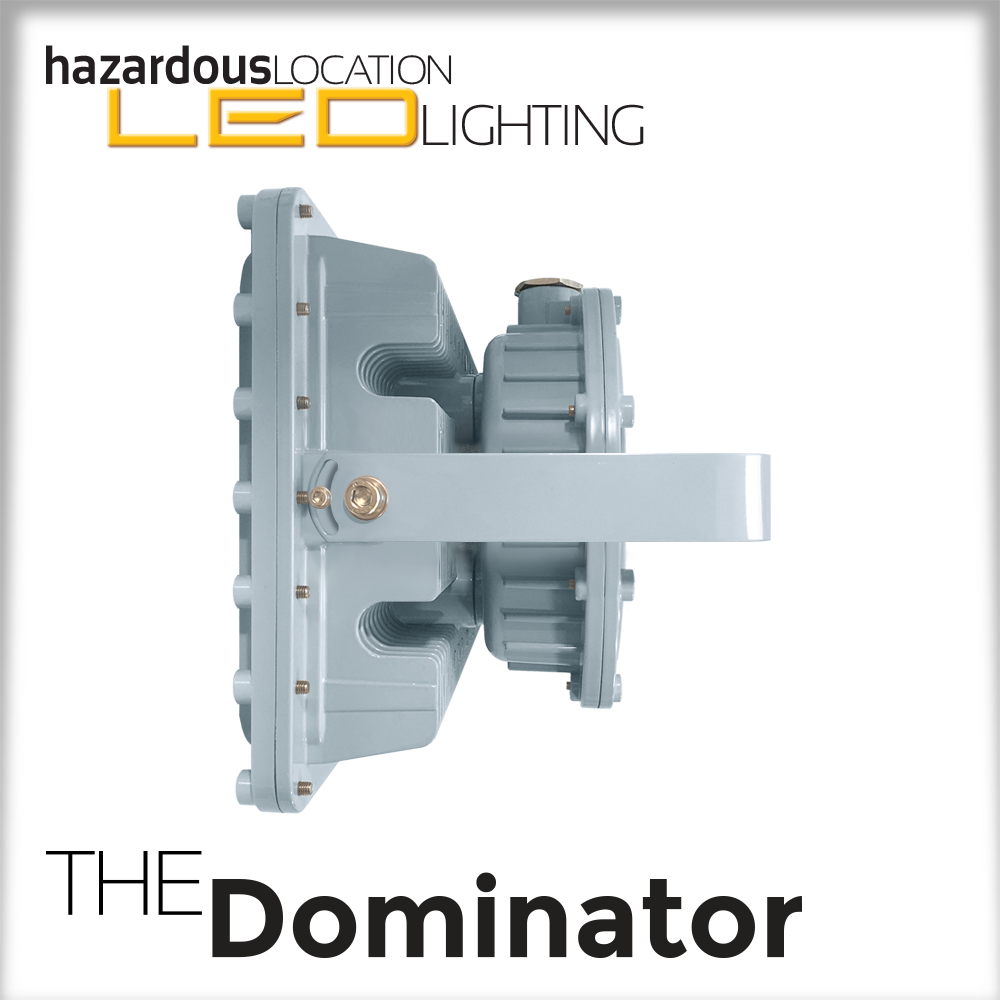

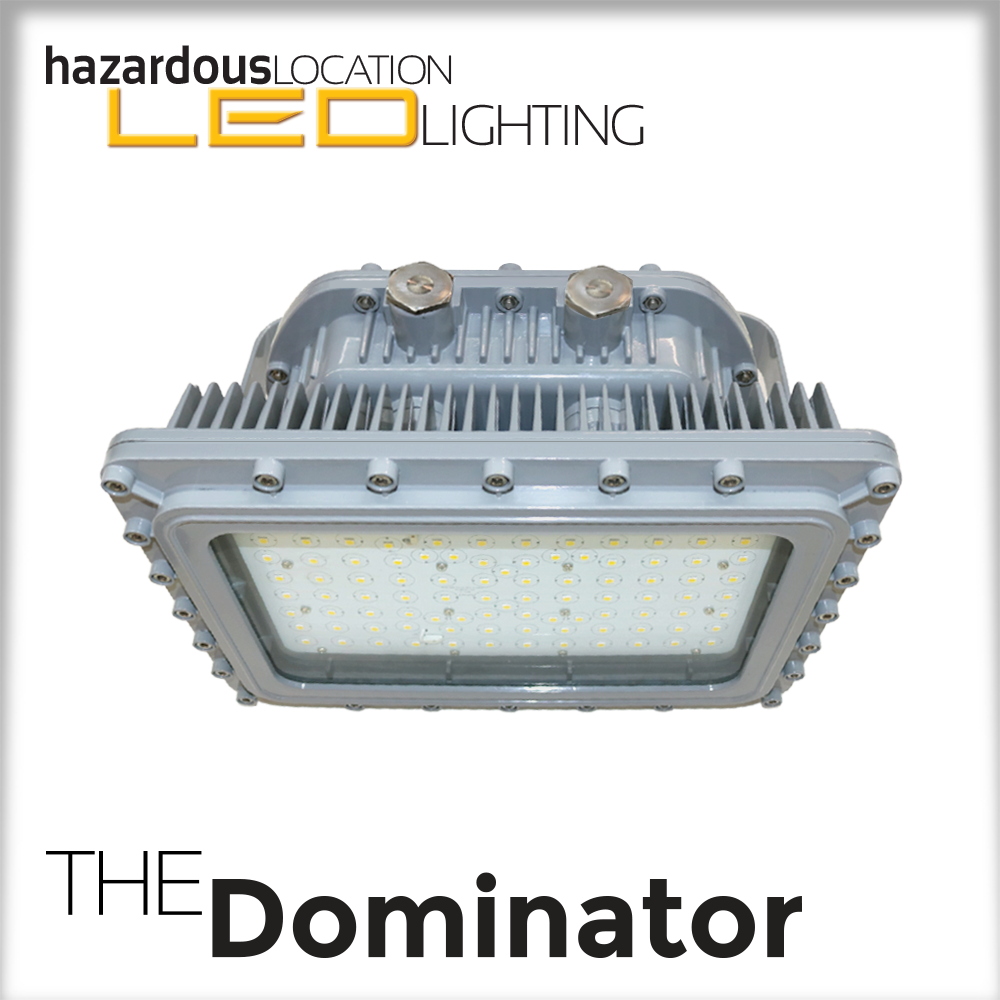

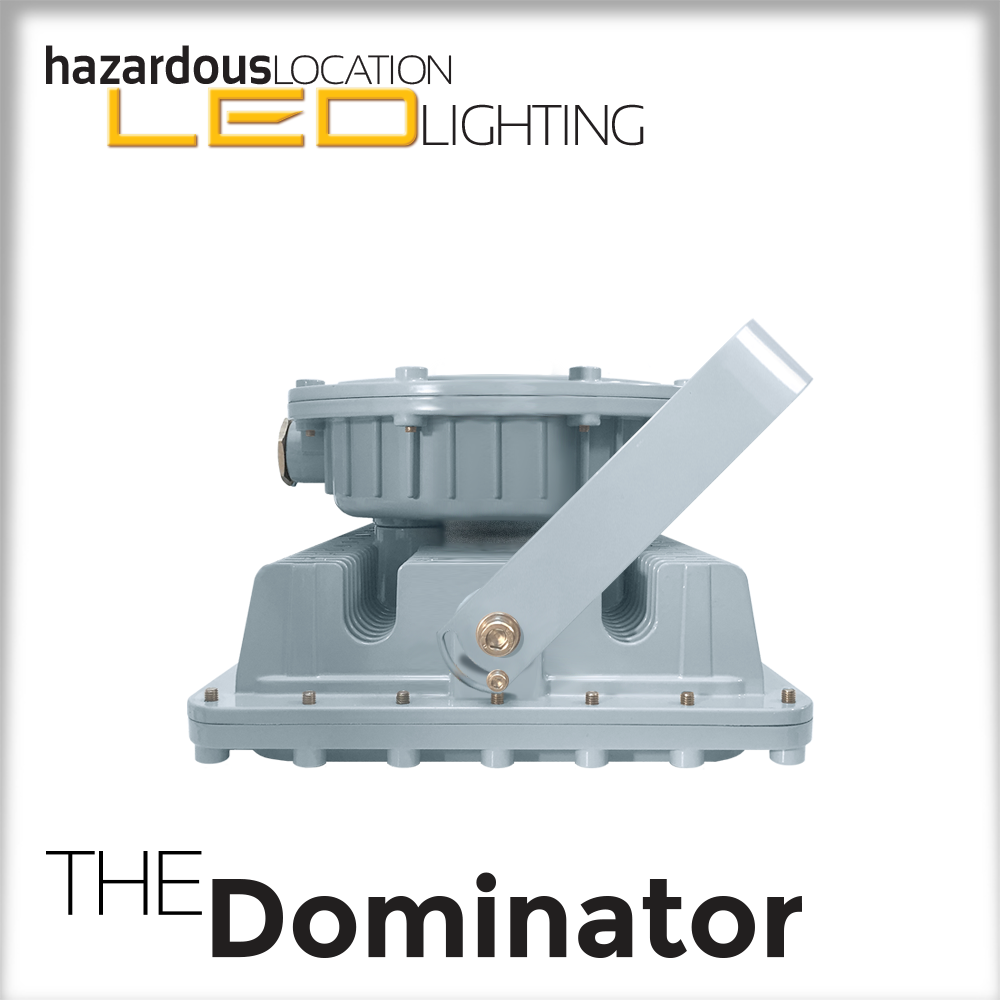

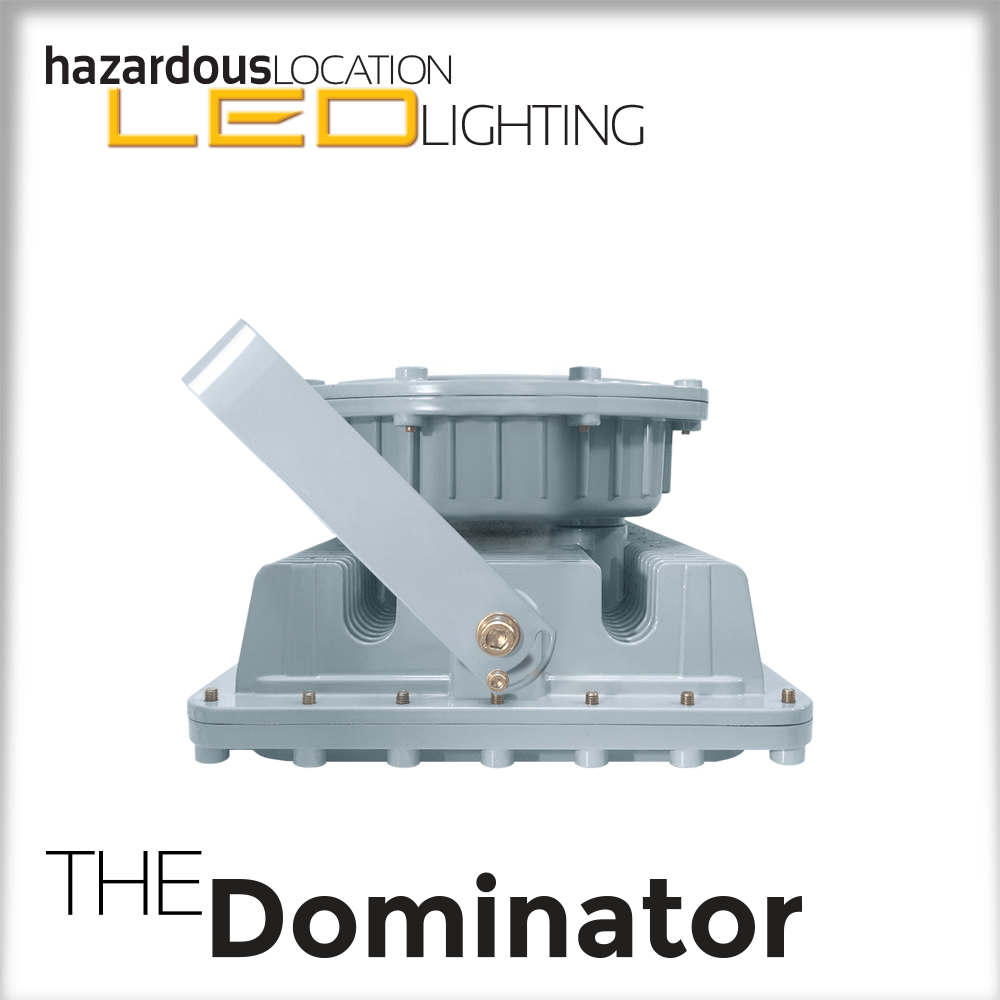

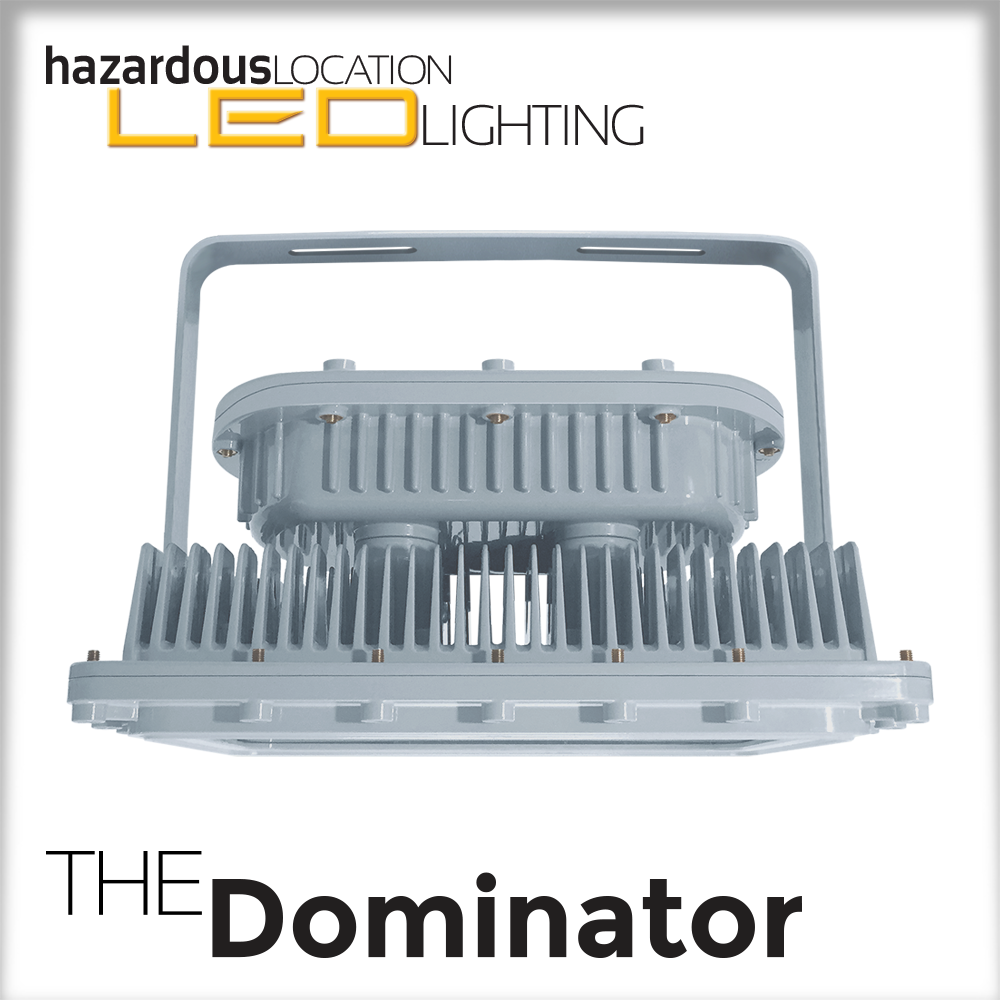

HJDS Series – The Dominator
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 A
NEC and CEC
• Class I, Div 1 – Groups C, D
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III
• ETL
• IP66
• ABS
• IK10
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Corrosion proof – Coated aluminum alloy (copper free) housing.
• Gray nylon corrosion resistant powder coat.
• 20w / 40w / 60w / 80w models are pendant mount ready (3/4” npt.)
• Marine and wet location ready.
• Paint / Spray listed for use in paint or powder-coat booths.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277vAC / 200-480vAC |
| Wattage | 20w / 40w / 60w / 80w / 100w / 150w / 200w |
| Ambient Temperature | -40°C to 55°C (131°F) |
| T-Rating | T5 |
| Housing | Coated copper free aluminum alloy |
| Color | Gray |
| Lens | Flat tempered glass |
| Efficacy | >140 lm/w |
| Lifetime | 70,000 hrs L70 |
| CRI | >70 cool white |
| Color Temp | 4000 / 5000 Kelvin |
| Beam Angle | 40° / 60° / 90° / 120° (standard) |
| Power Factor | >0.90 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Watts | 20w | 40w | 60w | 80w | 100w | 150w | 200w |
| Lumens | 2,800 | 5,600 | 8,400 | 11,200 | 14,000 | 21,000 | 28,000 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
