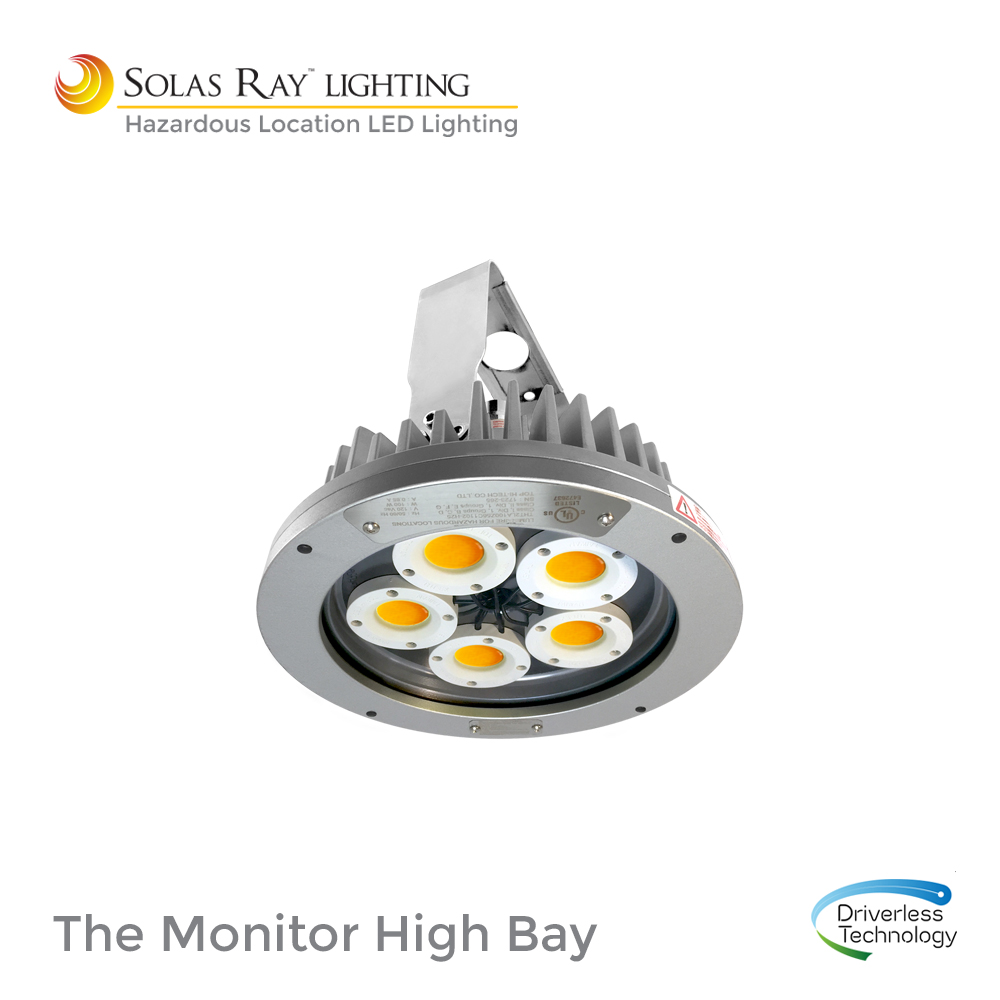

The Monitor HazLoc S and C Series Bay Light

The MONITOR S Series – HTR91S / HTR92S

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires
NEC and CEC
• Class I Div 1 – Groups B, C, D │ Class I Div 2 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G

• Vibration / Anti-Resonance Design.
• Crush Resistant with High Impact Resistance.
• Marine Grade Housing / Salt Water Spray Resistant.
• Atmospheric Pressure Tolerance up to 10 Meter Depth.
• Factory Installed Cable Gland is Standard.
• Rated IP67.

Kelvin Based Lumen Output
65 Watts 75 Watts 95 Watts
3000K 5,520 lm 7,360 lm 9,200 lm
5000K 6,000 lm 8,000 lm 10,000 lm

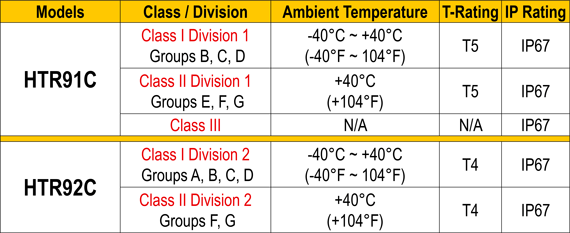

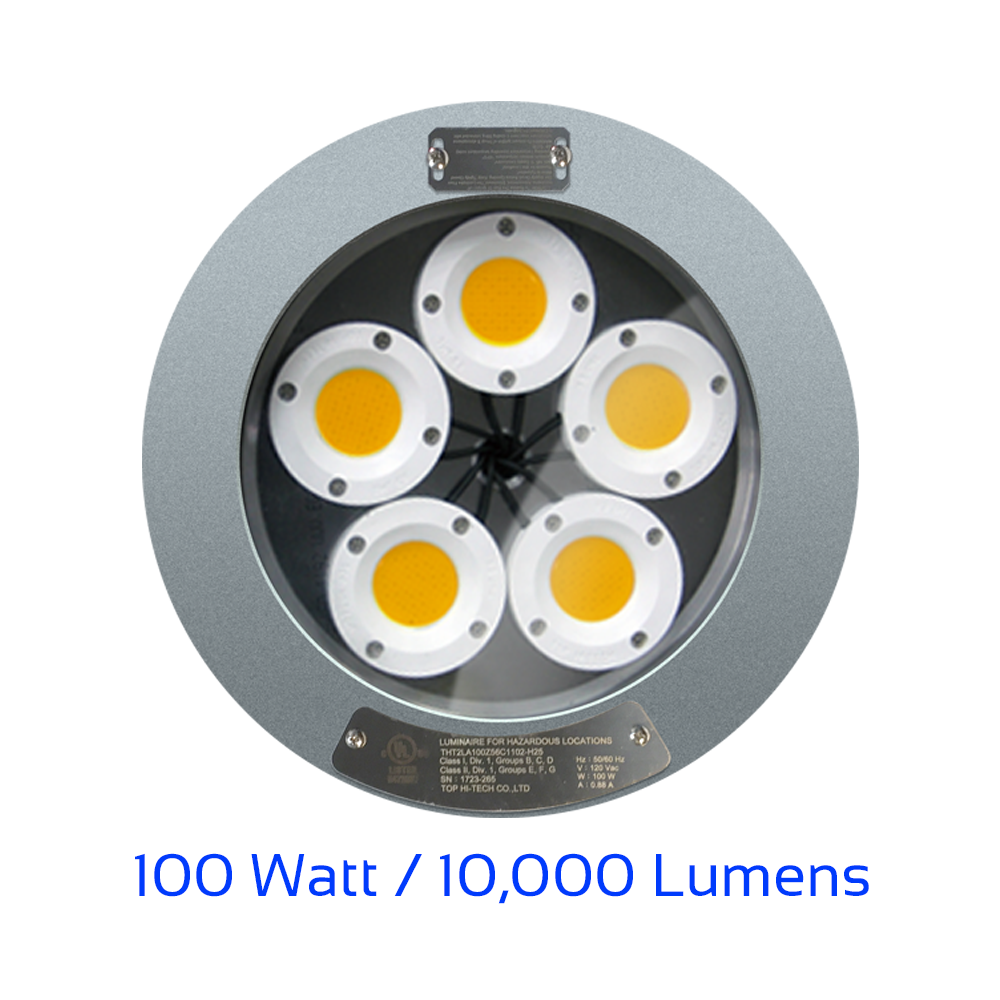

The MONITOR C Series – HTR91C / HTR92C

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires
NEC and CEC
• Class I Div 1 – Groups B, C, D │ Class I Div 2 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G │ Class II Div 2 – Groups F, G

• Vibration / Anti-Resonance Design.
• Crush Resistant with High Impact Resistance.
• Marine Grade Housing / Salt Water Spray Resistant.
• Atmospheric Pressure Tolerance up to 10 Meter Depth.
• Factory Installed Cable Gland is Standard.
• Rated IP67.

Kelvin Based Lumen Output

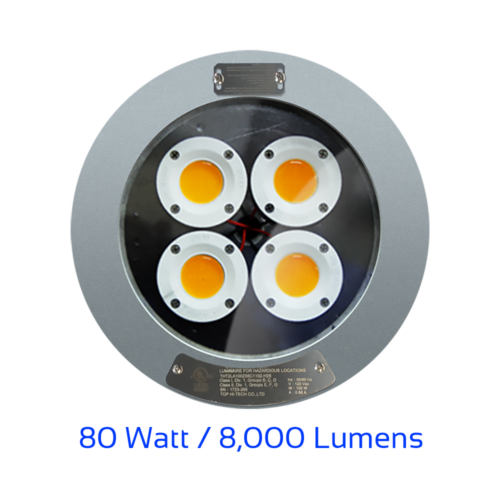

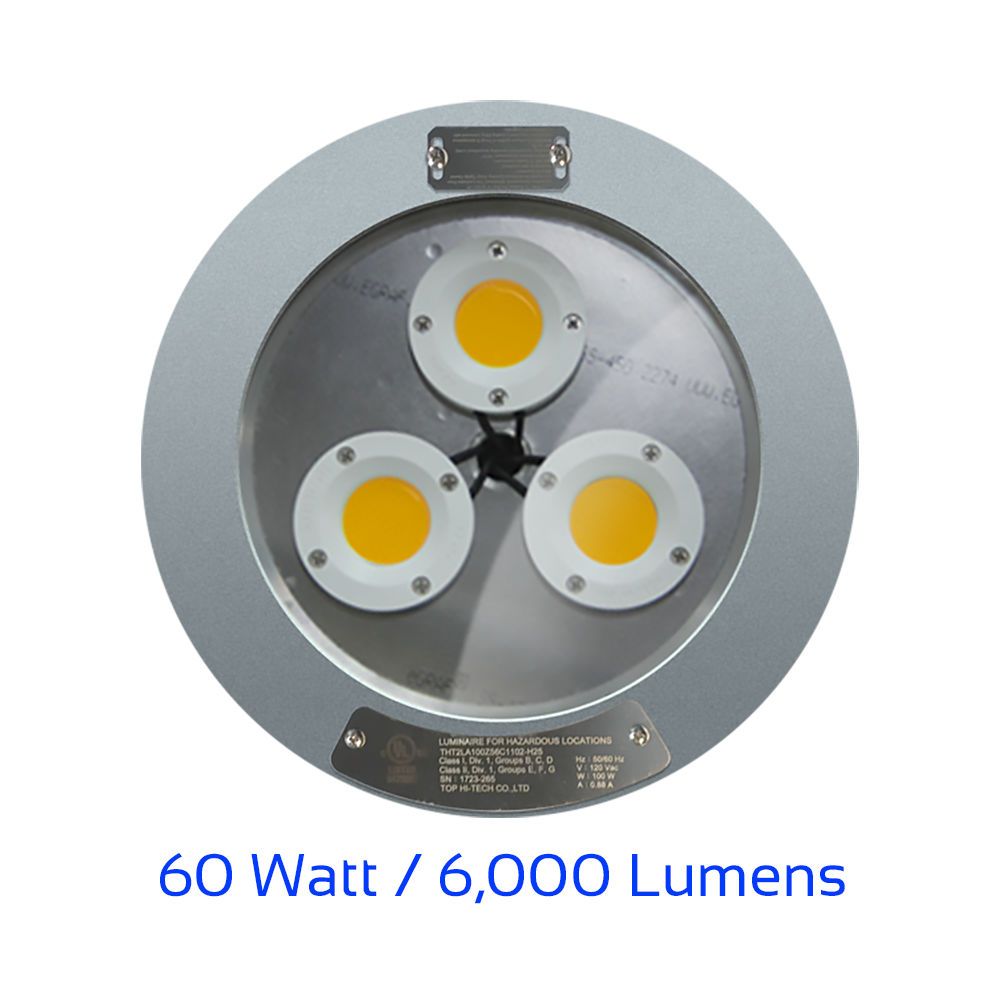

60 Watts 80 Watts 100 Watts
3000K 5,520 lm 7,360 lm 9,200 lm
5000K 6,000 lm 8,000 lm 10,000 lm





HTR91C-060-50-120-X    HTR92S-065-50-120-X
HTR91C-080-50-120-X    HTR92S-075-50-120-X
HTR91C-100-50-120-X     HTR92S-095-50-120-X
HTR92C-060-50-120-X
HTR92C-080-50-120-X
HTR92C-100-50-120-X
