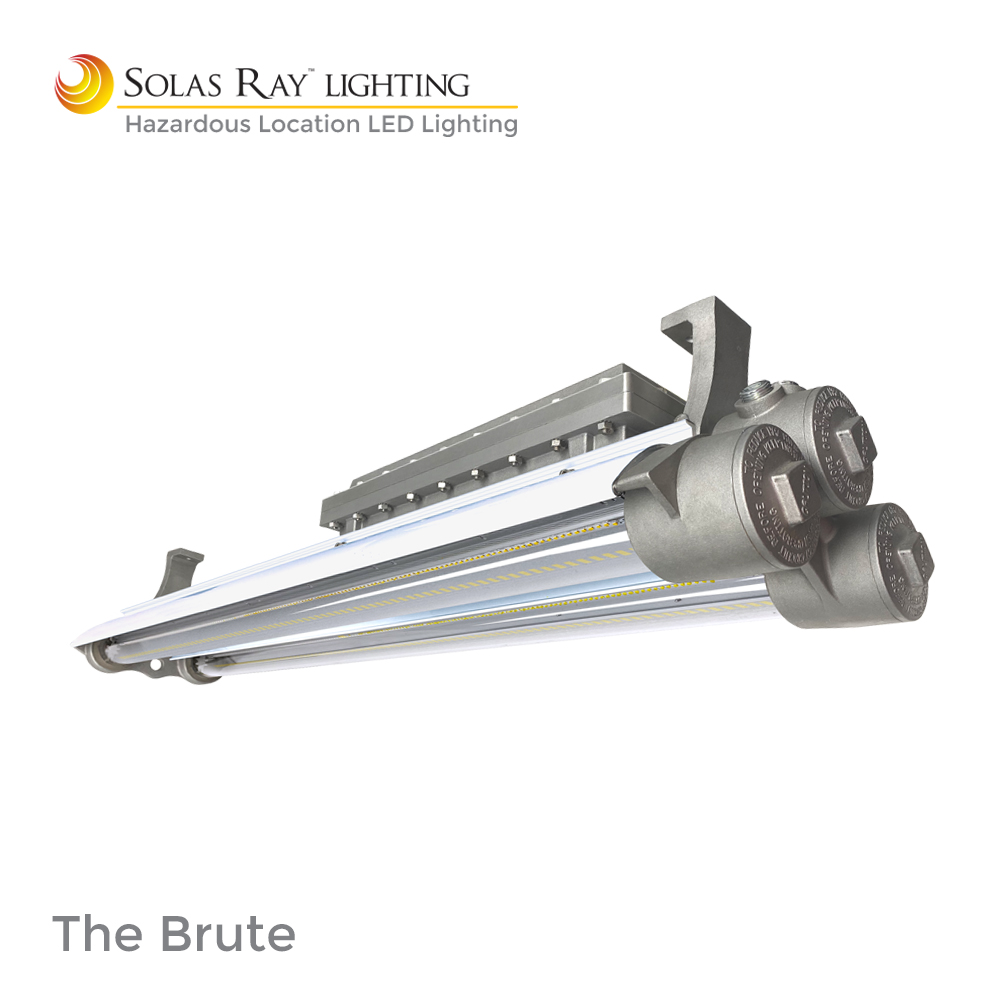

HBRL Series – The Brute
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL924 | UL1598 | UL1598A
NEC and CEC
• Class I, Div 1 – Groups C, D
• Class II, Div 1 – Groups E, F
• Class II, Div 2 – Groups E, F, G
• Class III
• IP66
• NEMA 4X
• ABS
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Ambient temperature capabilities: -20°C to 40°C (104°F)
• Corrosion resistant, marine grade, copper free aluminum housing.
• Heavy gauge extruded reflectors with high gloss reflective finish.
• Impact and heat resistant glass tubes.
• Marine and wet location ready.
• Emergency battery backup option available (factory sealed in driver housing).
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277vAC |
| Wattage | 40w / 80w / 105w |
| Color Temp | 3000 / 4000 / 5000 Kelvin |
| CRI | >80 |
| Housing | Corrosion resistant, marine grade, copper free aluminum |
| Color | Gray |
| Lens | Tempered glass tubes |
| Ambient Temperature | -20°C (-4°F) to 40°C (104°F) |
| T-Rating | T4 |
| Power Factor | >0.95 |
| Efficacy | 105 lm/w |
| Lifetime | 50,000 hrs rated life |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 40w | 80w | 105w |
| 4,200 | 8,400 | 11,000 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
