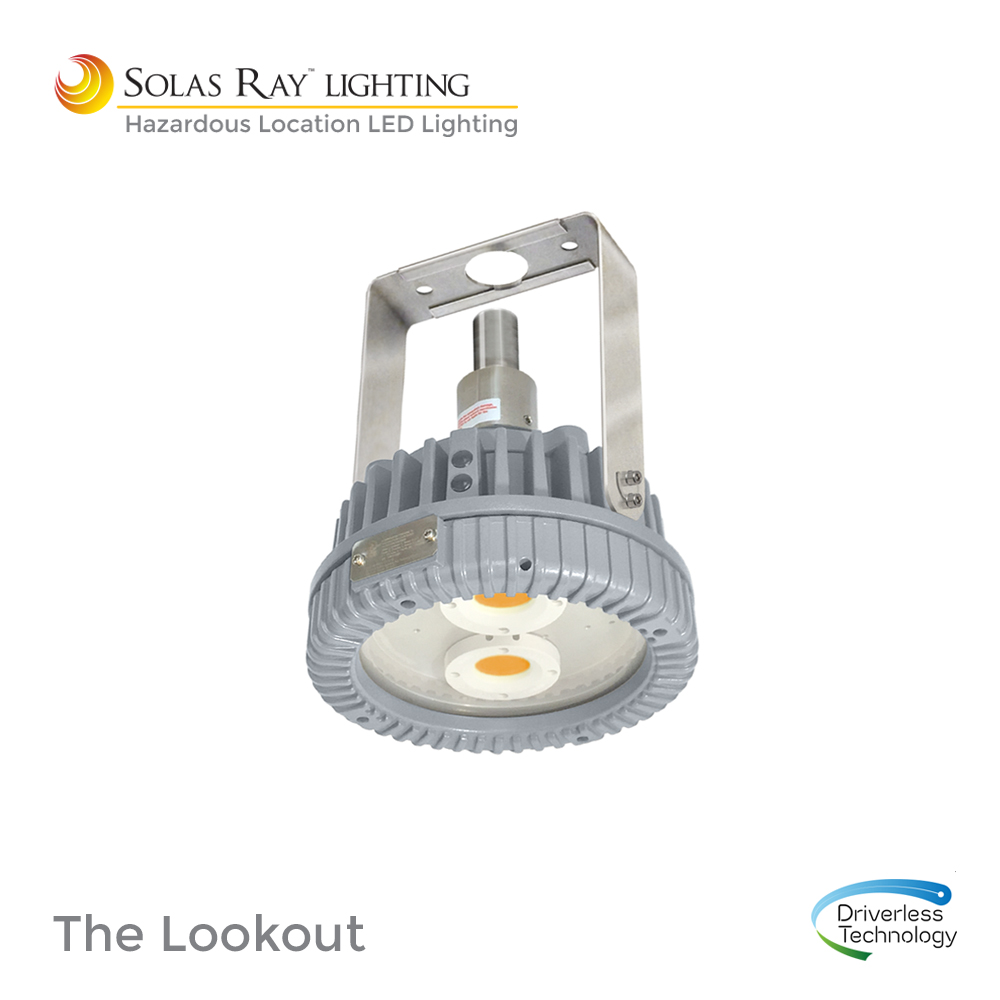

The Lookout HazLoc Light

The LOOKOUT S Series – HTR7S1 / HTR7S2

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires
NEC and CEC
• Class I Div 1 – Groups B, C, D │ Class I Div 2 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G
• Vibration / Anti-Resonance Design.
• Crush Resistant with High Impact Resistance.
• Marine Grade Housing / Salt Water Spray Resistant.
• Atmospheric Pressure Tolerance up to 10 Meter Depth.
• Factory Installed Cable Gland is Standard.
• Rated IP67.

Kelvin Based Lumen Output
40 Watts 60 Watts
3000K 3,534 lm 5,300 lm
5000K 3,800 lm 5,700 lm









The LOOKOUT C Series – HTR7C1 / HTR7C2

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires
NEC and CEC
• Class I Div 1 – Groups B, C, D │ Class I Div 2 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G
• Vibration / Anti-Resonance Design.
• Crush Resistant with High Impact Resistance.
• Marine Grade Housing / Salt Water Spray Resistant.
• Atmospheric Pressure Tolerance up to 10 Meter Depth.
• Factory Installed Cable Gland is Standard.
• Rated IP67.

Kelvin Based Lumen Output
40 Watts 60 Watts
3000K 3,534 lm 5,300 lm
5000K 3,800 lm 5,700 lm









HTR7S1-040-50-120-X  HTR7C1-040-50-120-X
HTR7S1-060-50-120-X  HTR7C1-060-50-120-X
HTR7S2-040-50-120-X  HTR7C2-040-50-120-X
HTR7S2-060-50-120-X  HTR7C2-060-50-120-X
