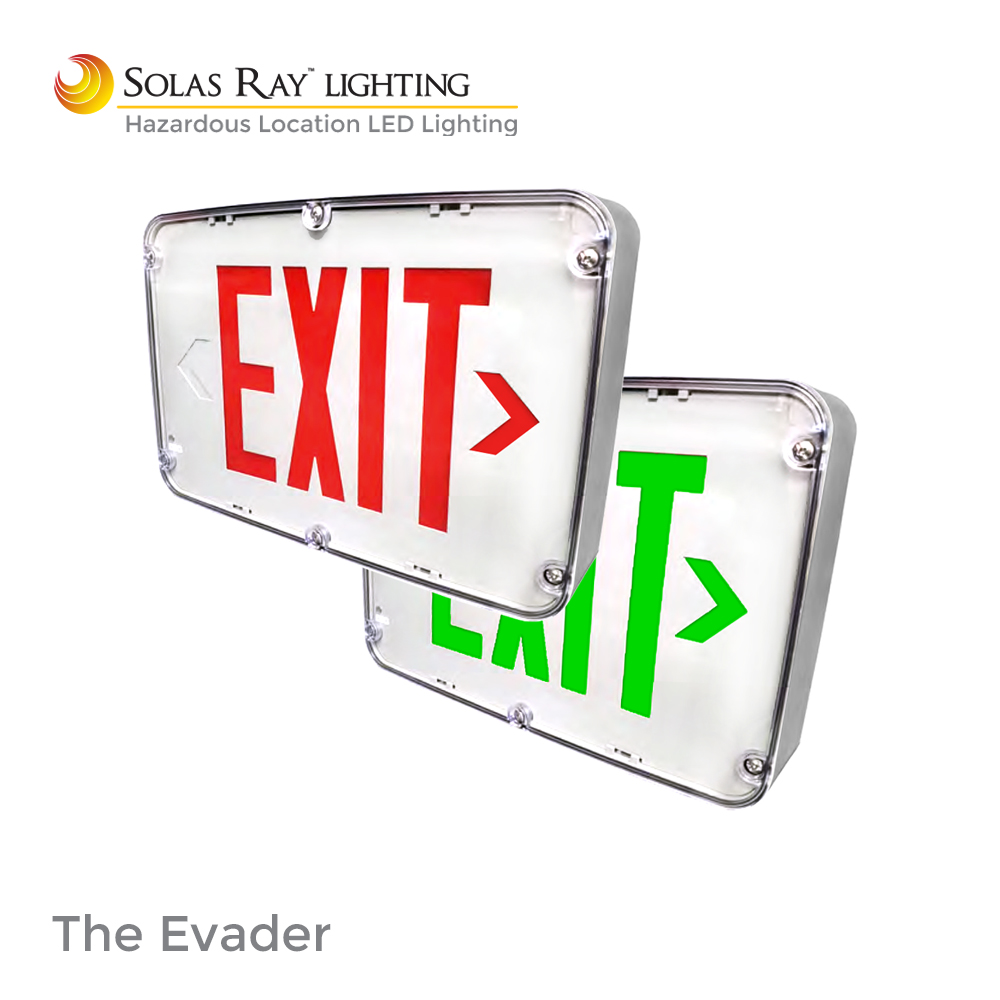

HLWLEZU Series – The Evader HazLoc Exit Sign

CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations | UL 924 │ UL1598 – Luminaires

NEC and CEC
• Class I Div 2 – Groups A, B, C, D

• IP66
• NFPA101

KEY FEATURES AND BENEFITS

• Red or green lettering options.
• Single or double faced options.
• EZ snap-out Chevron directional indicators.
(The following specifications apply to battery equipped “EM” models only)
• Bi-color LED indicator light alerts occupant on battery condition.
• Charge rate/power “ON” LED indicator light and magnetic test switch
• 4.8V long-life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery
to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to
recharge a discharged battery in 24 hours.

DOWNLOADS







SPECIFICATIONS

Voltage 120vAC / 277vAC
Wattage 3w
Input Amps 0.03 – 120vAC / 0.02 – 277vAC
Housing Reinforced polycarbonate
Color Gray
Letter Colors Red or green
Lens UV stabilized polycarbonate
Lifetime 60,000 hrs L70
CRI >70 cool white
Ambient Temperature -20°C to 50°C(122°F)
Hardware  Tamper proof access (optional)
Warranty 5 Year Limited Warranty

See specification sheet for product ordering selection, mounting options, weights and dimensions.
