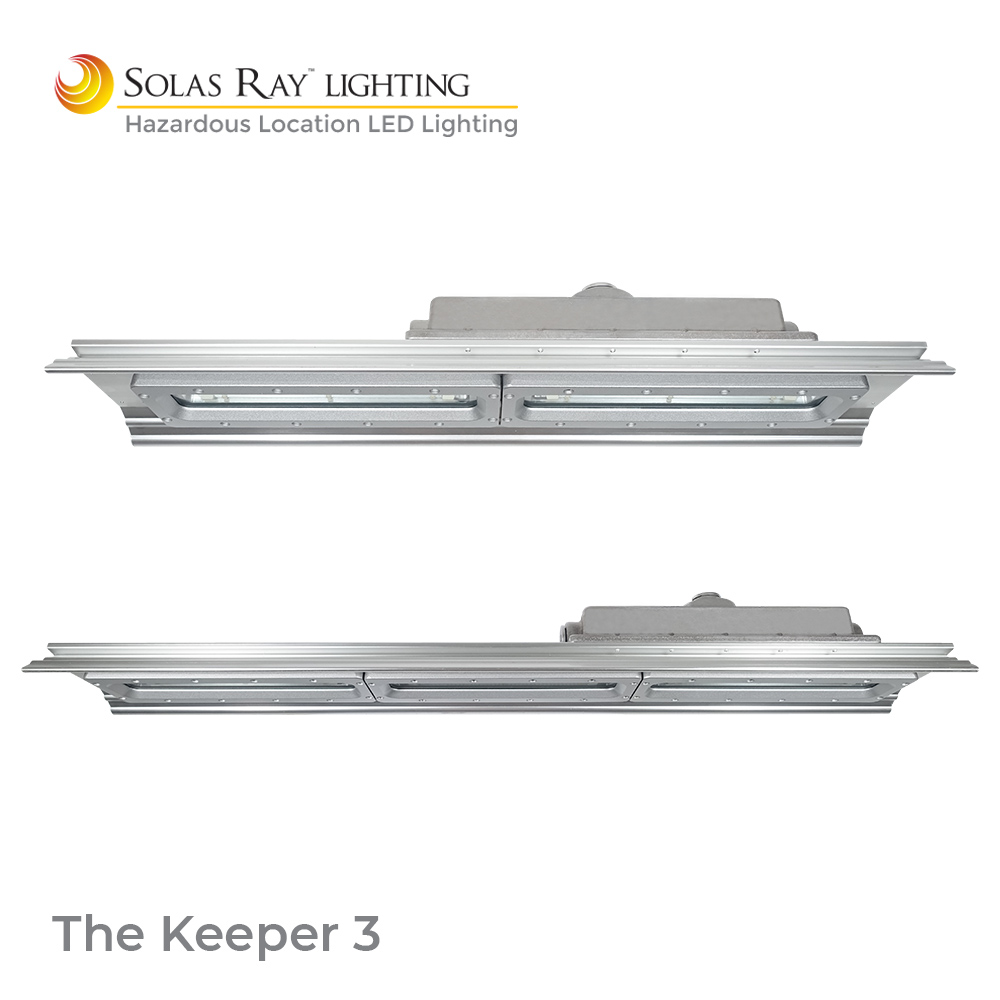

Linear CID1 LED Light with Emergency Battery Option
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598
NEC and CEC
• Class I, Div 1 – Groups B ,C, D
• IP67
• NEMA 6
• RoHS Compliant
• CSA C22.2 137.0
• CE
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Class I, Division 1 hazardous rated linear fixture.
• Up to 120 minute integrated emergency battery backup available.
• 2 or 3 window design.
• Durable aluminum alloy enclosure with tempered glass lenses.
• IP67 and Nema 6 rated.
DOWNLOADS
SPECIFICATIONS
| Voltage |
120 – 277 VAC |
| Wattage W/O Battery |
80W / 100W / 120W / 135W / 150W / 165W / 180W / 200W |
| Wattage With Battery |
140W / 155W / 170W |
| Color Temp |
3000 / 5000 Kelvin |
| Housing |
Aluminum Alloy |
| Color |
Gray |
| Lens |
Tempered glass |
| Lifetime |
60,000 hrs L70 |
| CRI |
≥ 80 (3000K) / ≥70 (5000K) |
| Beam Angles |
X-116° / Y-114° |
| Power Factor |
cos ≥ 0.9 |
| Protection |
IP67 / NEMA 6 |
| Entrance Thread |
1 x 3/4” |
| Warranty |
5 Year Limited Warranty |
LUMENS
| Kelvin |
80W |
100W |
120W |
135W |
| 3000K |
10,400 |
13,000 |
15,600 |
17,550 |
| 5000K |
11,200 |
14,000 |
16,800 |
18,900 |
| Kelvin |
150W |
165W |
180W |
200W |
| 3000K |
19,500 |
21,450 |
23,400 |
26,000 |
| 5000K |
21,000 |
23,100 |
25,200 |
28,000 |
LUMENS (Battery Equipped Models)
| Kelvin |
140W |
155W |
170W |
| 3000K |
18,200 |
20,150 |
22,100 |
| 5000K |
19,600 |
21,700 |
23,800 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires | UL 8750
NEC and CEC (2′ 40w / 2′ 60w / 4′ 40w / 4′ 80w /4′ 120w models)
• Class I Div 2 – Groups A, B, C, D
• Class II Div 2 – Groups F, G
• Class III
NEC and CEC (2′ 120w / 2′ 150w / 4′ 250w / 4′ 300w models)
• Class II Div 2 – Groups A, B, C, D
• CSA C22.2 No. 137-18
• CSA C22.2 No. 250.0
• CSA C22.2 No. 250.13
• IP67
• NEMA 6
• ROHS Compliant
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• SMD – driver on board LED technology for enhanced reliability and thermal resistance.
• Crush resistant with high impact resistance.
• Vibration / anti-resonance design.
• Marine grade housing / salt water spray resistant.
• Atmospheric pressure tolerance up to 32.8 ft (10 m) depth.
• Factory installed stainless steel cable gland included
standard. Precision machined and torque tested.
• 2’ and 4’ lengths available
DOWNLOADS
SPECIFICATIONS
| Voltage |
120vAC / 277vAC / 480vAC(80w model only) |
| Housing |
Coated copper free aluminum alloy |
| Color |
Gray |
| Lens |
Tempered glass |
| Wattage |
40w / 60w / 80w / 120w / 150w / 240w / 300w |
| Lifetime |
60,000 hrs L70 |
| CRI |
≥ 80 (3000K) / ≥70 (5000K/6000K) |
| Beam Angles |
X-116° / Y-114° |
| Power Factor |
cos ≥ 0.9, cos ≥ 0.87 (480vAC) |
| Color Temp |
3000 / 5000 / 6000 Kelvin |
| Weight |
2’ – 12.1 lb (without mount) 4’ – 29.3 lb (without mount) |
| Protection |
IP67 / NEMA 6 |
| Warranty |
5 Year Limited Warranty |

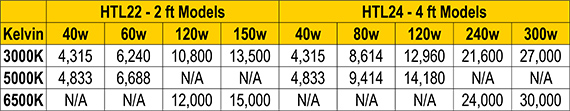

LUMENS

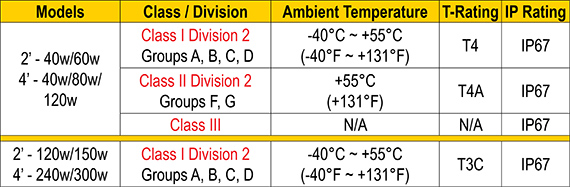

CLASS / DIVISION / TEMPERATURE

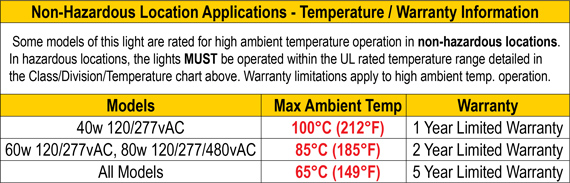

HIGH AMBIENT TEMPERATURE APPLICATIONS
See specification sheet for product ordering selection, mounting options, weights and dimensions.
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires | UL 8750
NEC and CEC (40w Models)
• Class I Div 1 – Groups B, C, D
• Class II Div 2 – Groups F, G
• Class III
NEC and CEC (60w Models)
• Class I Div 1 – Groups B, C, D
• CSA C22.2 No. 137-M1981
• CSA C22.2 No. 30-M1986
• CSA C22.2 No. 25-1996
• CSA C22.2 No. 250.0
• CSA C22.2 No. 250.13
• IP67
• NEMA 6
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• SMD – Driver on Board LED technology.
• Vibration / anti-resonance design.
• Crush resistant with high impact resistance.
• Marine grade housing / salt water spray resistant.
• Atmospheric pressure tolerance up to 10 meter depth.
• Factory installed stainless steel cable gland included
standard. Precision machined and torque tested.
• IP67 rating.
DOWNLOADS
SPECIFICATIONS
| Voltage |
120vAC / 277vAC |
| Wattage |
40w / 60w |
| Color Temp |
3000 / 5000 Kelvin |
| Housing |
Coated copper free aluminum alloy |
| Color |
Gray |
| Lens |
Tempered glass |
| Lifetime |
60,000 hrs L70 |
| CRI |
≥ 80 (3000K) / ≥70 (5000K) |
| Beam Angles |
X-116° / Y-113° |
| Power Factor |
cos ≥ 0.9 |
| Protection |
IP67 / NEMA 6 |
| Warranty |
5 Year Limited Warranty |
LUMENS

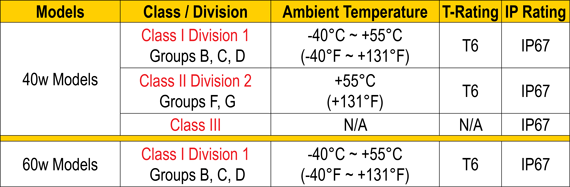

CLASS / DIVISION / TEMPERATURE
HIGH AMBIENT TEMPERATURE APPLICATIONS
Narrow Band Yellow Light (590nm) – Ultraviolet Free / No UV
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598
NEC and CEC
• Class I, Div 1 – Groups B ,C, D
• IP67
• NEMA 6
• RoHS Compliant
• CSA C22.2 137.0
• CE
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Narrow band yellow light (590nm / blocks UV wavelengths under 500nm) designed for use in semiconductor manufacturing, laboratories, health care facilities, pharmaceutical labs, and other applications where UV light would be damaging.
• Available in 2 window or 3 window configurations.
• Heavy duty aluminum housing.
DOWNLOADS
SPECIFICATIONS
| Voltage |
120 VAC, 277 VAC |
| Wattage |
60W / 80W / 90W / 100W / 110W / 120W |
| Color Temp |
1800 Kelvin (Yellow) / 590nm |
| Housing |
Aluminum alloy |
| Color |
Gray |
| Lens |
Tempered glass |
| Lifetime |
60,000 hrs L70 |
| Beam Angles |
X-116° / Y-114° |
| Ambient Temperature |
-20°C (-4°F) to 40°C (104°F) |
| T-Rating |
T5 |
| Power Factor |
cos ≥ 0.9 |
| Protection |
IP67 / NEMA 6 |
| Entrance Thread |
1 x 3/4” |
| Warranty |
5 Year Limited Warranty |
LUMENS
| 60W |
80W |
90W |
100W |
110W |
120W |
| 3,600 lm |
4,800 lm |
5,400 lm |
6,000 lm |
6,600 lm |
7,200 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
Narrow Band Yellow Light (590nm) – Ultraviolet Free / No UV
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 | UL8750
NEC and CEC
• Class I, Div 2 – Groups A, B ,C, D
• IP67
• NEMA 6
• RoHS Compliant
• CSA C22.2 137-18
• CSA C22.2 250.0
• CSA C22.2 250.13
• CE
• IEC / IECEx
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Narrow band yellow light (590nm / blocks UV wavelengths under 500nm) designed for use in semiconductor manufacturing, laboratories, health care facilities, pharmaceutical labs, and other applications where UV light would be damaging.
• Available in 2ft or 4ft lengths.
• Heavy duty aluminum housing.
• Wall, ceiling or street light mounting options available.
DOWNLOADS
SPECIFICATIONS
| Voltage |
120 VAC, 277 VAC |
| Wattage |
20W / 40W / 60W / 80W / 120W / 160W |
| Color Temp |
1800 Kelvin (Yellow) / 590nm |
| Housing |
Aluminum alloy |
| Color |
Gray |
| Lens |
Tempered glass |
| Lifetime |
60,000 hrs L70 |
| Beam Angles |
X-116° / Y-114° |
| Ambient Temperature |
-40°C (-40°F) to 45°C (113°F) |
| T-Rating |
T3C |
| Power Factor |
cos ≥ 0.9 |
| Protection |
IP67 / NEMA 6 |
| Warranty |
5 Year Limited Warranty |
LUMENS
| 20W |
40W |
60W |
80W |
120W |
160W |
| 1,700 lm |
3,150 lm |
4900 lm |
6,550 lm |
9,800 lm |
13,000 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
