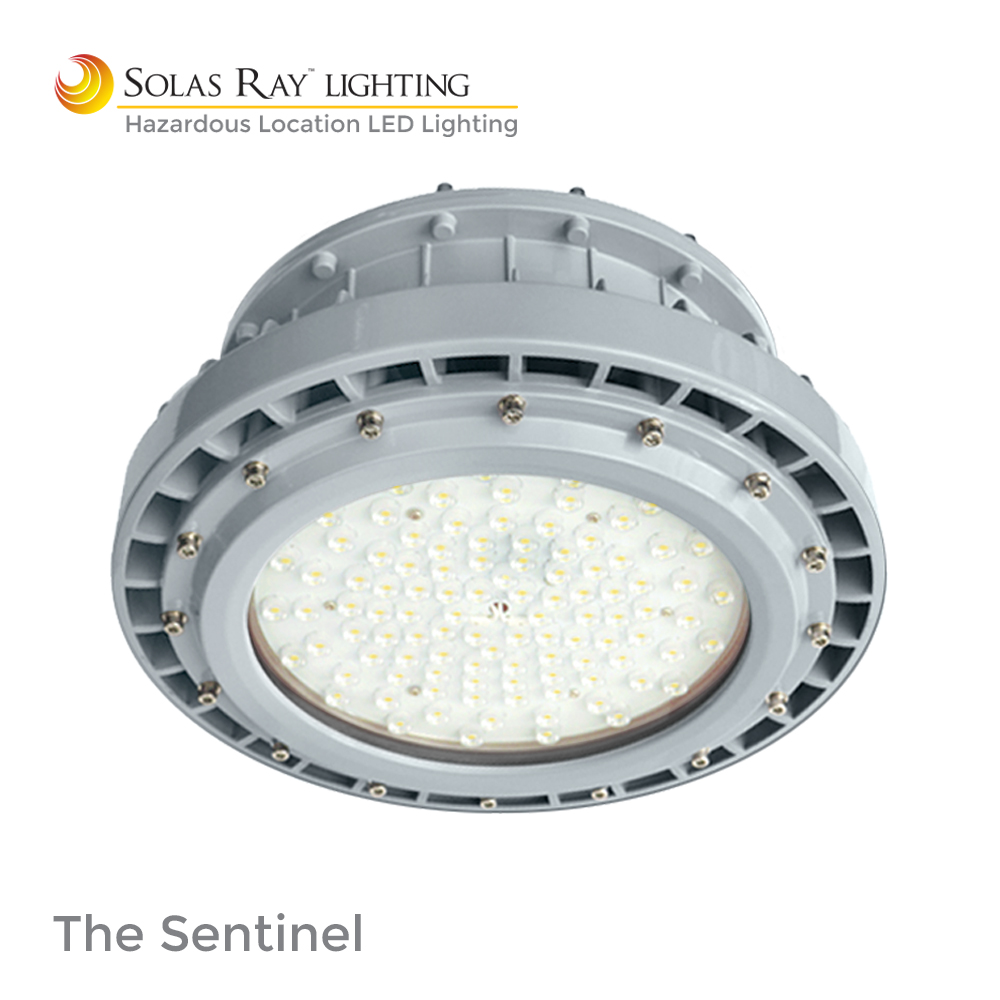

HJCR Series – The Sentinel™

Hazardous Location LED Light



CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations │ UL 924 | UL 1598 | UL 1598A

NEC and CEC
• Class I, Div 1 – Groups C, D
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III

• ETL
• IP66
• IP67
• DLC*
• IK08
• IK10**
• ABS
• CSA C22.2#137:2018 Ed.2
• CSA C22.2#250.0:2021 Ed.5
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

• Ambient temperature capabilities: -40°C (-40°F) to 60°C (140°F)
• * DLC V5.1 Standard (40W-280W, 4000K/5000K / 120° models only).
• Internal EM battery option (15W / 90 min).
• ** Impact Resistance: IK08 (standard lens) / IK10 (glass globe with wire guard).
• Corrosion proof – coated copper free aluminum alloy housing.
• Gray nylon corrosion resistant powder coating.

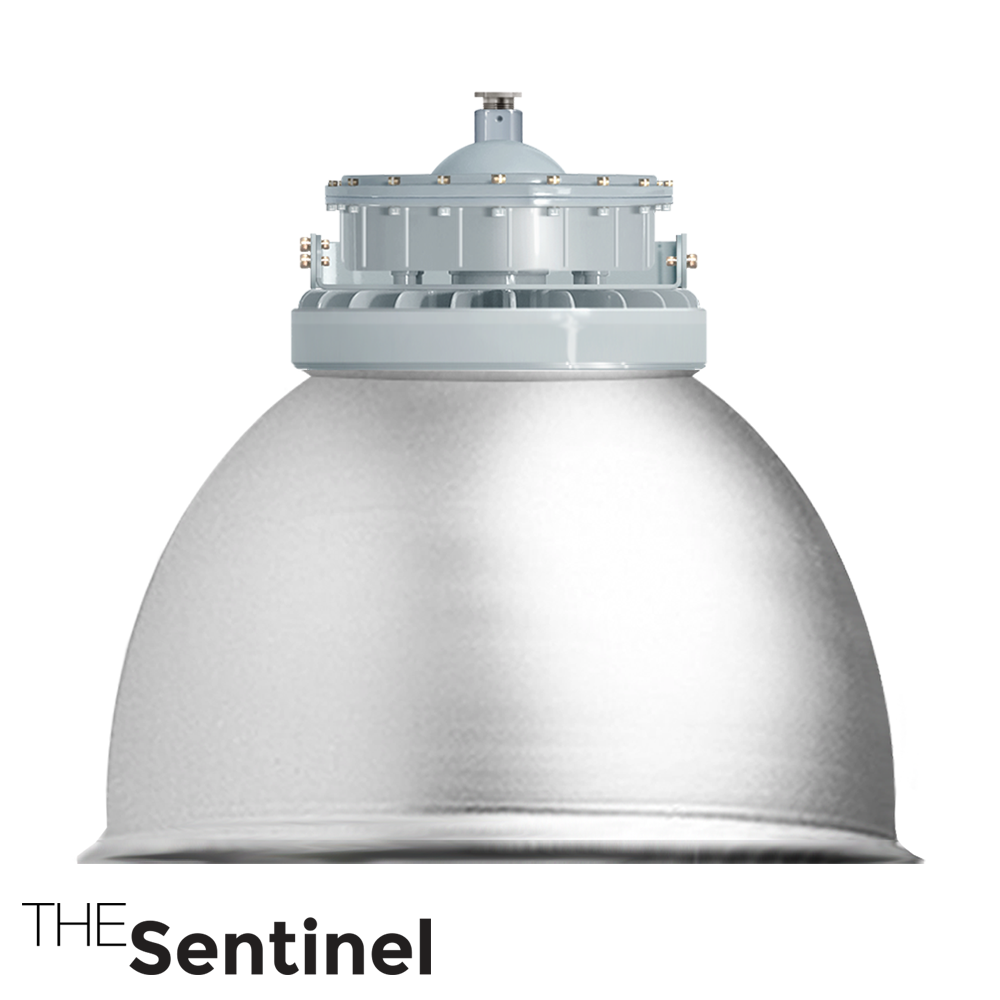

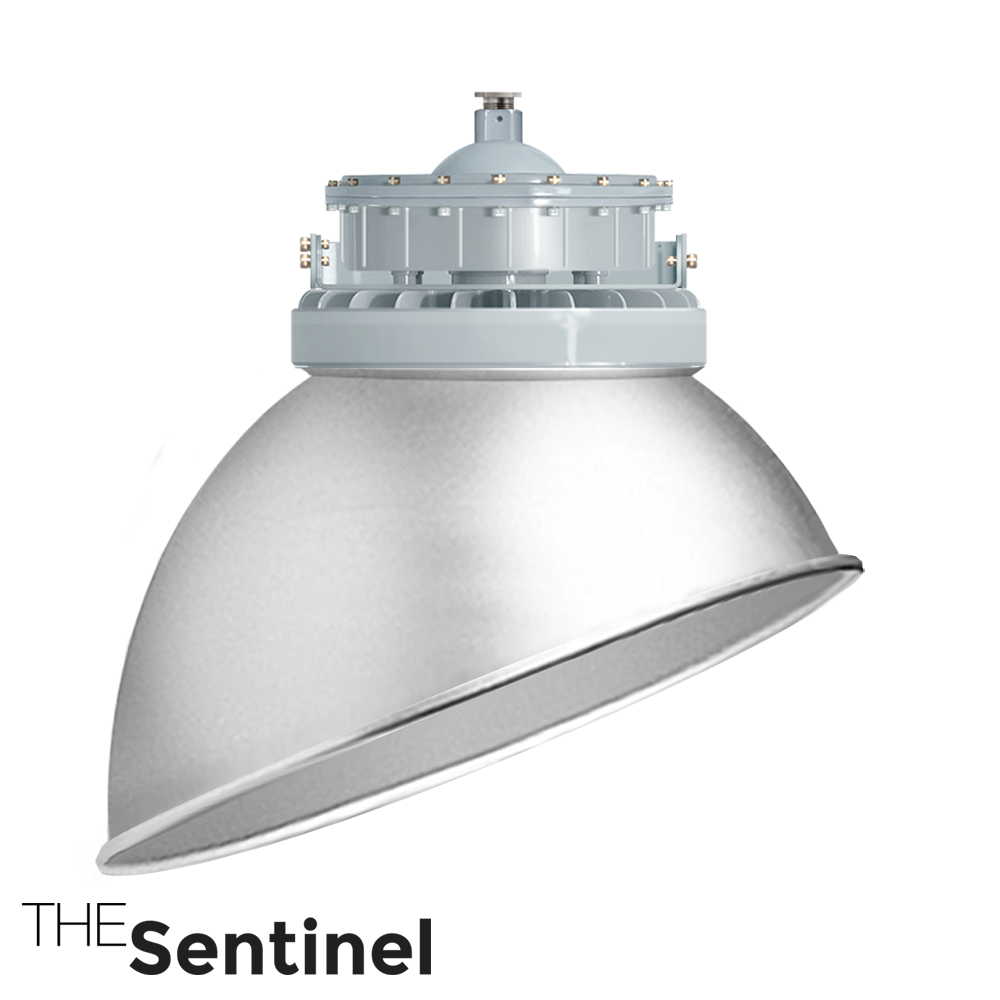

• Optional reflective hoods available.
• 0-10V dimming option available.
• 1000 hours salt spray test passed.

DOWNLOADS



SPECIFICATIONS

Voltage 120-277 VAC / 347-480 VAC
Wattage 30W / 40W / 60W / 80W / 100W / 150W / 200W / 250W / 280W
Color Temp 4000 / 5000 Kelvin
Housing Coated copper free aluminum alloy
Color Gray
Lens Tempered glass
Ambient Temperature -40°C (-40°F) to 60°C (140°F) / (-10°C to 60°C with EM Battery)
T-Rating T4
Lifetime 100,000+ hrs L70
CRI >70
Beam Angles 120° / 90° / 60° / 40°
Efficacy 140 lm/W
Entrance Thread 3/4” NPT
Protection IP66 / IP67
Warranty 5 Year Limited Warranty – Fixture / 3 Year Limited Warranty – Battery

LUMENS

30W 40W 60W 80W 100W 150W 200W 250W 280W
4,200 5,600 8,400 11,200 14,000 21,000 28,000 35,000 39,200

EM BATTERY OPTION

Input Rating AC 120-277V
Output Wattage 15W
Battery Capacity 2000 mAh
Battery Run-time 90 minutes
Charge Time ≥ 24 hours
Ambient Temperature -10°C (14°F) to 60°C (140°F)
Battery Warranty 3 Year Limited Warranty

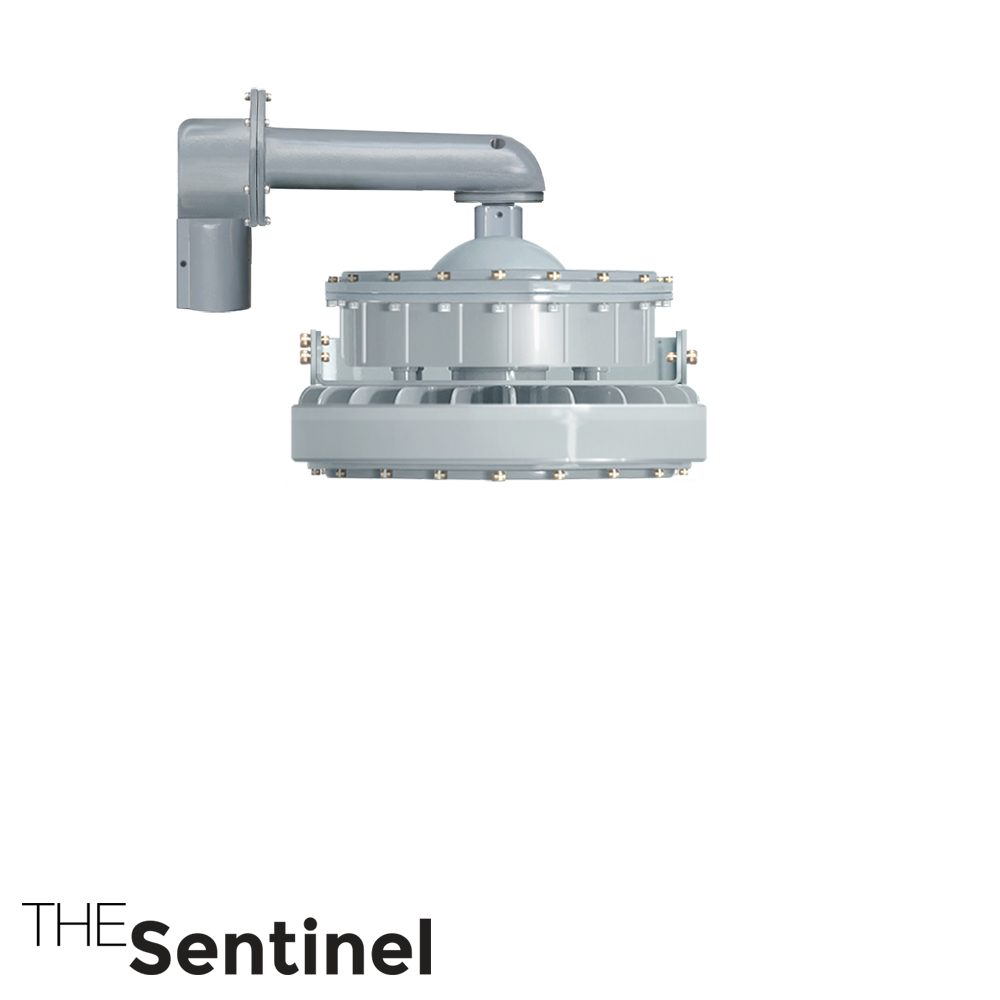

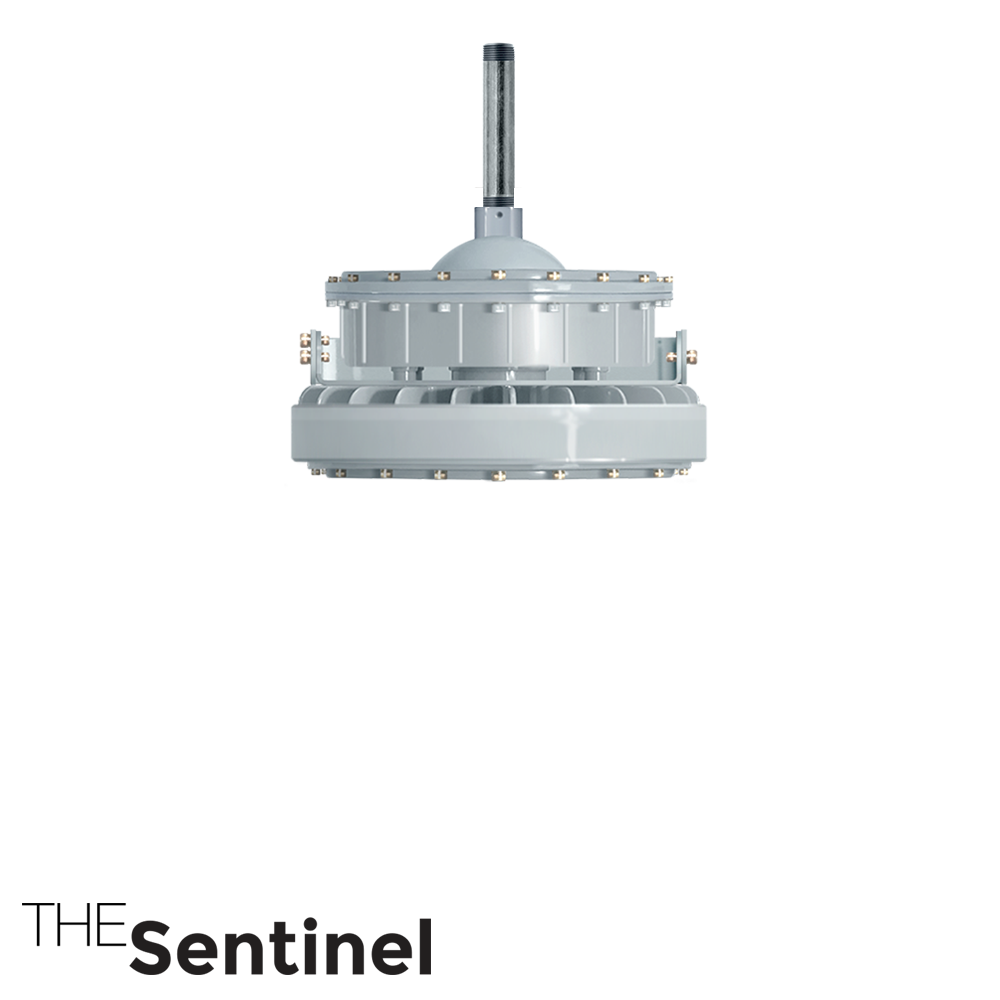

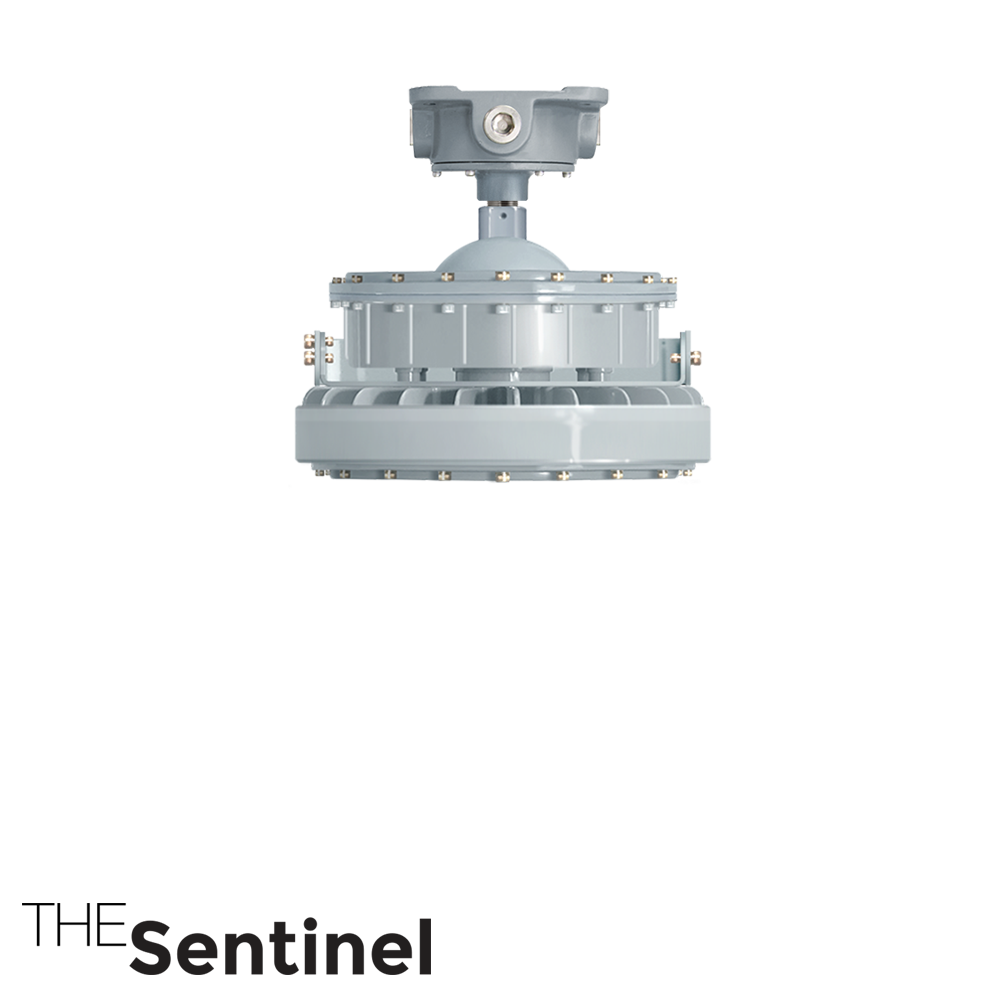

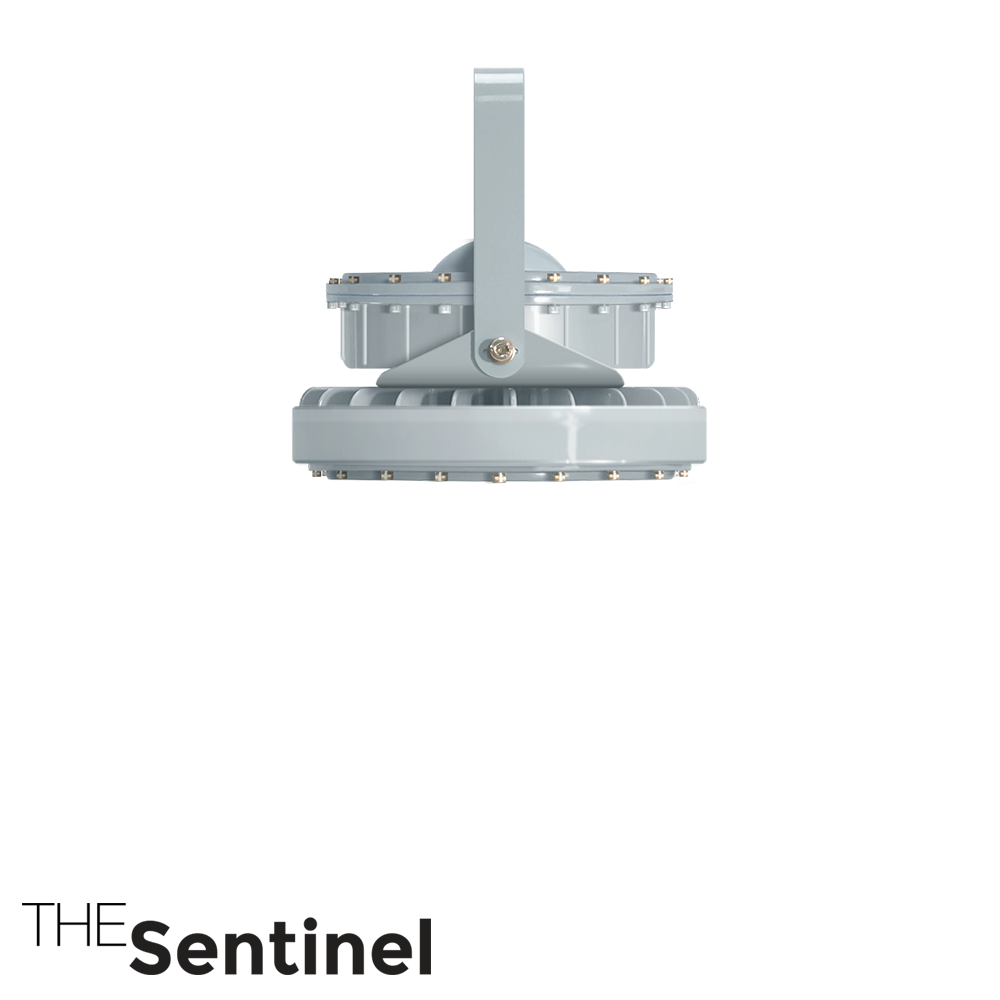

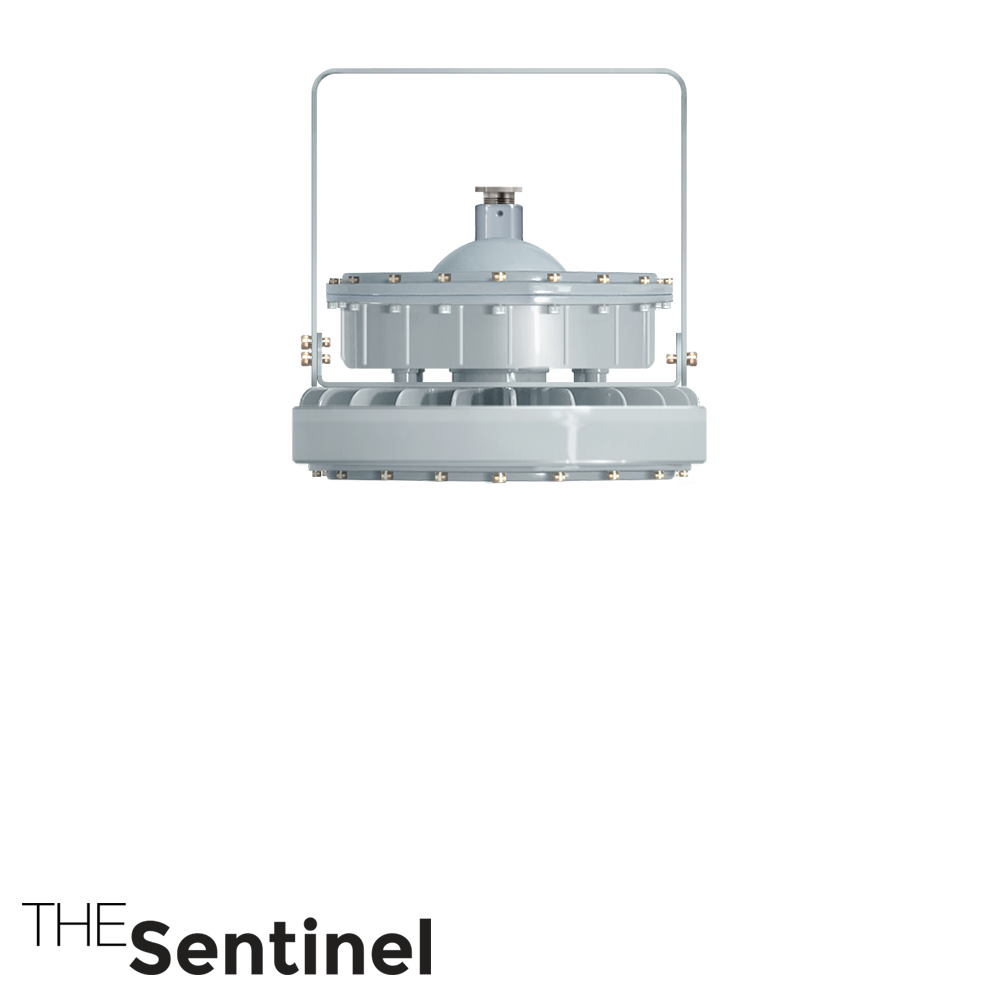

See specification sheet for product ordering selection, mounting options, weights and dimensions.

HJCR1L
