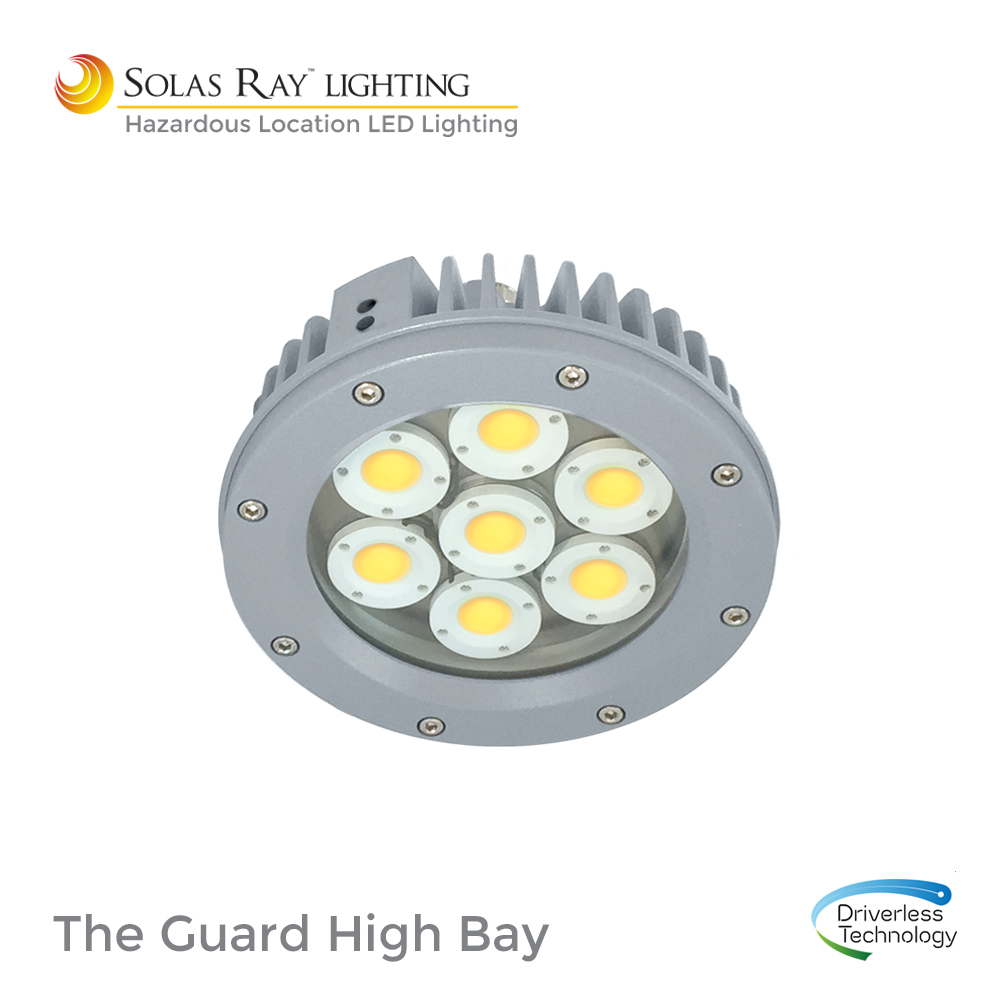

The Guard HazLoc S and C Series Bay Light

The GUARD S Series – HTR11S1 / HTR11S2

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires
NEC and CEC
• Class I Div 1 – Groups B, C, D │ Class I Div 2 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G │ Class II Div 2 – Groups E, F, G

• Vibration / Anti-Resonance Design.
• Crush Resistant with High Impact Resistance.
• Marine Grade Housing / Salt Water Spray Resistant.
• Atmospheric Pressure Tolerance up to 10 Meter Depth.
• Factory Installed Cable Gland is Standard.
• Rated IP67.

Kelvin Based Lumen Output
120 Watts 140 Watts 150 Watts
3000K 10,800 lm 12,600 lm 13,500 lm
5000K 12,000 lm 14,000 lm 15,000 lm







The GUARD C Series HazLoc – HTR11C2

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires
NEC and CEC
• Class I Div 2 – Groups A, B, C, D │ Class II Div 2 – Groups F, G

• Vibration / Anti-Resonance Design.
• Crush Resistant with High Impact Resistance.
• Marine Grade Housing / Salt Water Spray Resistant.
• Atmospheric Pressure Tolerance up to 10 Meter Depth.
• Factory Installed Cable Gland is Standard.
• Rated IP67.

Kelvin Based Lumen Output
120 Watts 140 Watts
3000K 10,800 lm 12,600 lm
5000K 12,000 lm 14,000 lm











HTR11S1-120-50-120-X   HTR11C2-120-50-120-X

HTR11S1-140-50-120-X   HTR11C2-140-50-277-X
HTR11S1-150-50-120-X
HTR11S2-120-50-120-X
HTR11S2-140-50-120-X
HTR11S2-150-50-120-X
