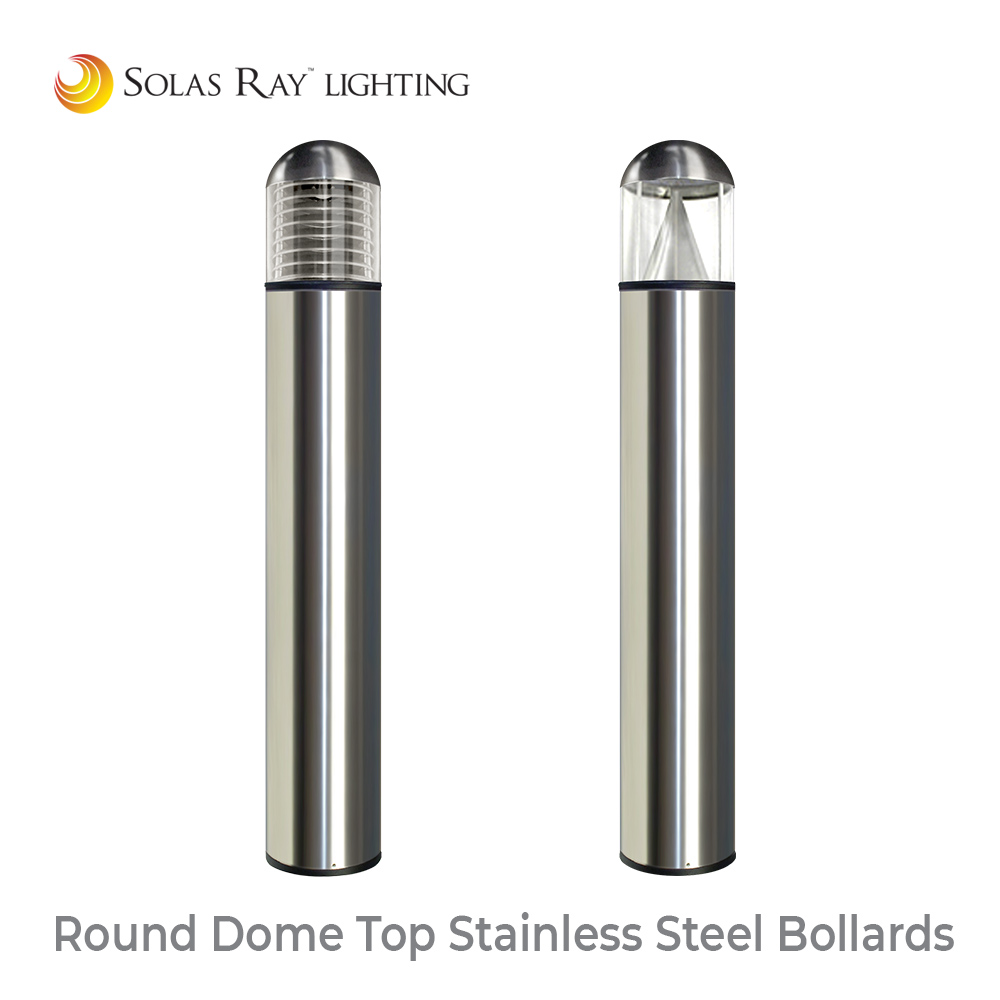

BQDS Series – Round Dome Top Stainless Steel Bollards


• CSA Listed
• IP65
• UL1598
• UL8750


These durable, stainless steel round dome topped LED Bollards are designed and produced to provide uniform ambient lighting while accenting any landscape or location.

They provide low glare to a wide area and compared to HID bollard lighting, are a truly cost-effective pathway lighting for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.

• Includes mounting kit with 8” anchor bolts.
• Custom heights and colors are available upon request.
• 0-10V dimming driver.
• Buy American Act compliant.

Buy American Act




Voltage 120-277 VAC
Wattage 10W / 15W / 22W
Color Temp 3000 / 4000 / 5000 Kelvin / Amber (15W only)
Housing 316L stainless steel housing with flush mounting base & vandal-resistant screws.
Color Silver (stainless steel)
Lens Type V Louvers / Type V Cone
Lifetime 147,000 hrs L70
Ambient Temperature -40°C (-40°F) to 40°C (104°F)
Protection IP65
Warranty 5 Year Limited Warranty


Lens Kelvin 10W 15W 22W
Type V Louvers 3000K 521 lm 730 lm 1,094 lm
4000K 565 lm 791 lm 1,187 lm
5000K 589 lm 824 lm 1,236 lm
Type V Cone 3000K 1,031 lm 1,444 lm 2,165 lm
4000K 1,119 lm 1,566 lm 2,349 lm
5000K 1,165 lm 1,631 lm 2,447 lm

See specification sheet for product ordering selection, mounting options, weights and dimensions.
