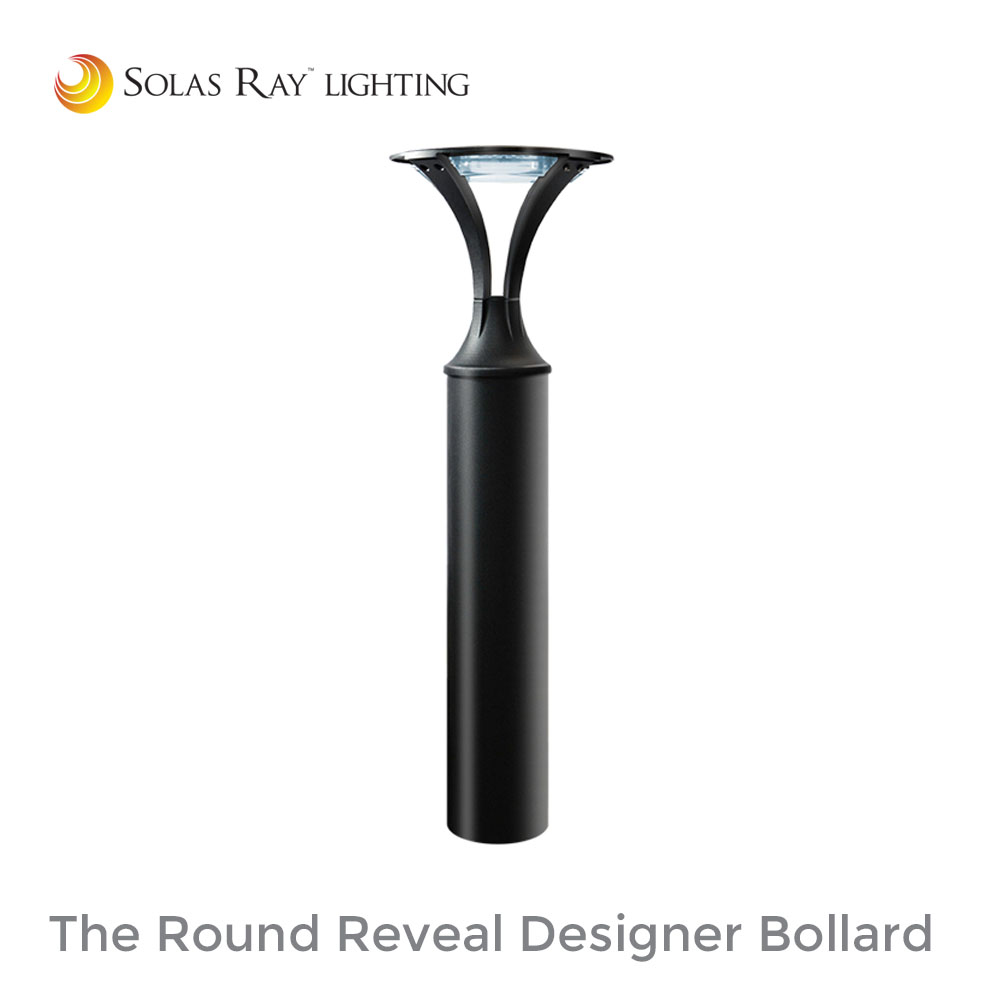

BQRR Series – Round Reveal Designer Bollard

CERTIFICATIONS / RATINGS

• CSA Listed
• IP66
• UL1598
• UL8750

FEATURES AND BENEFITS

This durable LED Bollard is designed to provide uniform ambient lighting while accenting any landscape. This round bollard with a flat top provides low glare and cost-effective pathway lighting for any location.

Solas Ray™ Designer Bollards become the featured addition to illuminate and accent landscaping, walkways, buildings, hospitals, office buildings, schools and parking areas. Anywhere security, visibility and safety is needed, ask for quality, demand performance and expect reliability from Solas Ray bollards.

• Includes mounting kit with 8” anchor bolts.
• Custom heights and colors are available upon request.
• 0-10V dimming driver.
• Buy American Act compliant.

Buy American Act

DOWNLOADS





SPECIFICATIONS

Voltage 120-277 VAC
Wattage 16W / 25W
Color Temp  3000 / 4000 / 5000 Kelvin
Housing Extruded aluminum housing with sealed driver compartment.
Finish Powder-coat finish over chromate conversion coating.
Color Architectural bronze / black / custom
Lens Clear UV-stabilized polycarbonate
Lifetime 187,000 hrs L70 (@ 25°C/77°F)
Ambient Temperature -40°C (-40°F) to 50°C (122°F)
Protection IP66
Warranty 5 Year Limited Warranty

LUMENS

Kelvin 16W 25W
3000K 1,532 lm 2,298 lm
4000K 1,662 lm 2,493 lm
5000K 1,731 lm 2,597 lm

See specification sheet for product ordering selection, mounting options, weights and dimensions.
