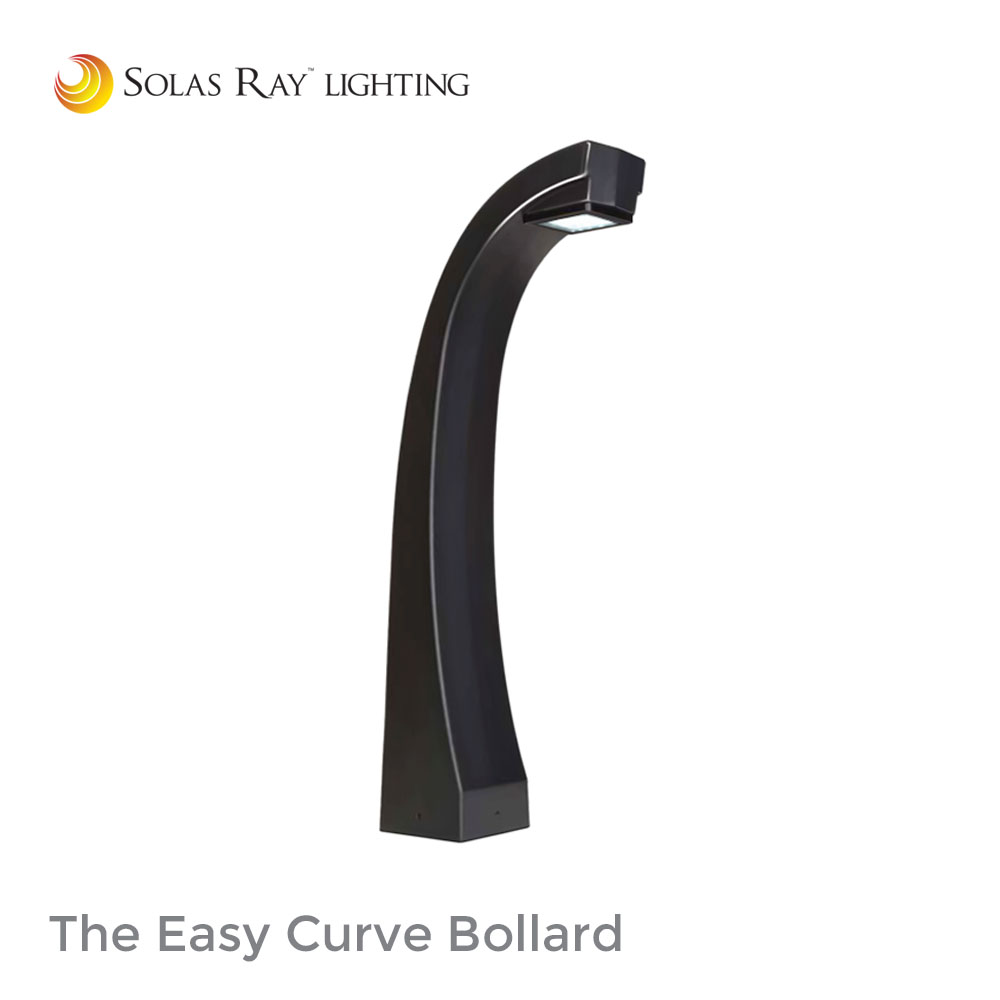

BQ9 Series – Easy Curve Designer Bollard


These uniquely stylized LED Bollards are designed using LED technology and provide uniform lighting while accenting any landscape. This bollard provides low glare and highly cost-effective pathway lighting.

Solas Ray™ Designer Bollards become the featured addition to illuminate and accent landscaping, walkways, buildings, hospitals, office buildings, schools and parking areas. Anywhere security, visibility and safety is needed, ask for quality, demand performance and expect reliability from Solas Ray™ bollards.




Voltage 120-277vAC
Wattage 12w (13.6w system) / 18w (20.4w system)
Color Temp  3000 / 4000 / 5000 Kelvin
Housing Durable one-piece sand cast aluminum housing with ½” thick walls. Includes flush mounting base & vandal-resistant screws, internal driver tray for easy maintenance.
Color Textured architectural bronze or black powder coat finish over a chromate conversion coating. Custom colors available upon request.
Lens Clear UV-Stabilized Polycarbonate Vandal-Resistant
Optics Type III
Lifetime 147,000 hrs L70
Ambient Temperature -40°C (-40°F) to 50°C (122°F)
Protection IP65
Warranty 5 Year Limited Warranty


Wattage Kelvin Lumens
12w 3000K 1,427
12w 4000K 1,548
12w 5000K 1,612
18w 3000K 2,140
18w 4000K 2,322
18w 5000K 2,418
