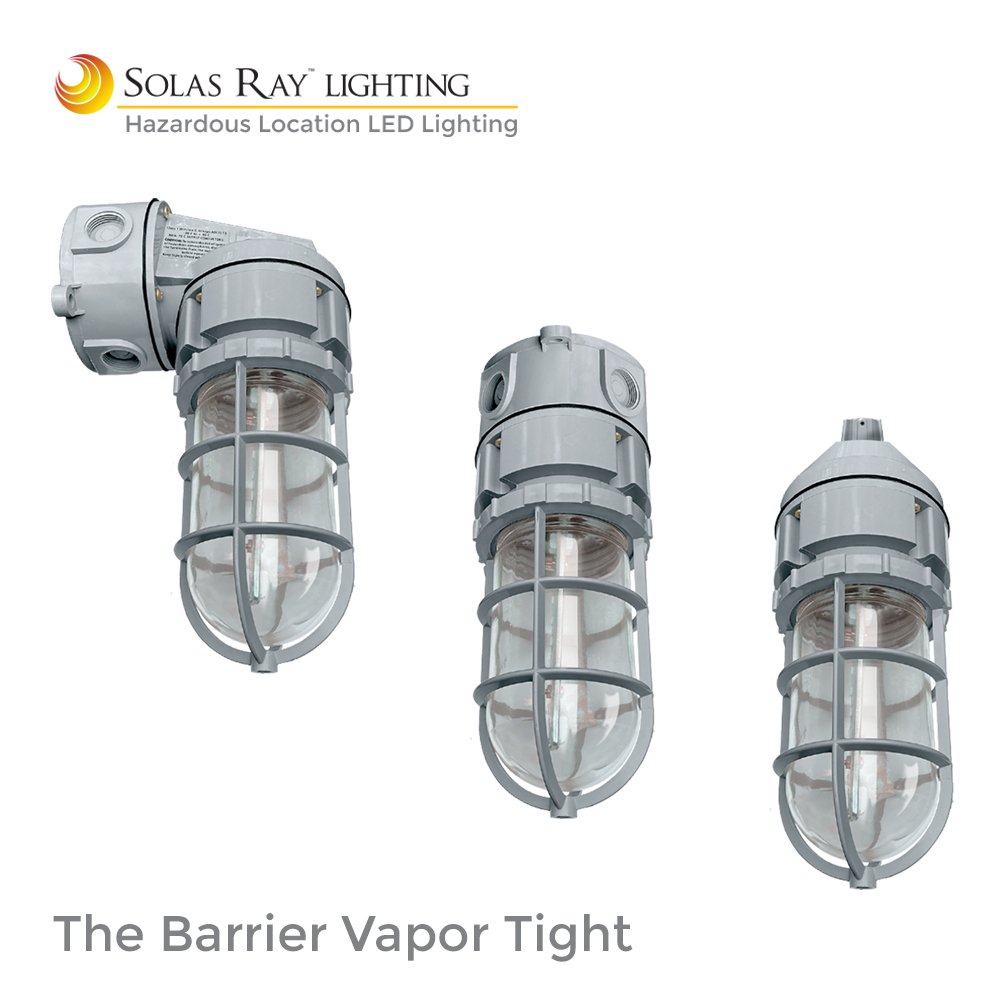

HBVT Series – The HazLock Barrier™
Hazardous Location Vapor Tight LED Lighting
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations | UL1589 | UL1598A
NEC and CEC
• Class I Div 2 – Groups A, B, C, D
• ETL
• IP66
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Ambient temperature capabilities: -20˚C (-4°F) to 40˚C (104˚F).
• Corrosion resistant, polyester thermoplastic housing.
• Impact resistant tempered glass globe with plastic guard.
• Neoprene gaskets seal each mounting option.
• Wet location rated.
• Buy American Act compliant.
Non-hazardous rated version available (See IBVT Series)
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC |
| Wattage | 16W |
| Lumens | 1,150 Lm |
| Color Temp | 5000 Kelvin |
| Ambient Temperature | -20°C (-4°F) to 40°C (104°F) |
| T-Rating | T3 |
| Housing | Polyester thermoplastic |
| Color | Gray |
| Lens | Tempered glass globe |
| Lifetime | 50,000 hrs rated life |
| CRI | >80 |
| Efficacy | 72 Lm/W |
| Power Factor | >0.95 |
| Protection | IP66 |
| NPT | 3/4” |
| Warranty | 5 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
