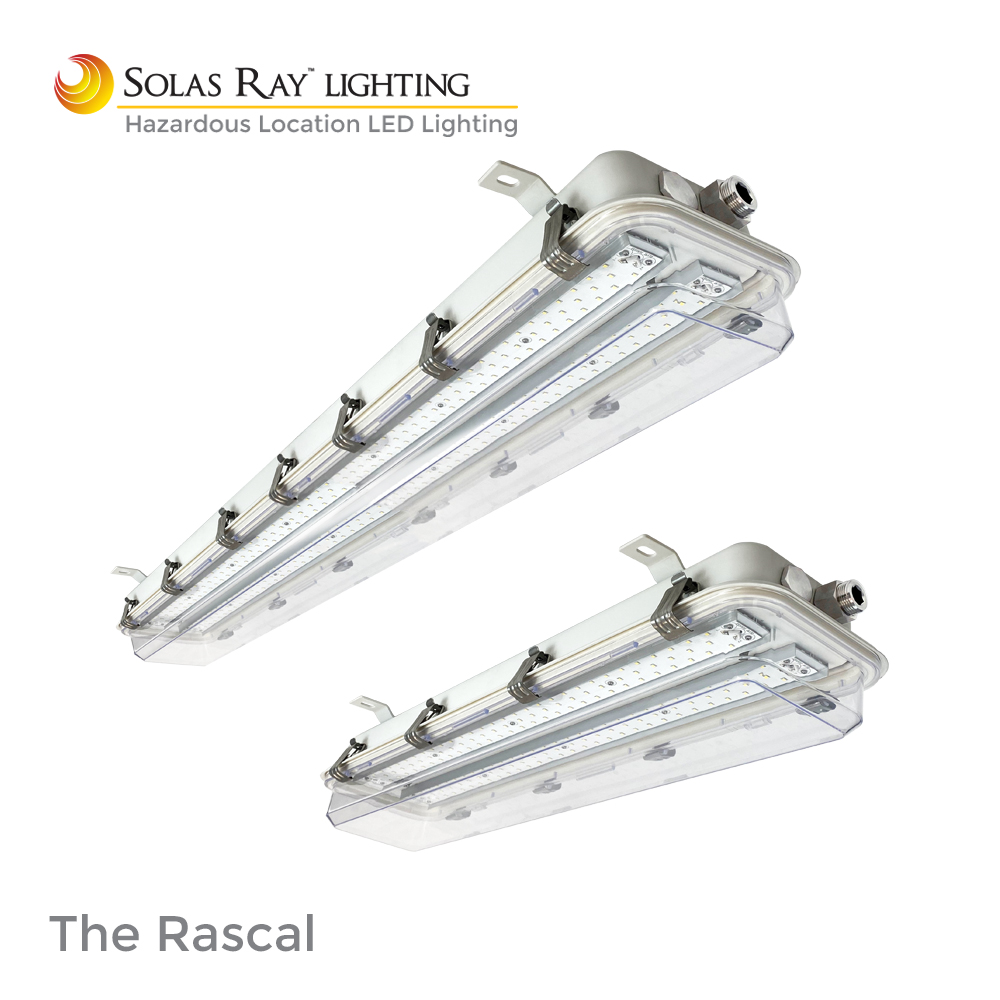

HJRL Series – The Rascal™
Hazardous Location LED Light
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL8750 | UL1598 | UL1598A
NEC and CEC
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups F, G
• Class III
• IP66 / IP67
• DLC V5.1 Standard
• IK10
• ABS
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Linear vapor tight hazardous location LED fixture.
• DLC V5.1 Standard.
• Internal EM battery Option (15W / 90 min).
• IK10 impact rating.
• 1200 hour salt spray test test passed.
• 3G vibration rated.
• UV stabilized, impact-resistant fiberglass reinforced polycarbonate lens.
• Surface mount brackets and cable hanging system included.
• 2 foot and 4 foot lengths available.
• Ambient temperature capabilities: -40°C (-40°F) to 50°C (122°F)
• Wet location ready.
• 4kV surge protection.
• Suitable for dead end, through feed or single-ended “T” Wiring (150W max).
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC |
| Wattage | 30W / 40W / 50W / 60W |
| Color Temp | 5000 / 4000 Kelvin |
| Housing | Fiberglass |
| Color | White |
| Lens | Fiberglass reinforced polycarbonate |
| Ambient Temperature | -40°C (-40°F) to 50°C (122°F) / (-10°C to 50°C with EM Battery) |
| T-Rating | T6 (30W) / T5 (40W/50W/60W) |
| CRI | >83 |
| Lifetime | 50,000 hrs LM80 |
| Beam Angle | 120° |
| Power Factor | > 0.9 |
| Protection | IP66 / IP67 / IK10 |
| Warranty | 5 Year Limited Warranty – Fixture / 3 Year Limited Warranty – Battery |
LUMENS
| 30W | 40W | 50W | 60W |
| 4,000 | 5,000 | 7,000 | 8,400 |
EM BATTERY OPTION
| Input Rating | AC 120-277V |
| Output Wattage | 15W |
| Battery Capacity | 2000 mAh |
| Battery Run-time | 90 minutes |
| Charge Time | ≥ 24 hours |
| Ambient Temperature | -10°C (14°F) to 60°C (140°F) |
| Battery Warranty | 3 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
