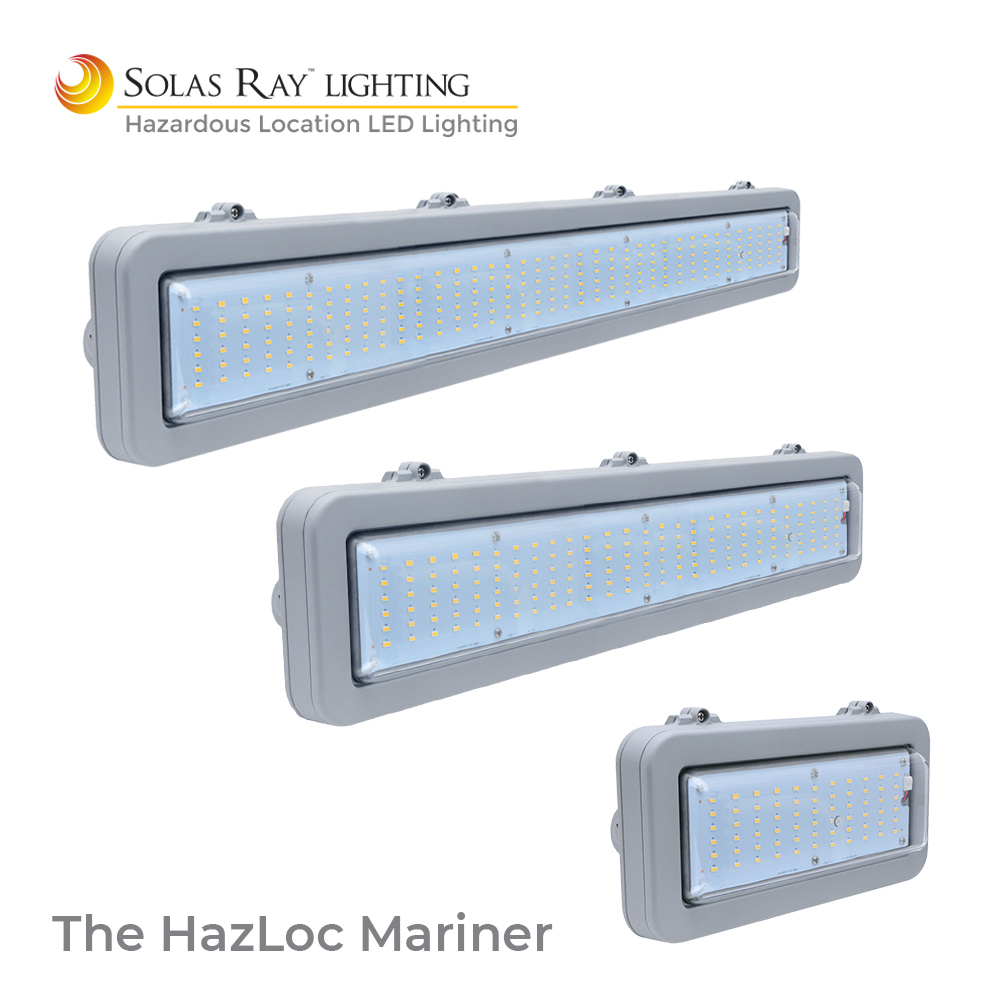

HQ Series – The HazLoc Mariner™
Hazardous Location LED Linear Lighting
(Includes HQH1 / HQH1C / HQV1C / HQH2 / HQH4 Series)
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations
NEC and CEC
• Class I Div 2 – Groups A, B, C, D
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Available in 3 lengths: 1ft / 2ft / 4ft.
• Hazardous location ambient temperature capabilities: -25°C to 40°C (104°F).
• Suitable for wet locations.
• Gray powder-coat finish over a chromate conversion coating.
• Clear polycarbonate vandal-resistant lens.
• Horizontal and vertical hood options on 1’ models.
• Heavy-duty die-cast aluminum housing.
• Tapped conduit entry, all four sides.
• Internal surge protection.
• Easy installation and maintenance.
• 0-10v dimming driver.
• Buy American Act Compliant.
DOWNLOADS
OTHER AVAILABLE MARINERS
The Mariner is also available in non-hazardous rated versions. See LQ Series.
SPECIFICATIONS
| Voltage | 120-277 VAC / 347-480 VAC |
| Wattage | 26W / 43W / 58W / 77W / 126W / 152W |
| Color Temp | 4000 / 5000 Kelvin |
| Housing | Die-cast aluminum |
| Color | Gray |
| Lens | Clear Polycarbonate |
| Lifetime | 138,000 hrs L70 (@ 25°C) |
| Ambient Temp. | -25°C (-13°F) to 40°C (104°F) |
| CRI | ≥80 |
| Power Factor | >0.90 |
| Efficacy | 88 to 134 lm/W |
| T-Rating | T4 |
| NPT | 3/4” |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Size / Type | Watts | Kelvin | Clear Lens |
| 1′ Open Frame | 26W | 4000K | 3,199 lm |
| 5000K | 3,332 lm | ||
| 43W | 4000K | 5,316 lm | |
| 5000K | 5,538 lm | ||
| 1′ Horizontal Hood | 26W | 4000K | 3,001 lm |
| 5000K | 3,126 lm | ||
| 43W | 4000K | 4,684 lm | |
| 5000K | 4,879 lm | ||
| 1′ Vertical Hood | 26W | 4000K | 3,172 lm |
| 5000K | 3,305 lm | ||
| 43W | 4000K | 5,082 lm | |
| 5000K | 5,292 lm | ||
| 2’ | 58W | 4000K | 7,017 lm |
| 5000K | 7,309 lm | ||
| 77W | 4000K | 9,882 lm | |
| 5000K | 10,294 lm | ||
| 4’ | 126W | 4000K | 15,636 lm |
| 5000K | 16,287 lm | ||
| 152W | 4000K | 18,982 lm | |
| 5000K | 19,773 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
