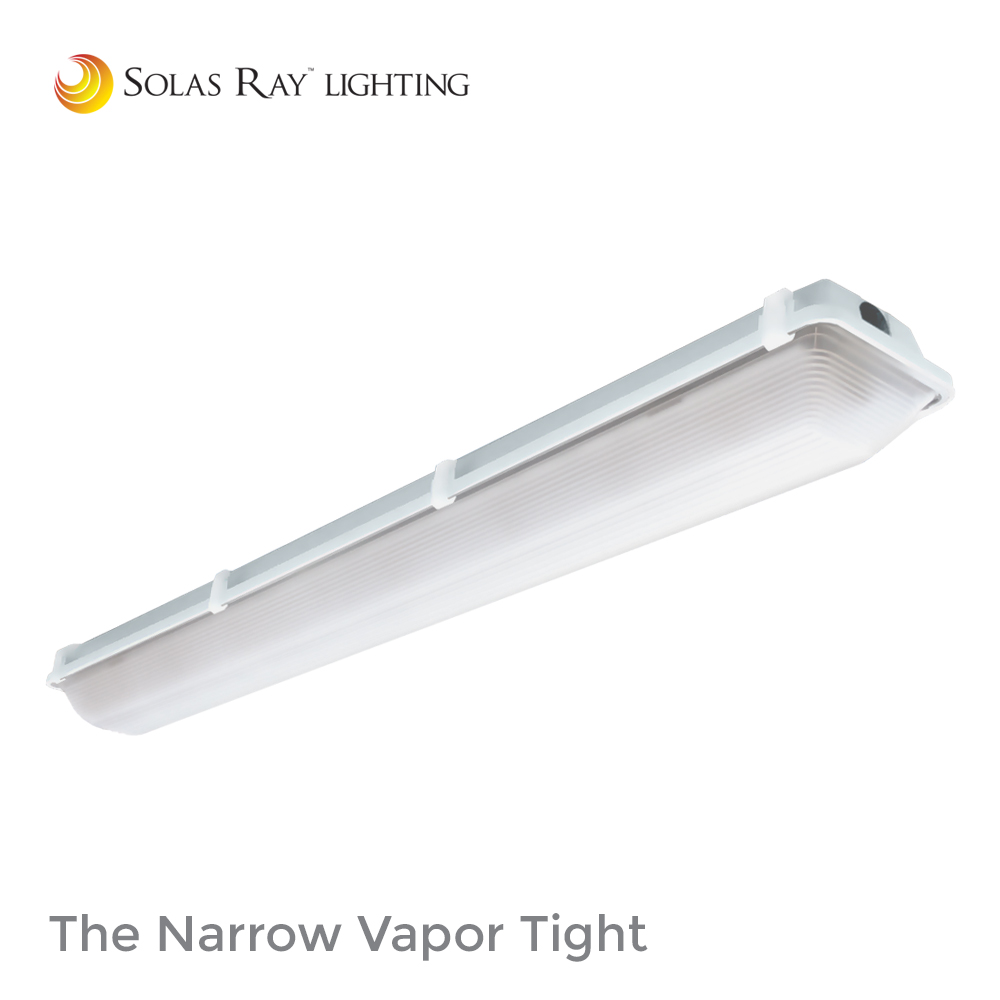

SVN Series – The Narrow Vapor Tight
Weatherproof Industrial LED Lighting
CERTIFICATIONS / RATINGS
• ETL Listed
• IP66 / IP67 / IP68
• UL 746
• UL F1
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Weatherproof wide area lighting for wet location and wash-down applications.

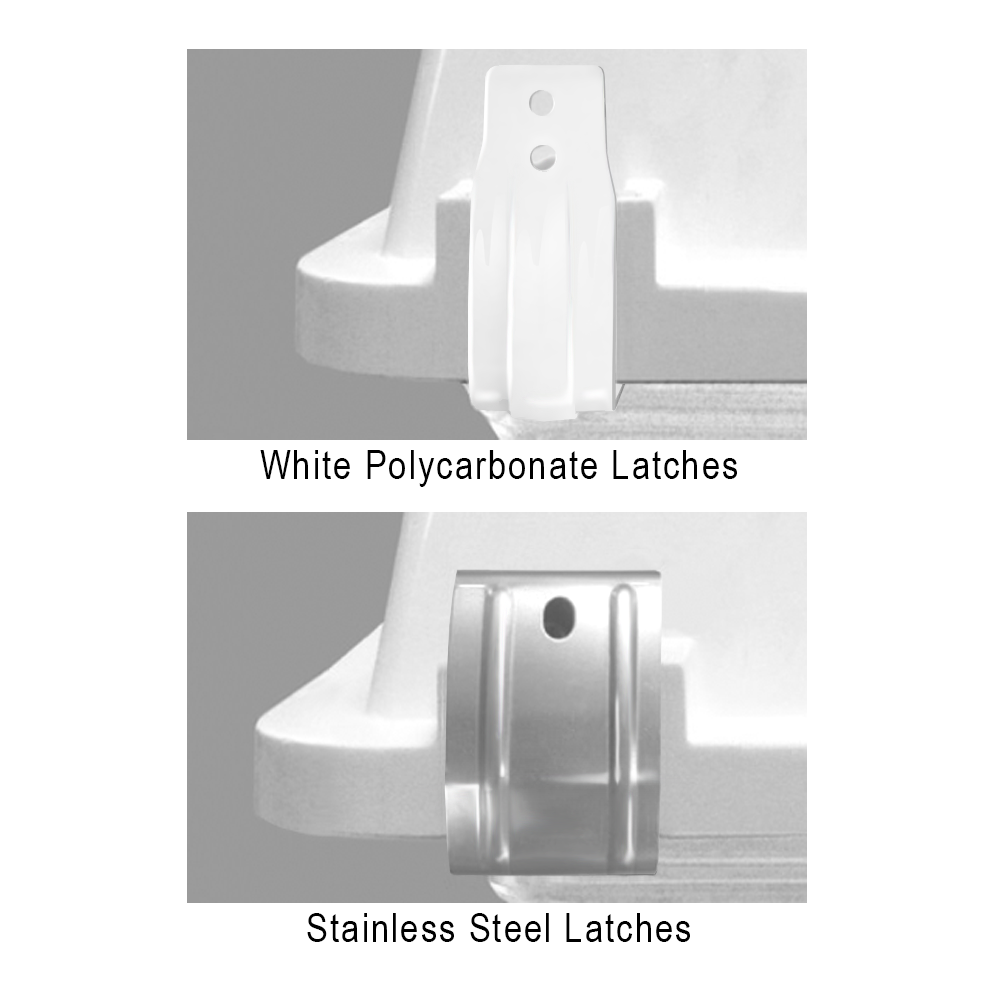

• Stainless steel cam latches available.
• Polycarbonate enclosure.
• Poured in place gasket and cam latches seal the fixture.
• Occupancy sensor and emergency battery options available.
• Wide distribution pattern with uplight option available.
• 0-10 V dimmable.
• 4ft length.
• Buy American Act compliant.
SPECIFICATIONS
Voltage | 120-277 VAC |
Wattage | 24W / 35W / 42W / 48W / 55W |
Color Temp | 3000 / 3500 / 4000 / 5000 Kelvin |
Housing | Polycarbonate |
Color | White |
Lens | High impact acrylic / polycarbonate |
Ambient Temperature | -30°C (-22°F) to 45°C (113°F) |
Lifetime | >50,000 hrs L70 |
CRI | >80 |
Power Factor | >0.90 |
Protection | IP65 / IP66 / IP67 |
Entrance | 7/8” diameter hole |
Warranty | 5 Year Limited Warranty |
LUMENS
24W | 35W | 42W | 48W | 55W |
3,600 | 5,250 | 6,300 | 7,200 | 8,250 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
