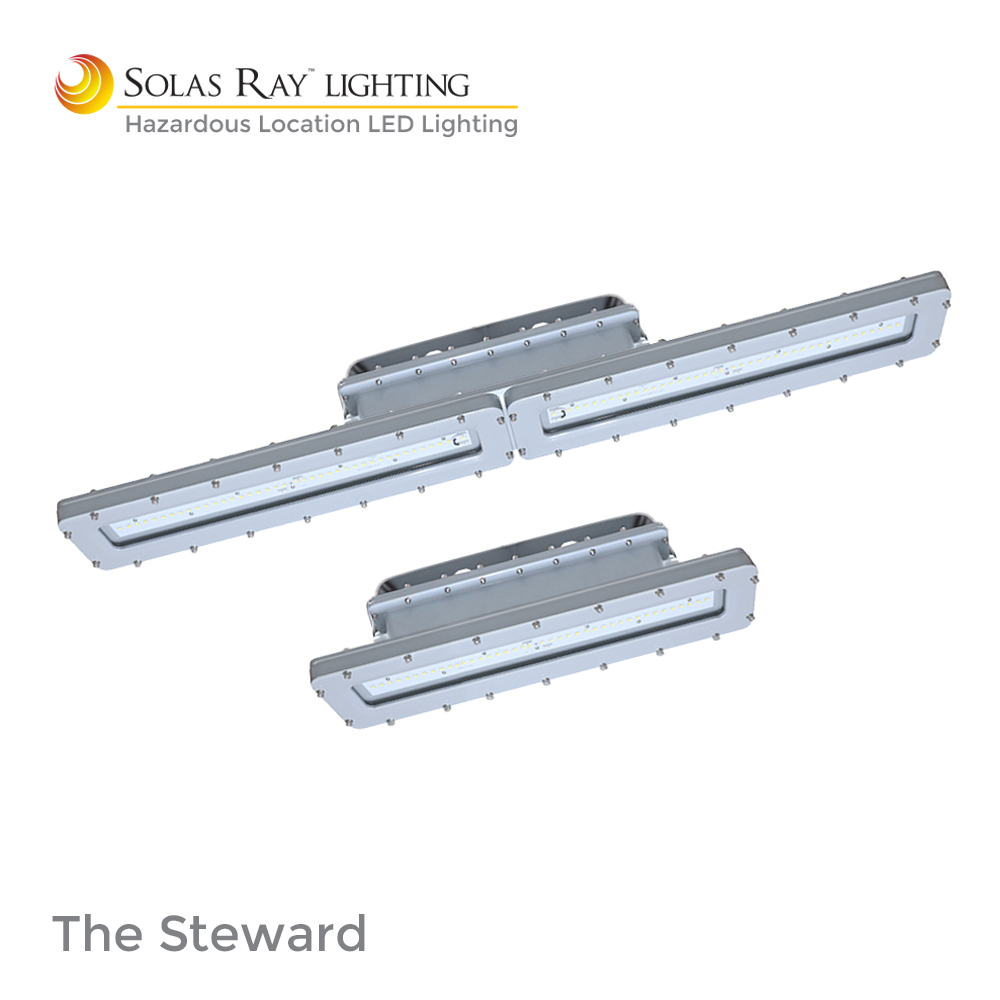

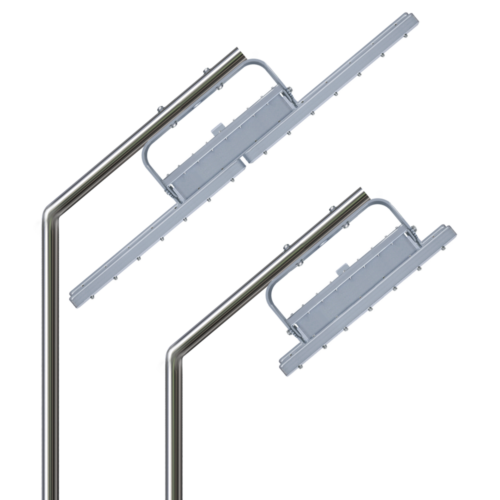

HJIL Series – The Steward HazLoc Linear Lighting
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1589 | UL1598 A
NEC and CEC
• Class I, Div 1 – Groups C, D
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III
• ETL
• IP66
• ABS
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• High ambient temperature capabilities: -40˚C to 60˚C (140˚F).
• Corrosion proof – coated aluminum alloy (copper free) housing.
• Gray nylon corrosion resistant powder coat.
• Marine and wet location ready.
• Heavy-duty and high impact resistance.
• Paint/spray listed for use in paint or powder booths.
DOWNLOADS
SPECIFICATIONS
| Voltage | 100-277vAC / 200-480vAC |
| Wattage 2′ Models | 20w / 40w / 60w |
| Wattage 4′ Models | 40w / 60w / 80w / 100w / 120w |
| Color Temp | 4000 / 5000 Kelvin |
| Ambient Temperature | -40°C to 60°C (140°F) |
| Housing | Coated copper free aluminum alloy |
| Color | Gray |
| Lens | Flat tempered glass |
| Lifetime | 70,000 hrs L70 |
| CRI | >80 |
| Beam Angle | 120° |
| Efficacy | up to 140 lm/w |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Watts | 20w | 40w | 60w | 80w | 100w | 120w |
| Lumens | 2,800 | 5,600 | 8,400 | 11,200 | 14,000 | 16,800 |

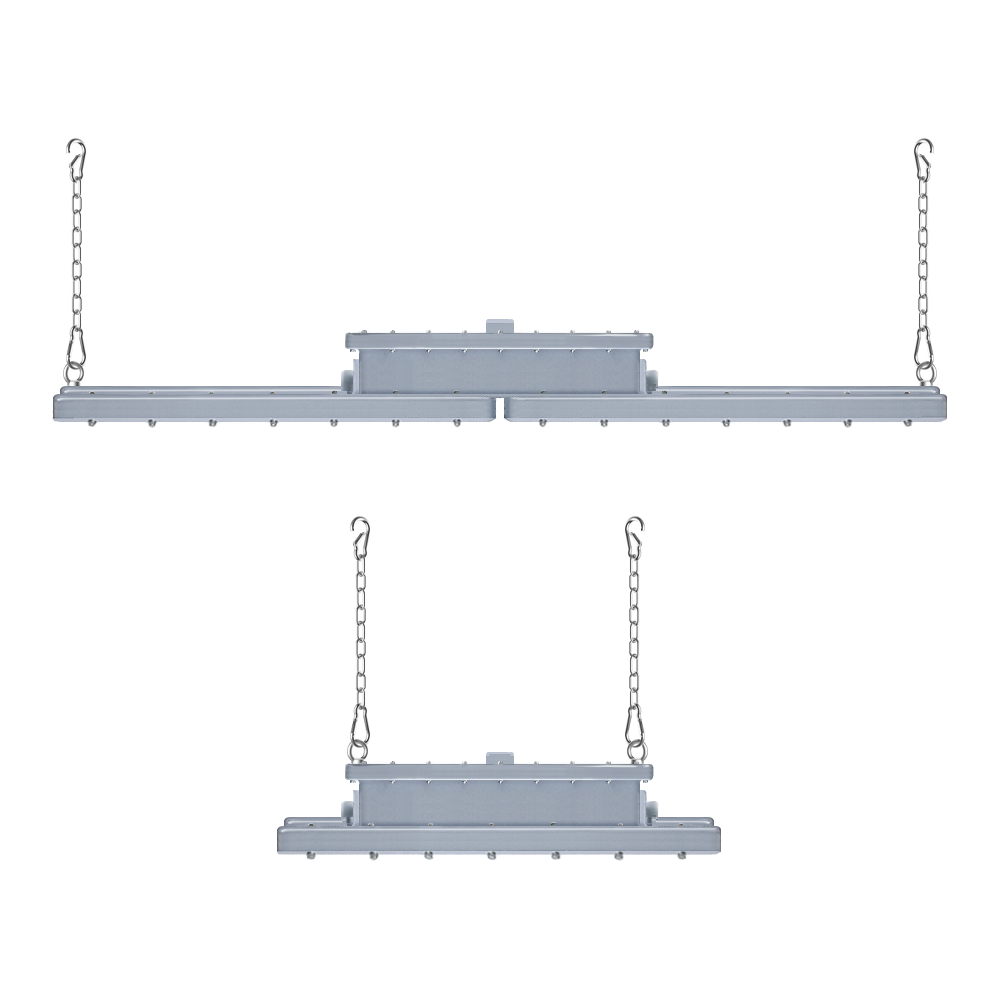

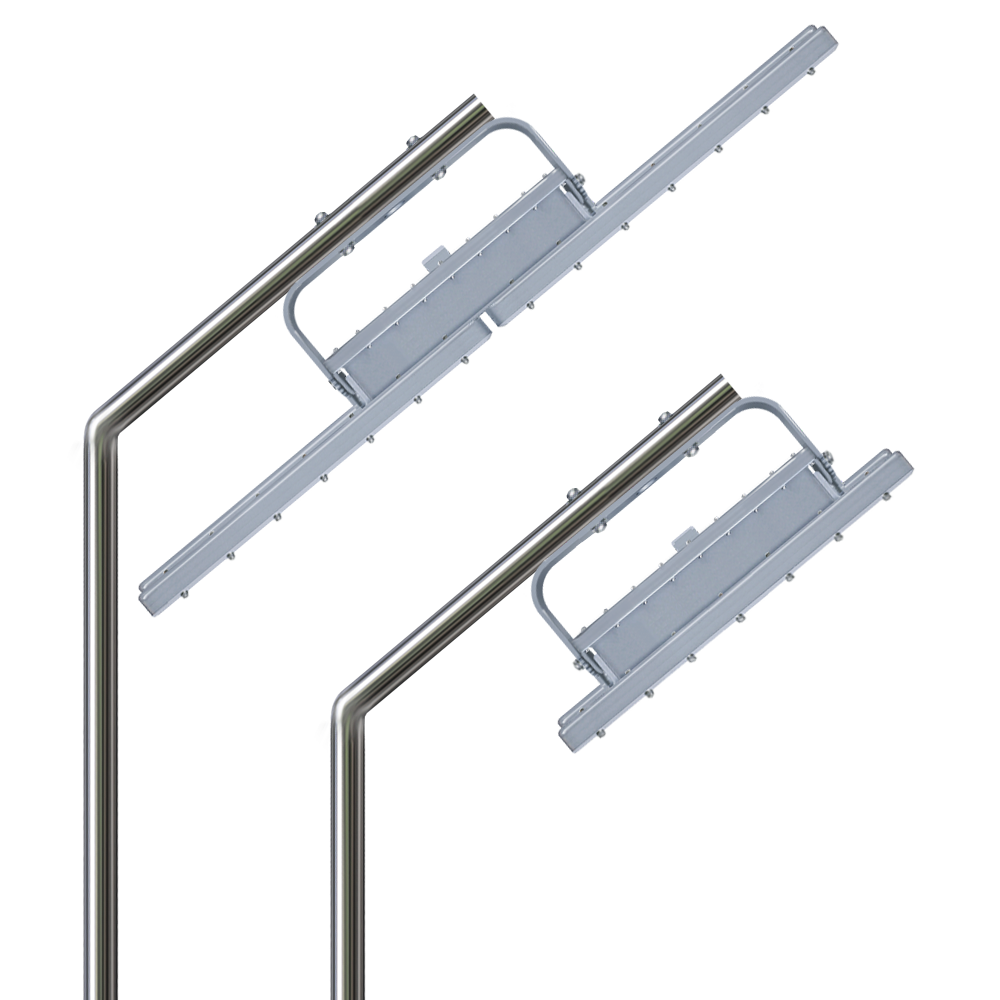

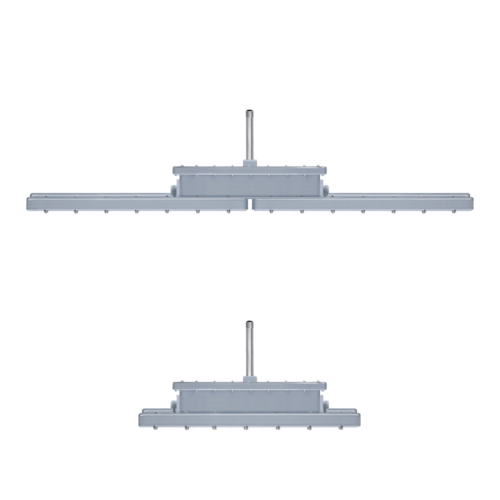

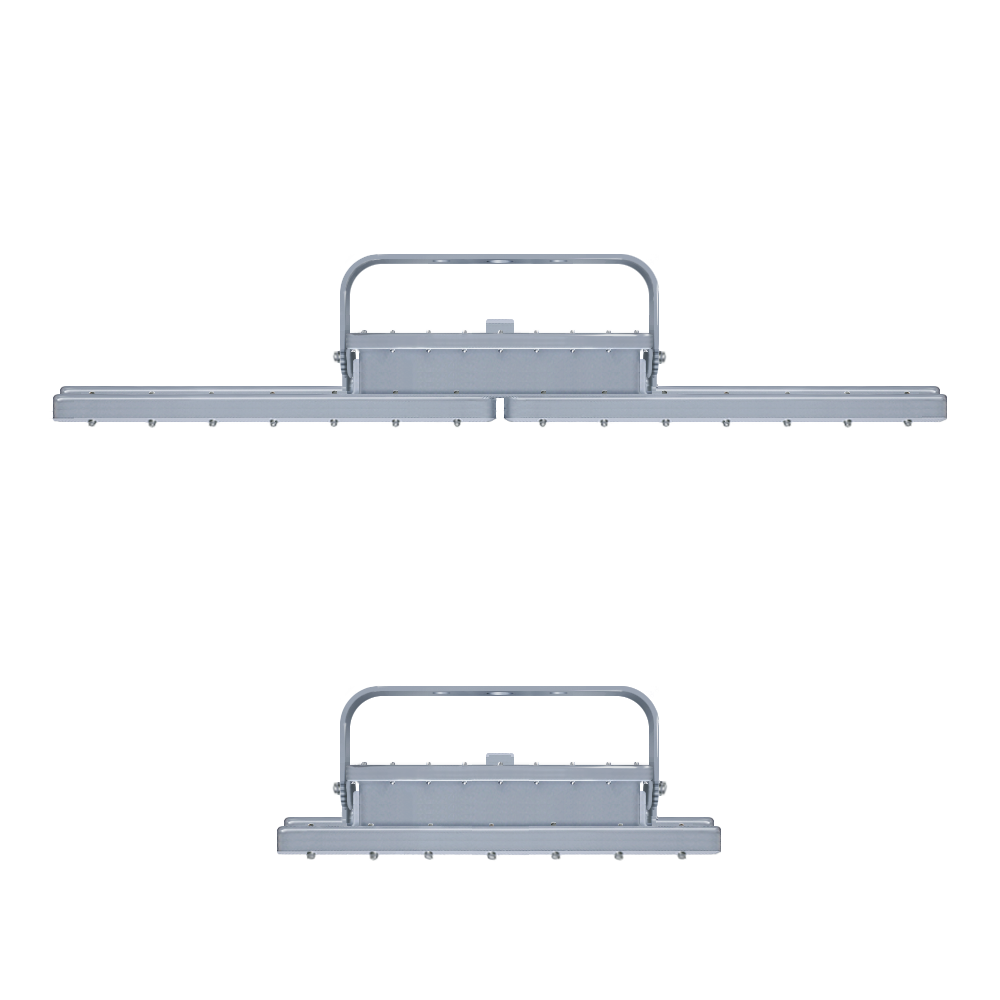

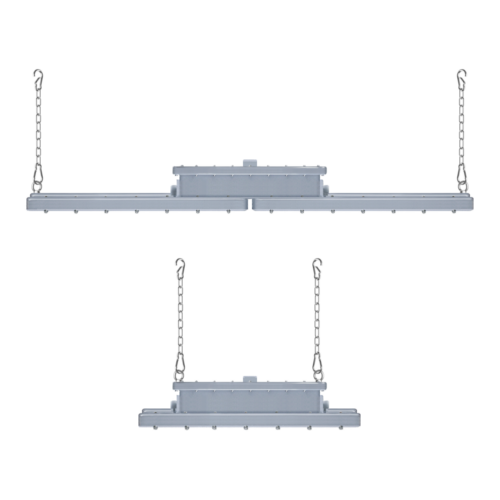

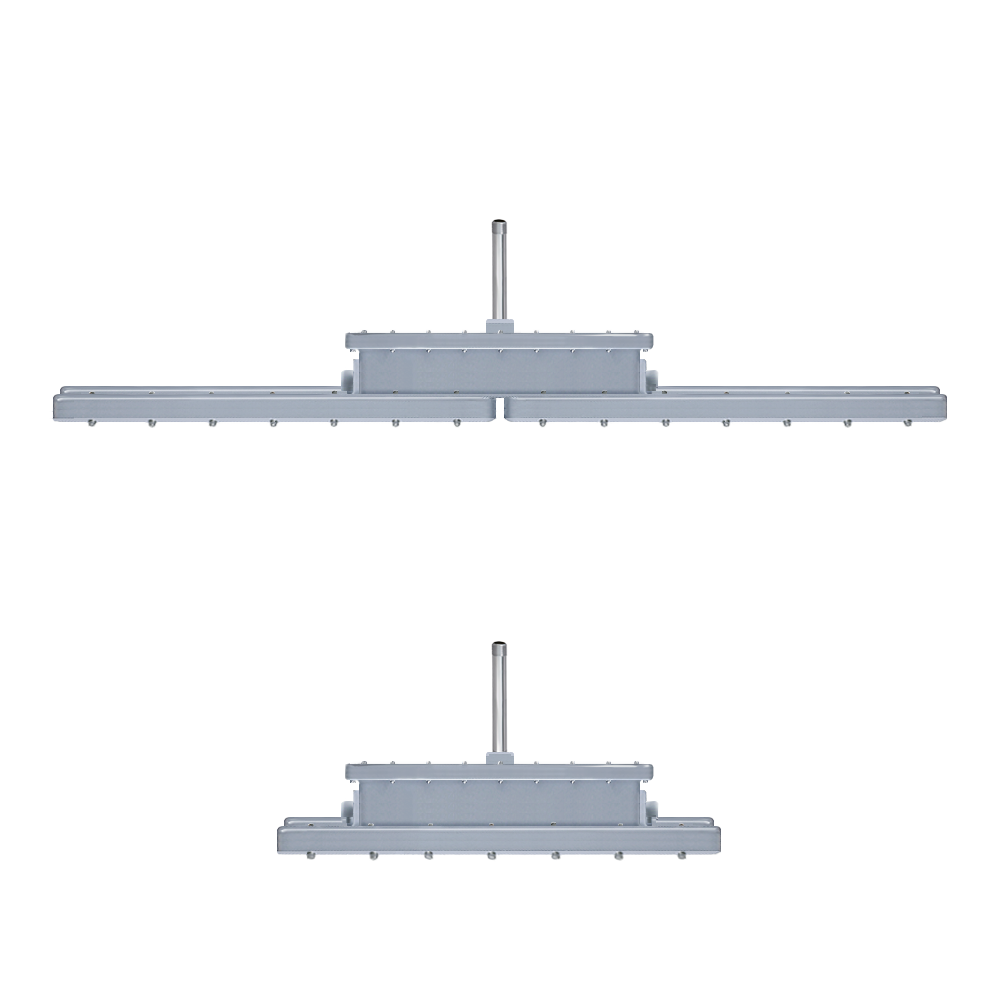

See specification sheet for product ordering selection, mounting options, weights and dimensions.
