Compatible with the Solas Ray CESNN and RCWLUE series emergency lights

CERTIFICATIONS / RATINGS

• UL Listed
• UL924
• NFPA 101 Life Safety Code
• NEC
• OSHA
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

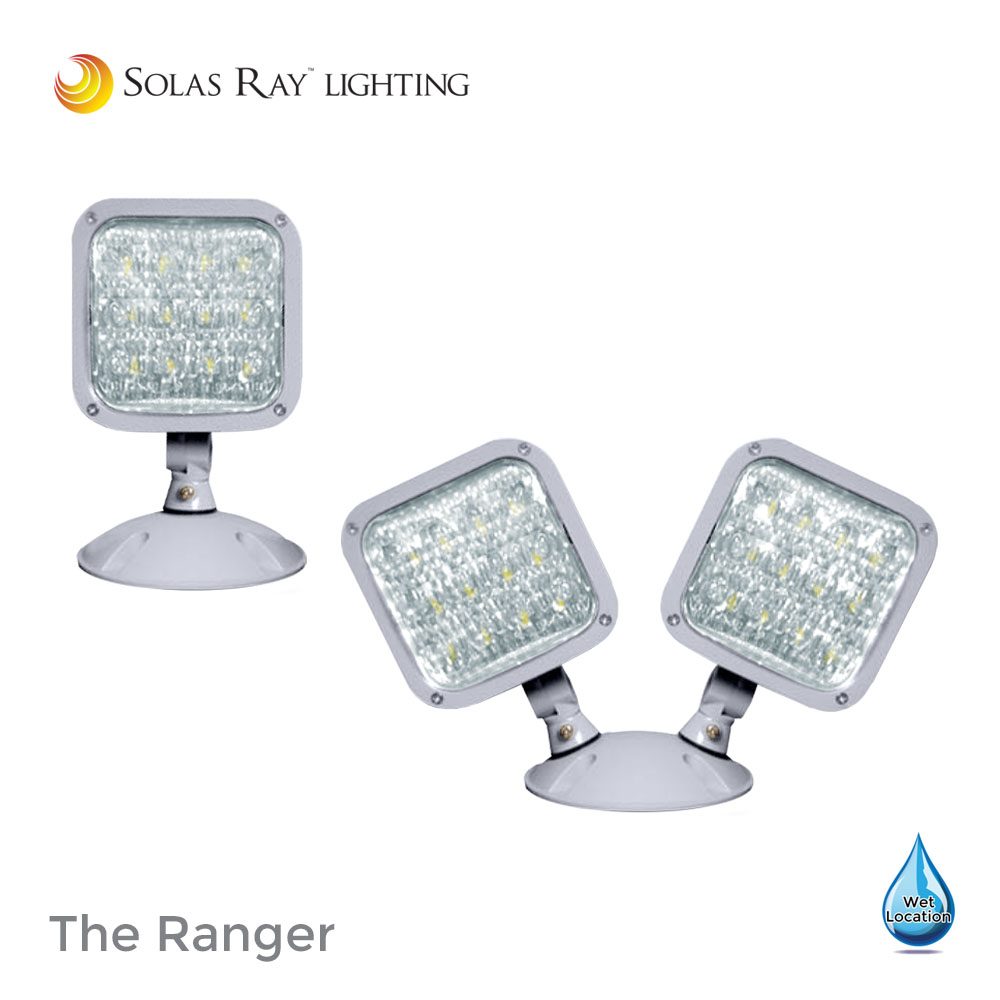

• Remote heads designed for use as part of an emergency lighting system in indoor and outdoor applications.
• 1 or 2 LED Heads – 1.5W each.
• Powered by low voltage source (3.6V / 6V / 9.6V / 12V DC).
• UL listed for wet locations.

DOWNLOADS

SPECIFICATIONS

ELECTRICAL
• Powered from external power source, (3.6V, 6V, 9.6V, or 12V), with low voltage wiring (not provided)

HOUSING
• Engineering grade, high-impact resistant polycarbonate in gray or black finish.

LISTING & RATINGS
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for wet locations.
• -30°C (-22°F) to 50°C (122°F).

MOUNTING
• Universal mounting adapter plate included with mounting hardware.
• Distance of maximum run is determined by system voltage, wire gauge and total maximum wattage on the run.
• Suitable for wall or ceiling mount.

LED / OPTICS
• Adjustable long lasting and efficient 1.5 watt, (12 LEDs x 0.125 watt per head)
• Ultra-bright white LED lamp heads.
• High performance chrome-plated metalized reflector and plastic lens provides optimal light distribution and center-to-center spacing.

WARRANTY / LISTING
• Five year limited warranty.

See specification sheet for product ordering selection, mounting options, weights and dimensions.
