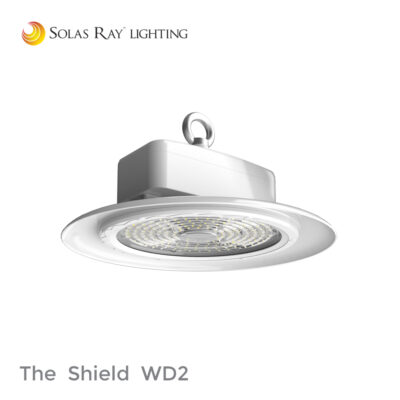

WD2 Series – The Shield™ WD2 High Bay
Washdown / Food Service / NSF Rated
CERTIFICATIONS / RATINGS
• ETL Listed
• NSF
• IP66
• IP69K
• IK08
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Specifically designed for food processing environments and wash-downs.
• Seamless construction and smooth curved upper surfaces resist water accumulation.
• NSF rated for use in food processing environments.
• IP66 / IP69K protection ratings.
• Pressure wash ready – passed ISO 20653:2013.
• IK08 impact rating.
• Built in microwave motion sensor available.
• 4kV line-line, 4kV line-earth surge protection.
• 1-10 volt dimming.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC / 277-480 VAC |
| Wattage | 100W / 120W / 150W / 200W |
| Color Temp | 5000 / 4000 / 3000 Kelvin |
| Housing | Corrosion resistant aluminum alloy |
| Color | White |
| Lens | Clear polycarbonate / optic lens |
| Lifetime | >100,000 hrs L70 |
| Ambient Temperature | -30°C (-22°F) to 45°C (113°F) |
| CRI | Ra80 |
| Beam Angles | 60° / 90° / 120° |
| UGR | <28 |
| Power Factor | >0.95 |
| Protection | IP66 / IP69K |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 100W | 120W | 150W | 200W |
| 14,000 | 16,800 | 21,000 | 28,000 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
