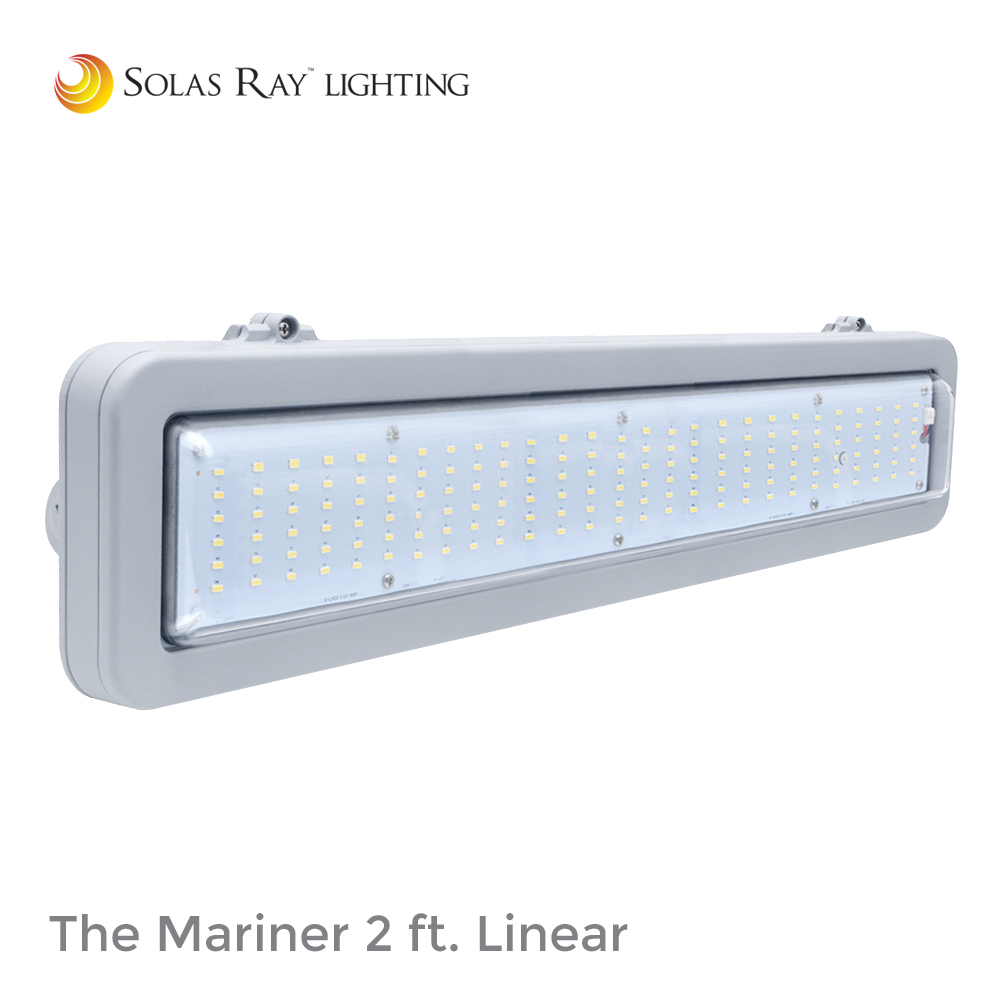

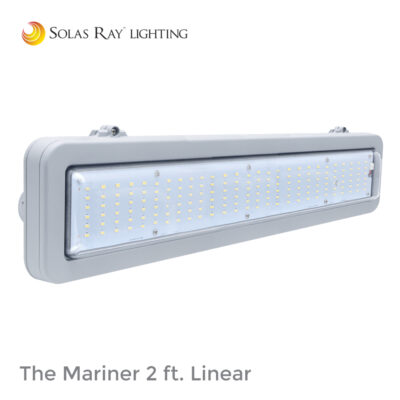

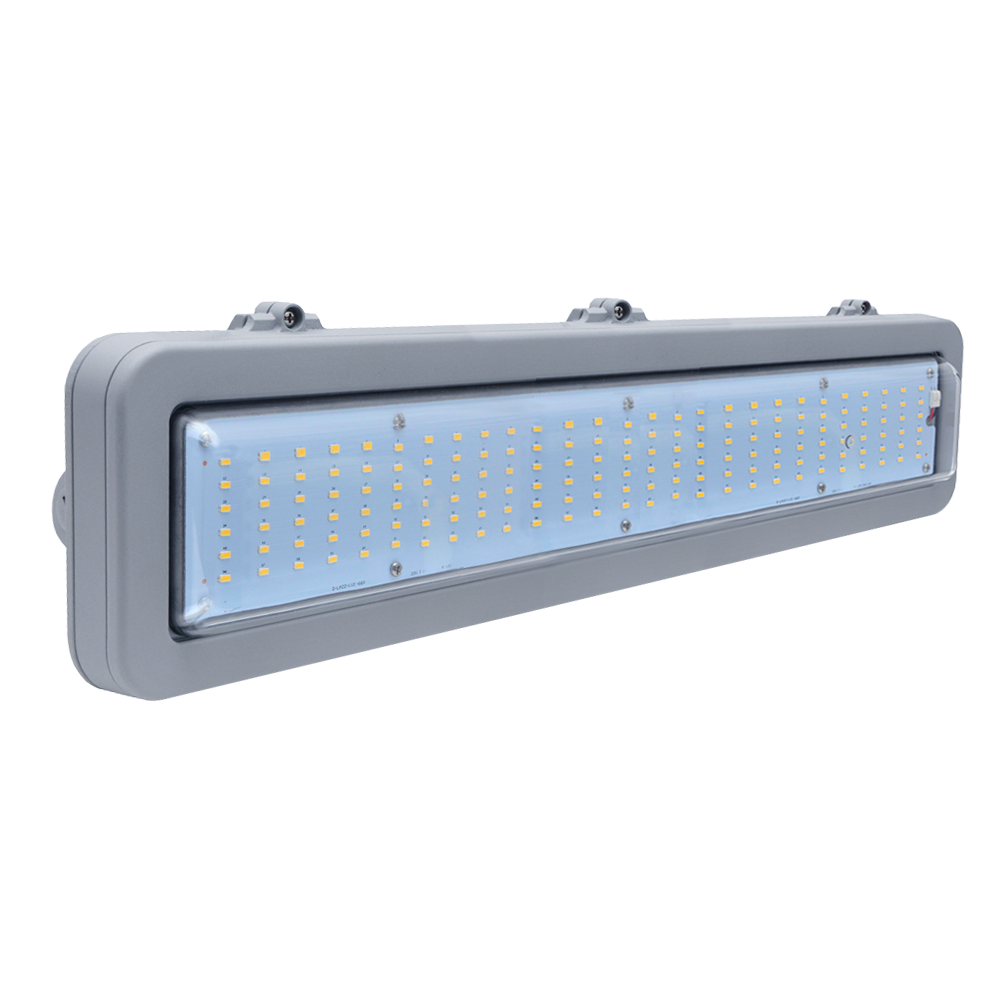

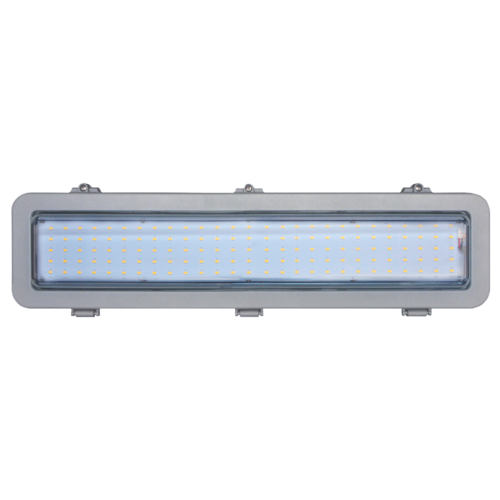

LQ Series – The Mariner™ 2
CERTIFICATIONS / RATINGS
• CSA Listed
• IP66
• UL1598
• UL8750
FEATURES AND BENEFITS
• Heavy-duty die-cast aluminum housing.
• Tapped conduit entry, all four sides.
• Gray powder-coat finish over a chromate conversion coating.
• Clear or opal polycarbonate vandal-resistant lens.
• Natatorium approved.
• Easy installation and maintenance.
• Sensors and emergency battery backup options available.
• 0-10v dimming driver.
• Buy American Act compliant.
DOWNLOADS
OTHER AVAILABLE MARINERS
The Mariner is available in 1’, 2’ and 4’ lengths in both hazardous location and non-hazardous versions.
| 1 ft | Hazardous Locations | See HQH1/HQH1C/HQV1 Series |
| 2 ft | Hazardous Locations | See HQH2 Series |
| 4 ft | Hazardous Locations | See HQH4 Series |
| 1 ft | Non-hazardous | See LQH1/LQH1H/LQV1C Series |
| 2 ft | Non-hazardous | See LQH2 Series |
| 4 ft | Non-hazardous | See LQH4 Series |
SPECIFICATIONS
| Voltage | 120-277 VAC / 347-480 VAC |
| Wattage | 58W / 77W |
| Color Temp | 4000 / 5000 Kelvin |
| Housing | Die-cast aluminum |
| Color | Gray |
| Lens | Clear Polycarbonate (Standard) |
| Opal Polycarbonate (Optional) | |
| Lifetime | 138,000 hrs L70 |
| Ambient Temp. | -40°C (-40°F) to 50°C (122°F) |
| CRI | ≥80 |
| Power Factor | >0.90 |
| Efficacy | 98 to 134 lm/W |
| Protection | IP66 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Watts | Kelvin | Clear Lens | Opal Lens |
| 58W | 4000K | 7,017 lm | 5,695 lm |
| 5000K | 7,309 lm | 5,932 lm | |
| 77W | 4000K | 9,882 lm | 8,021 lm |
| 5000K | 10,294 lm | 8,356 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
LQH2
