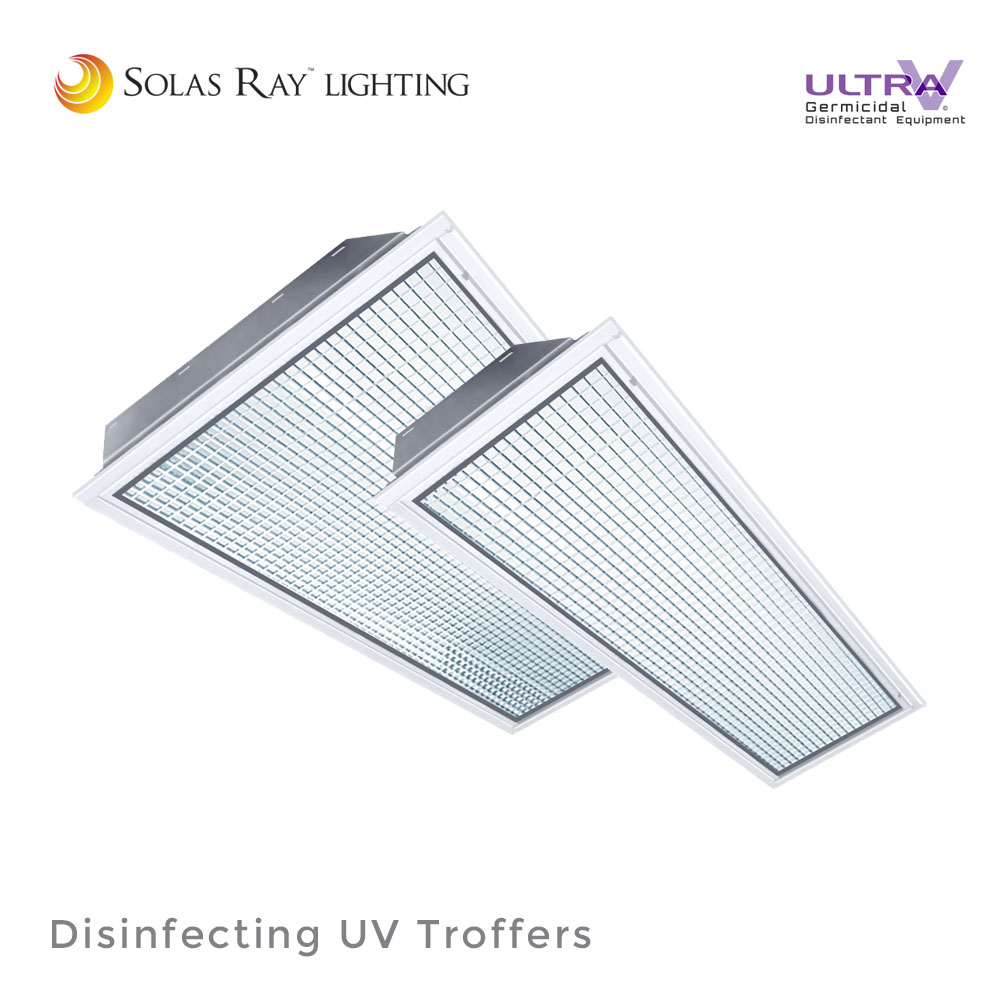

Germicidal Recessed Troffers

  • Direct air and surface sterilization of DNA-based contaminants.
  • Mounts flush with lay-in ceiling grid or plaster ceilings (Type E & Type M).
  • 2’ x 4’ units can use two fluorescent and two germicidal lamps, or four germicidal lamps per fixture.
  • 1’ x 4’ unit uses two germicidal lamps.
  • Germicidal lamps are 254 nm / 12,000 hour life. (less then 8mg of mercury/lamp)
  • Lamps are well shielded for vision safety.
  • Spectrally-polished reflectors maximize UVC output.
  • “Egg-crate” louver allows UVC energy to pass and additional reflectivity.
Applications
  • Hospitals
  • Prisons
  • Clinics
  • Clean Rooms
  • Laboratories
  • Autopsy Rooms
  • Sterile Packaging
  • Contagion Wards
  • Chemistry Lab
  • Bakery
  • Bottling Plant
  • Brewery
  • Food Processing
  • Delivery Room
  • Ampule Filling
  • Pediatric Wards
  • Cosmetic Manufacturing
  • Areas requiring a clean curtain of air treatment for entering occupants.
