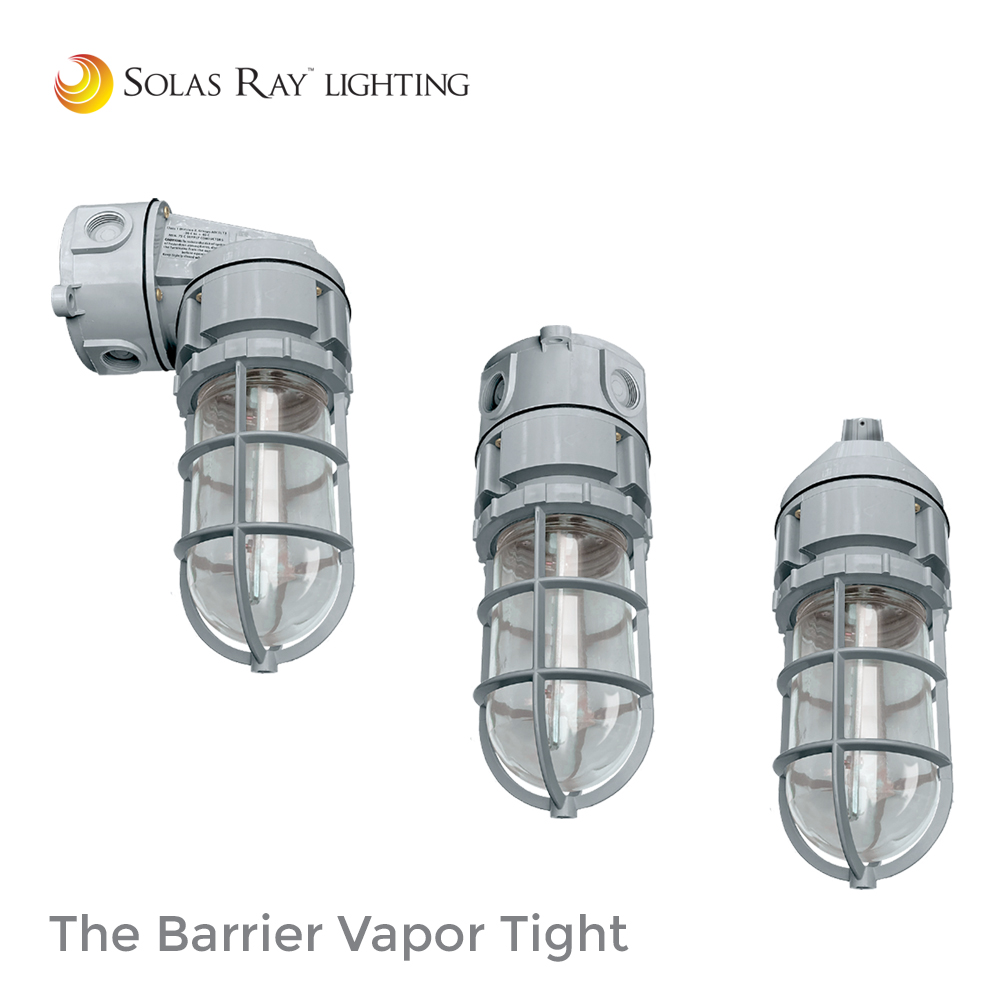

IBVT Series – The Barrier™ Vapor Tight
CERTIFICATIONS / RATINGS
• ETL
• UL1598
• UL1598A
• IP66
FEATURES AND BENEFITS
• Ambient temperature capabilities: -30˚C to 50˚C (122˚F).
• Corrosion resistant, marine grade, polyester thermoplastic housing.
• Impact resistant tempered glass globe with plastic guard.
• Neoprene gaskets seal each mounting option.
• Optional lens selection includes; red, green, blue, white and amber.
• Clear lens standard.
• Wet location rated.
• Buy American Act compliant.
Hazardous location rated version available (See HBVT Series)
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC |
| Wattage | 16W |
| Lumens | 1,150 Lm |
| Color Temp | 5000 Kelvin |
| Ambient Temperature | -30°C (-22°F) to 50°C (122°F) |
| T-Rating | T3 |
| Housing | Polyester thermoplastic |
| Color | Gray |
| Lens | Tempered glass globe |
| Lifetime | 50,000 hrs rated life |
| CRI | >80 |
| Efficacy | 72 Lm/W |
| Power Factor | >0.95 |
| Protection | IP66 |
| NPT | 3/4” |
| Warranty | 5 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
