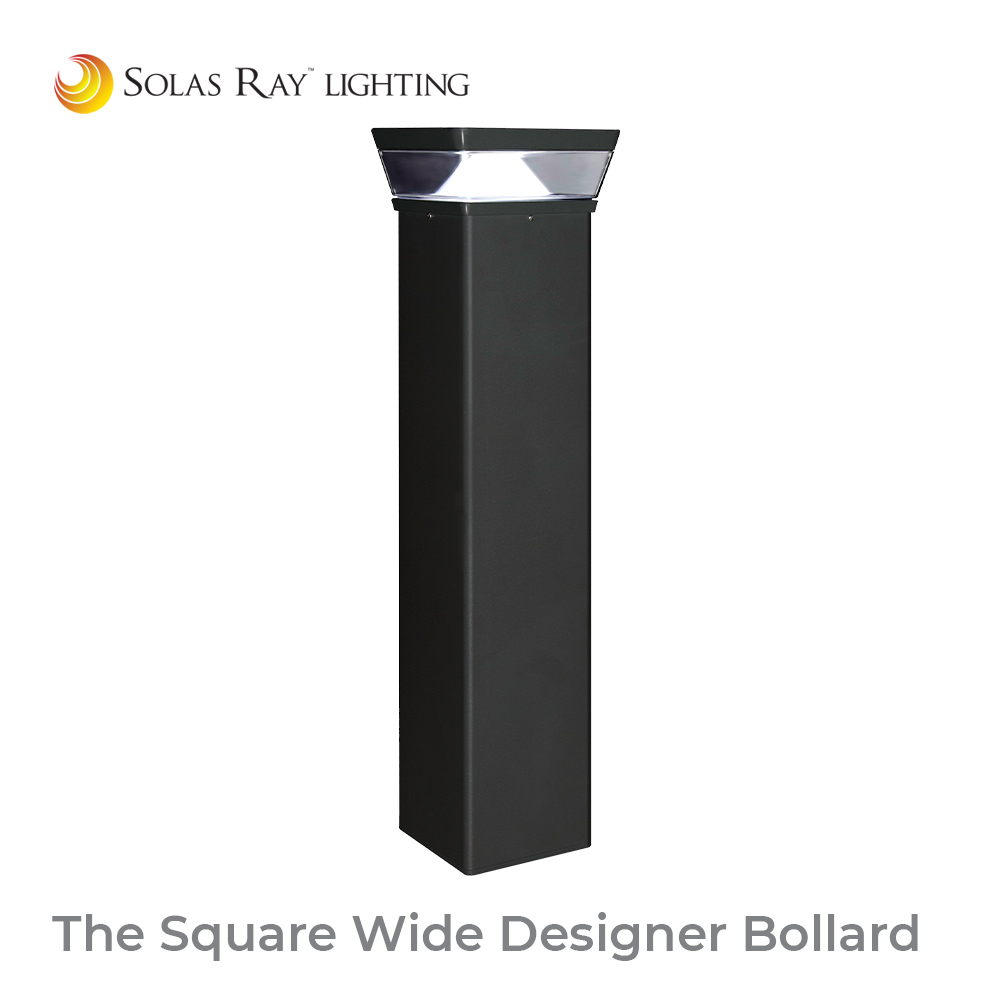

BQSO Series – Square Wide Designer Bollard

CERTIFICATIONS / RATINGS

• CSA Listed
• IP65
• UL1598
• UL8750

FEATURES AND BENEFITS

These uniquely stylized LED Bollards are designed using LED technology and produced to provide uniform lighting while accenting any landscape. They provide low glare and highly cost-effective pathway lighting.

Solas Ray™ Designer Bollards become the featured addition to illuminate and accent landscaping, walkways, buildings, hospitals, office buildings, schools and parking areas. Anywhere security, visibility and safety is needed, ask for quality, demand performance and expect reliability from Solas Ray bollards

• Includes mounting kit with 8” anchor bolts.
• Custom heights and colors are available upon request.
• 0-10V dimming driver.
• Buy American Act compliant.

Buy American Act

DOWNLOADS





SPECIFICATIONS

Voltage 120-277 VAC
Wattage 16W / 23W / 34W
Color Temp 3000 / 4000 Kelvin
Housing Extruded aluminum housing with vandal-resistant hardware.
Finish Powder-coat finish over chromate conversion coating.
Color Architectural bronze / black / custom
Lens Clear UV-stabilized polycarbonate
Lifetime 187,000 hrs L70 (@ 25°C/77°F)
Ambient Temperature -20°C (-4°F) to +40°C (104°F)
Protection IP66
Warranty 5 Year Limited Warranty

LUMENS

Series Kelvin 16W 23W 34W
BQSO (Square) 3000K 1,432 lm 2,005 lm 3,008 lm
4000K 1,554 m 2,175 lm 3,263 lm
BQRO (Round) 3000K 1,406 lm 1,968 lm 2,952 lm
4000K 1,525 lm 2,135 lm 3,202 lm

See specification sheet for product ordering selection, mounting options, weights and dimensions.
