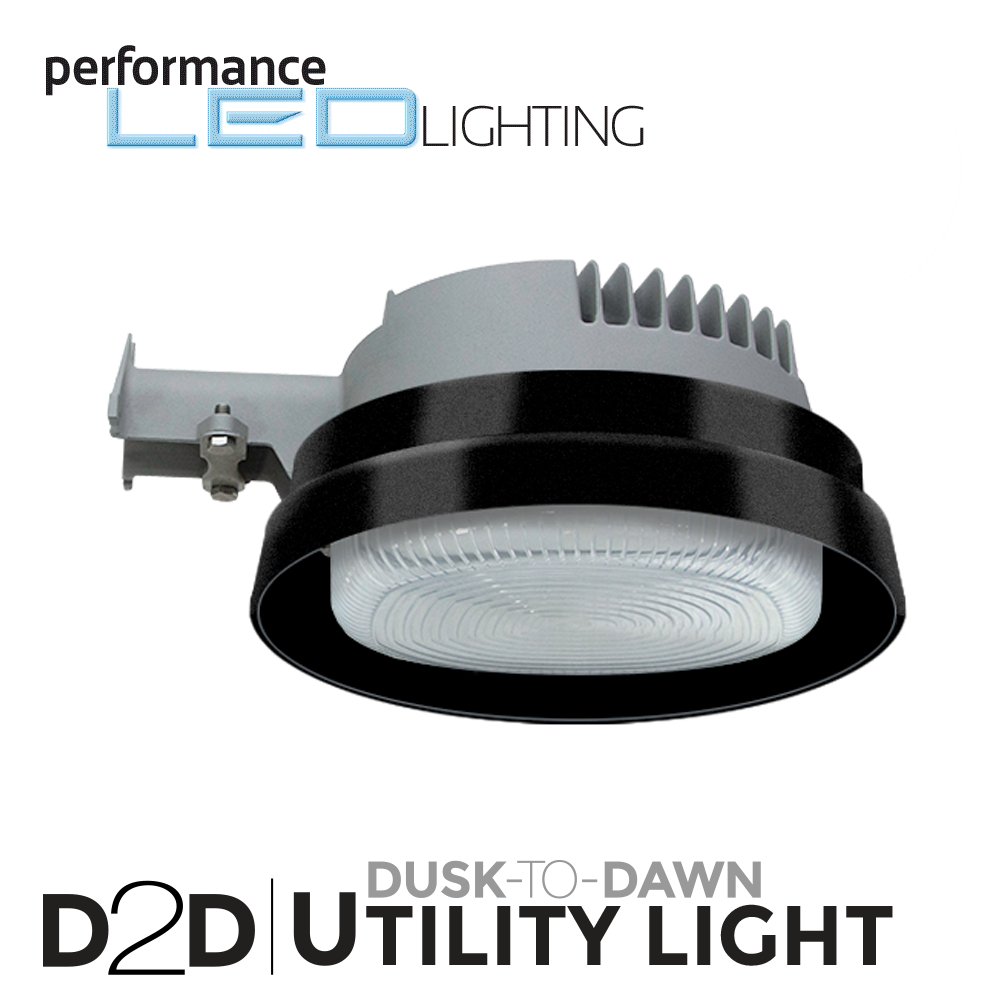

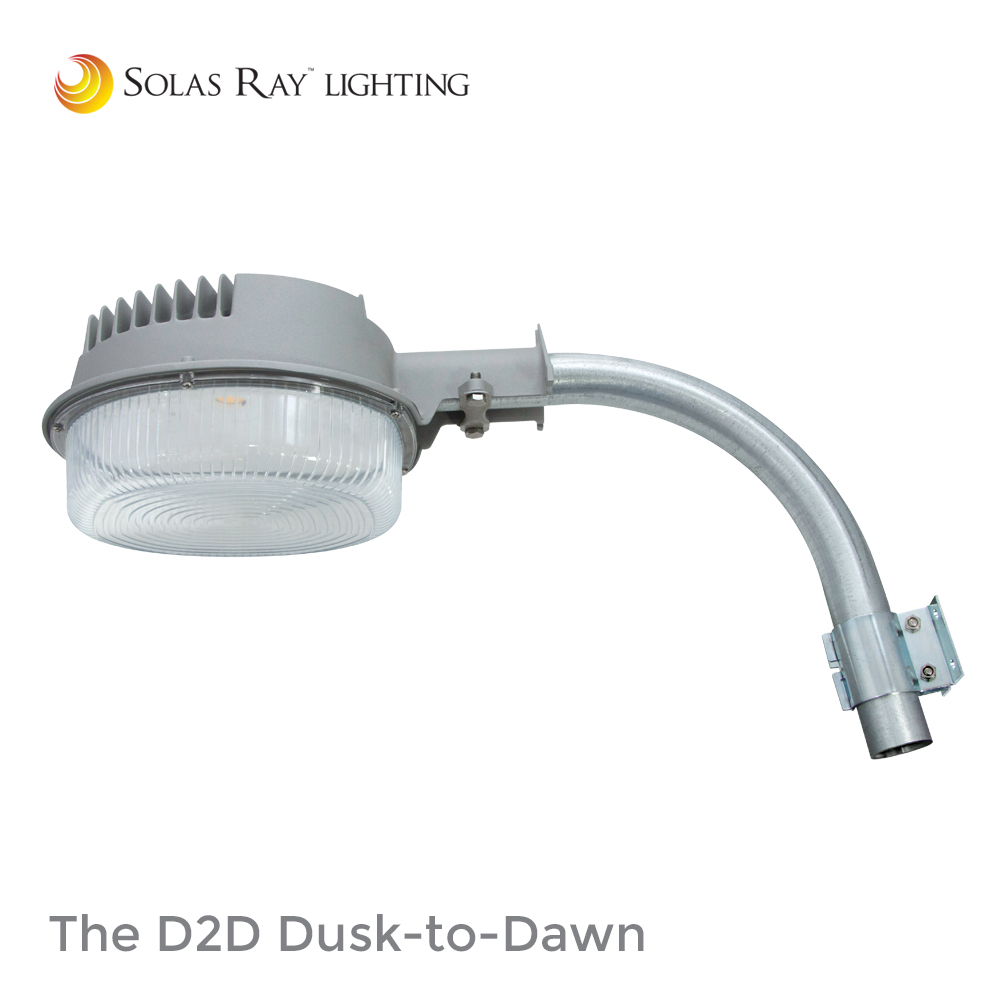

UQDD Series – D2D Dusk-to-Dawn
LED UTILITY LIGHT / PARKING LOT LIGHT
CERTIFICATIONS / RATINGS
• ETL Listed
• IP66
• UL 1598
KEY FEATURES AND BENEFITS
• Energy efficient 42 watt (175W HID equivalent).

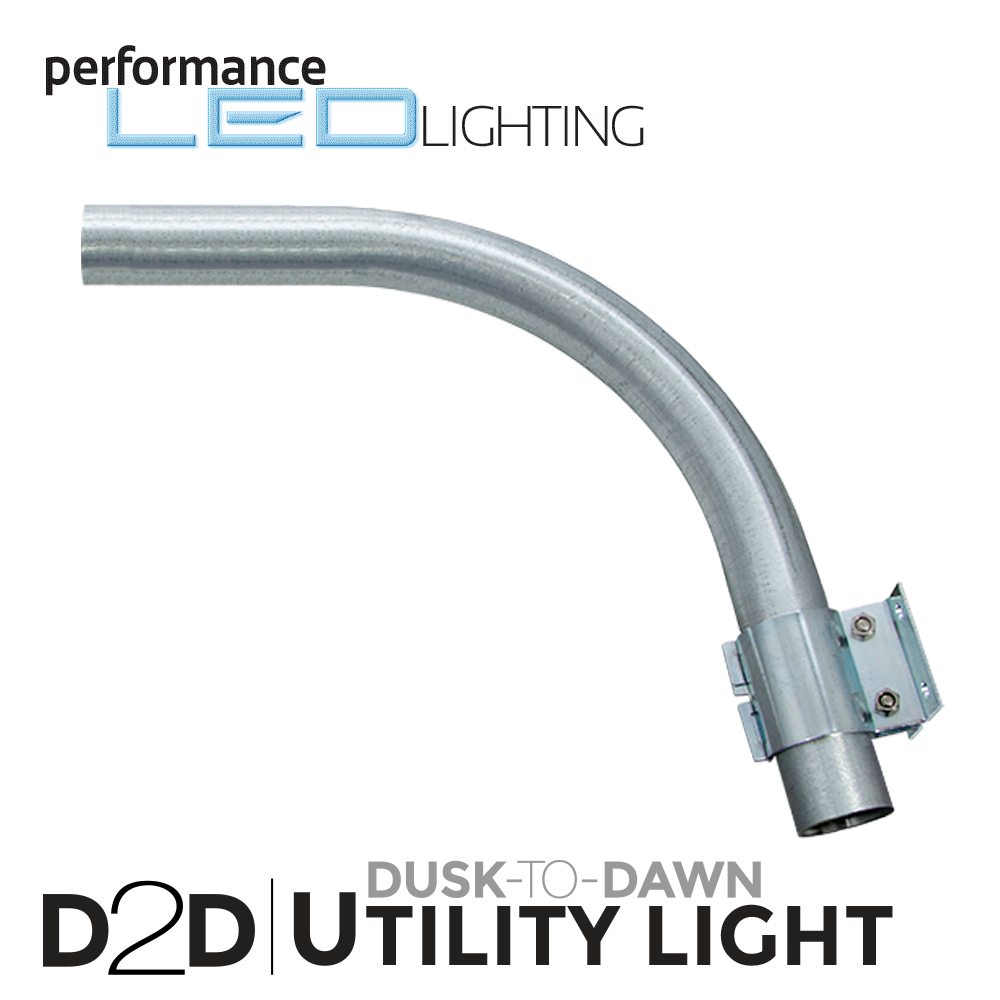

• Optional slip-fit easy mounting galvanized pipe bracket.
• Optical prismatic lens designed to replace HID lighting systems.
• Easily replaces HID from 100W to 175W MH or HPS.
• Sealed LED array compartment.
• Gray powder-coat finish over a chromate conversion coating for durability.
• Suggested mounting heights of 10 – 20 feet.
• Nickel-plated stainless steel hardware.
• Dusk to dawn automatic photocell included.
• 0-10v dimming.
• Wet location approved.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277VAC |
| Lumens | 3,872 |
| Wattage | 42W (175W HID equivalent) |
| Color Temp | 4100 Kelvin |
| Housing | Die cast gasketed aluminum |
| Color | Gray / Custom |
| Lens | Clear prismatic UV-stabilized polycarbonate |
| Lifetime | 72,000 hrs L70 |
| Ambient Temperature | -40°C (-40°F) to 50°C (122°F) |
| Beam Angle | Type V |
| Power Factor | >0.90 |
| Protection | IP66 |
| Warranty | 5 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
