SHL Series – The Challenger SHL

Wireless Control Linear LED Lighting System



CERTIFICATIONS / RATINGS

• UL Listed
• DLC 5.1 Premium
• UL 1598
• FCC
• RoHS Compliant
• See Specification Sheet For Complete Listing

FEATURES AND BENEFITS

• Available in 4’ and 8’ lengths.

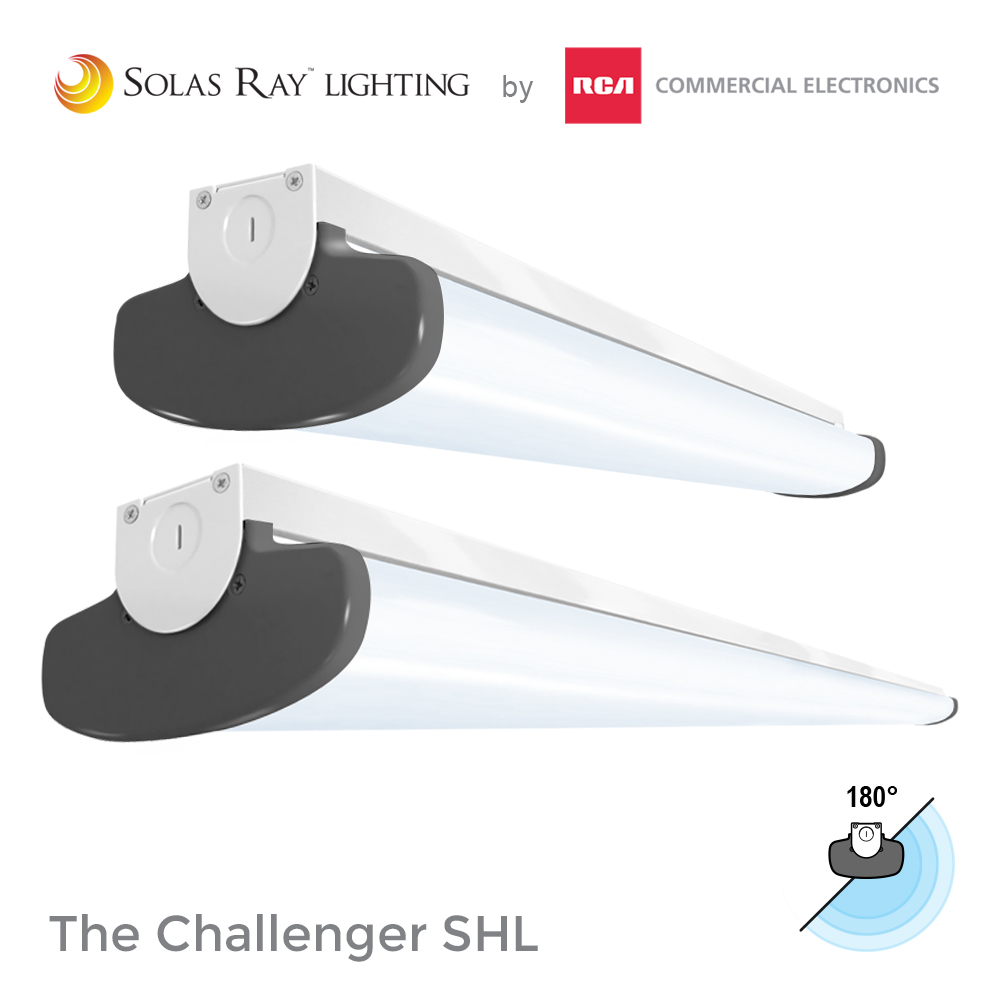

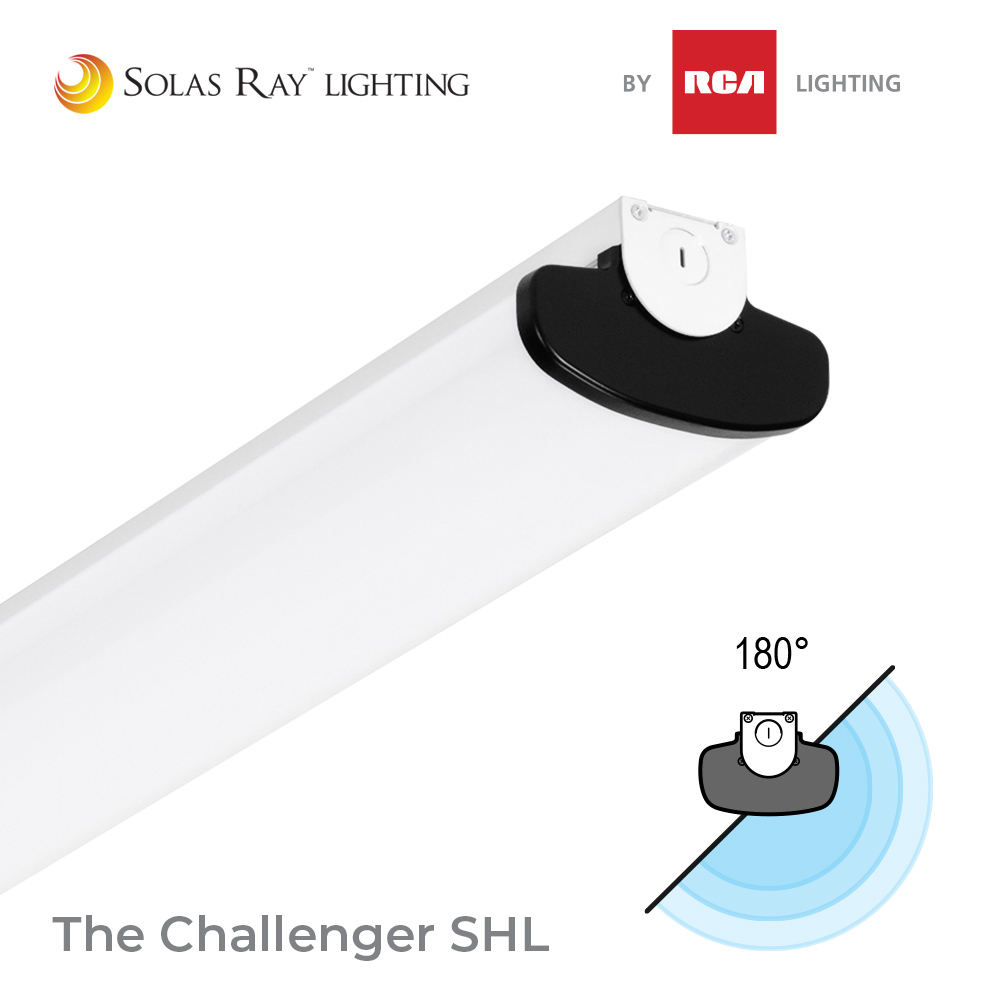

• 180° asymmetric beam angle.
• DLC 5.1 Premium listed.

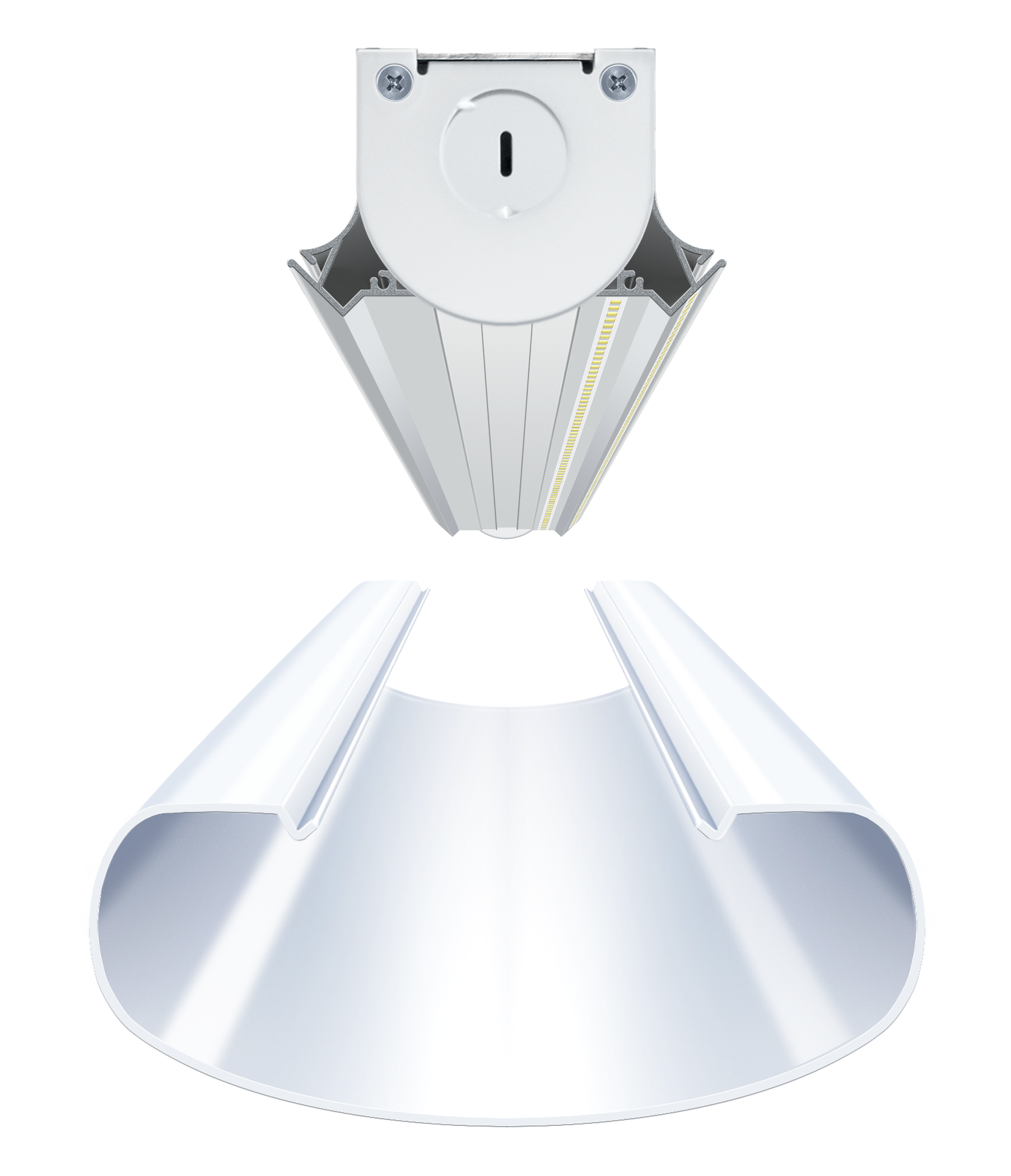

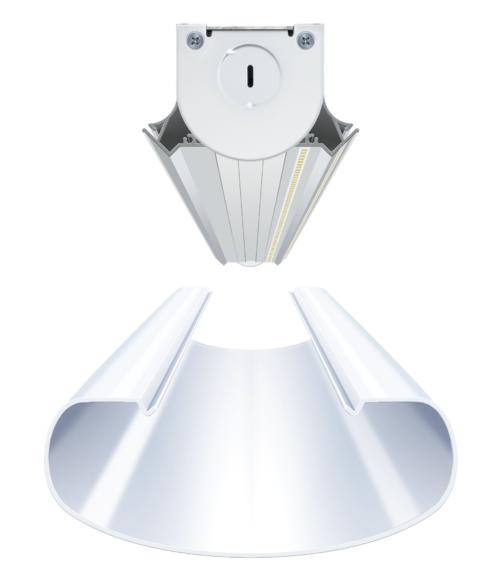

• Precision angled LED arrays establish exact light distribution.
• Plug-and-play ZigBee enabled lighting controls.
• Optional multi-sensor – requires harness on SH and SHL models.
• Diffused polycarbonate lenses eliminate glare and hot spots.

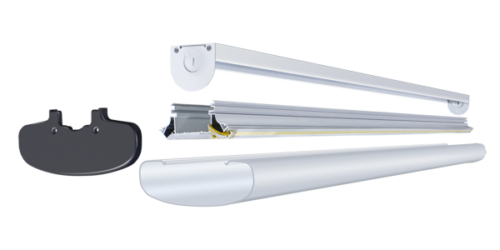

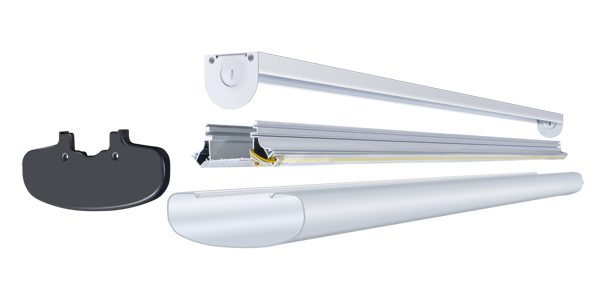

• Lightweight and installer friendly – quick access channel for end-to-end wiring.
• Extruded aluminum housing.
• Low profile fixture body expands mounting possibilities.
• Black end caps – color coded for quick visual identification.
• Lead free.
• Trade Agreement Act Compliant.

DOWNLOADS



SPECIFICATIONS

Voltage 120- 277VAC
Wattage 67W (4’ models) / 100W (8’ models)
Color Temp 5000 Kelvin standard (4000K/3500K special order)
Housing Extruded aluminum alloy
Color White with black end-caps
Lens Polycarbonate
Lifetime 50,000 hrs L80
CRI Ra ≥ 80
Beam Angle 180°
Power Factor cos ≥ 0.9
Efficacy (4’ models) 152 lm/W
Efficacy (8’ models) 154 lm/W
Ambient Temperature -10°C (14°F) to 40°C (104°F)
Warranty 5 Year Limited Warranty

LUMENS

Color Temp 67W (4ft) 100W (8ft)
5000K 10,178 lm 15,373 lm
4000K* 10,083 lm 15,650 lm
3500K* 9,988 lm 15,250 lm
* 4000K / 3500K special order, consult factory for lead times and minimums.

See specification sheet for product ordering selection, mounting options, weights and dimensions.
