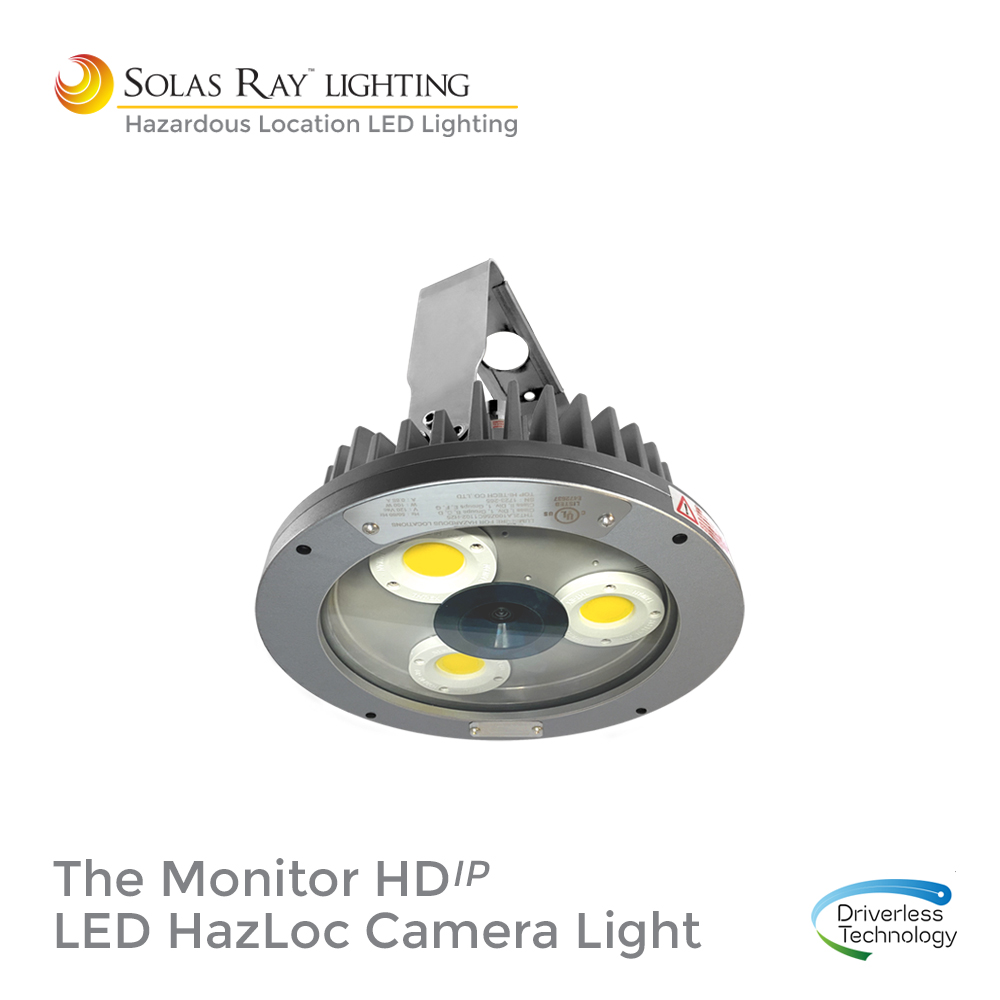

HTR92HDIP Series – The Monitor™ HDIP

Hazardous Location Camera Light


CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires | UL 8750

NEC and CEC
• Class I Div 2 – Groups A, B, C, D

•  CSA C22.2 No. 137-M1981
• IP67
• NEMA 6
• RoHS Compliant
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

• Innovative HD camera and hazardous location LED light in one package.
• Vibration / anti-resonance design.
• Crush resistant with high impact resistance.
• Marine grade housing / salt water spray resistant.
• Atmospheric pressure tolerance up to 1 meter depth.
• Factory installed cable gland is standard.
• Rated IP67 / NEMA 6.
• HD power over Ethernet (PoE) camera with IP capabilities.
• Trade Agreement Act compliant.

DOWNLOADS







SPECIFICATIONS

Voltage 120 VAC / 277 VAC / 480 VAC
Wattage 40w / 60w
Color Temp  3000 / 5000 Kelvin
Ambient Temperature -40°C (-40°F) to 40°C (104°F)
T-Rating T4
Housing Coated copper free aluminum alloy
Color Gray
Lens Tempered glass
Lifetime 60,000 hrs L70
CRI ≥ 80 (3000K) / ≥70 (5000K)
Beam Angles X-110° / Y-110°
Power Factor cos ≥ 0.9, cos ≥ 0.87 (480vAC)
Protection IP67 / NEMA 6
Warranty 5 Year Limited Warranty

HDIP CAMERA SPECIFICATIONS

Resolution 2 mega pixels, Full HD 1080P (1080P / 720P)
Video Compression H.263 High / Main Profile, Motion JPG
PoE IEEE 802.3af (Power Over Ethernet)
PC Requirements CPU: Intel i3 or above
OS: Windows 7, Windows 8, Windows 10
RAM: 4GB or more / Dedicated graphics card
Surveillance Capability ONVIF Compatible

LUMENS

Kelvin 40w 60w
3000K 3,800 lm 5,600 lm
5000K 4,200 lm 6,200 lm

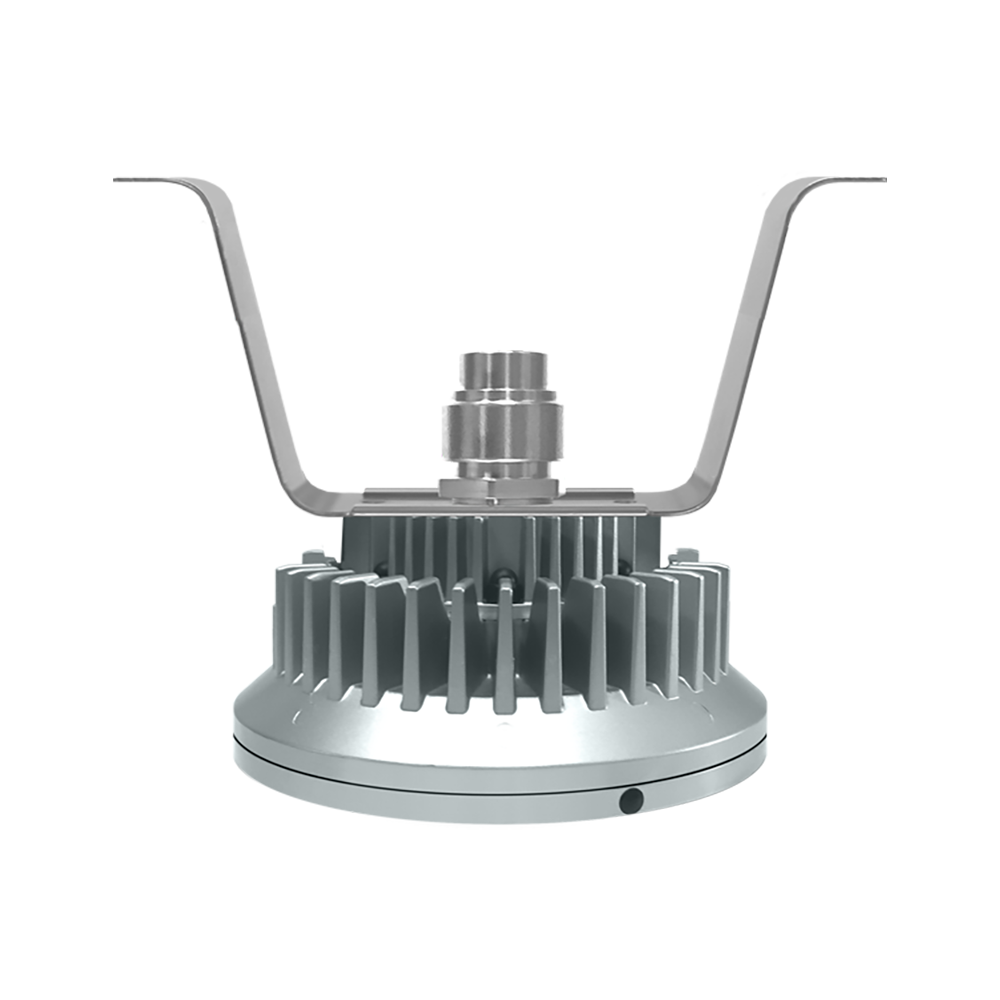

See specification sheet for product ordering selection, mounting options, weights and dimensions.
