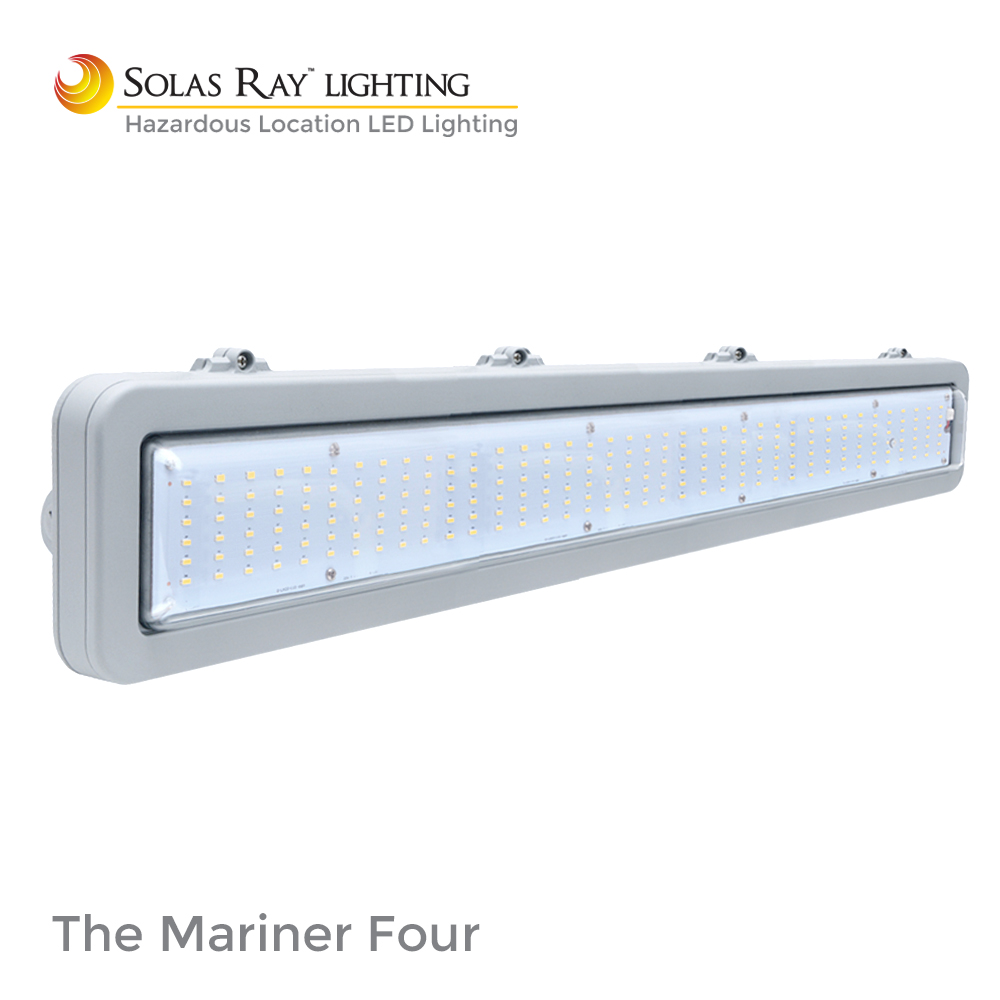

HW Series – The HazLoc Mariner™ 4
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations
NEC and CEC
• Class I Div 2 – Groups A, B, C, D
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Hazardous location ambient temperature capabilities: -25°C to 40°C (104°F).
• Suitable for wet locations.
• Heavy-duty die-cast aluminum housing.
• Tapped conduit entry, all four sides.
• Gray powder-coat finish over a chromate conversion coating.
• Clear or opal polycarbonate vandal-resistant lens.
• Internal surge protection – 6kV.
• Easy installation and maintenance.
• 0-10v dimming driver.
• Buy American Act Compliant.
DOWNLOADS
OTHER AVAILABLE MARINERS
The Mariner is available in 1’, 2’ and 4’ lengths in both hazardous location and non-hazardous versions.
| 1 ft | Hazardous Locations | See HQH1/HQH1C/HQV1 Series |
| 2 ft | Hazardous Locations | See HQH2 Series |
| 4 ft | Hazardous Locations | See HQH4 Series |
| 1 ft | Non-hazardous | See LQH1/LQH1H/LQV1C Series |
| 2 ft | Non-hazardous | See LQH2 Series |
| 4 ft | Non-hazardous | See LQH4 Series |
SPECIFICATIONS
| Voltage | 120-277 VAC / 347-480 VAC |
| Wattage | 126W / 152W |
| Color Temp | 4000 / 5000 Kelvin |
| Housing | Die-cast aluminum |
| Color | Gray |
| Lens | Clear Polycarbonate (Standard) |
| Opal Polycarbonate (Optional) | |
| Lifetime | 165,000 hrs L70 (@ 25°C) |
| Ambient Temp. | -25°C (-13°F) to 40°C (104°F) |
| CRI | ≥80 |
| Power Factor | >0.90 |
| Efficacy | 105 to 130 lm/W |
| T-Rating | T4 |
| NPT | 3/4” |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Watts | Kelvin | Clear Lens | Opal Lens |
| 126W | 4000K | 15,636 lm | 13,172 lm |
| 5000K | 16,287 lm | 13,720 lm | |
| 152W | 4000K | 18,982 lm | 15,930 lm |
| 5000K | 19,773 lm | 16,594 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
HQH4
