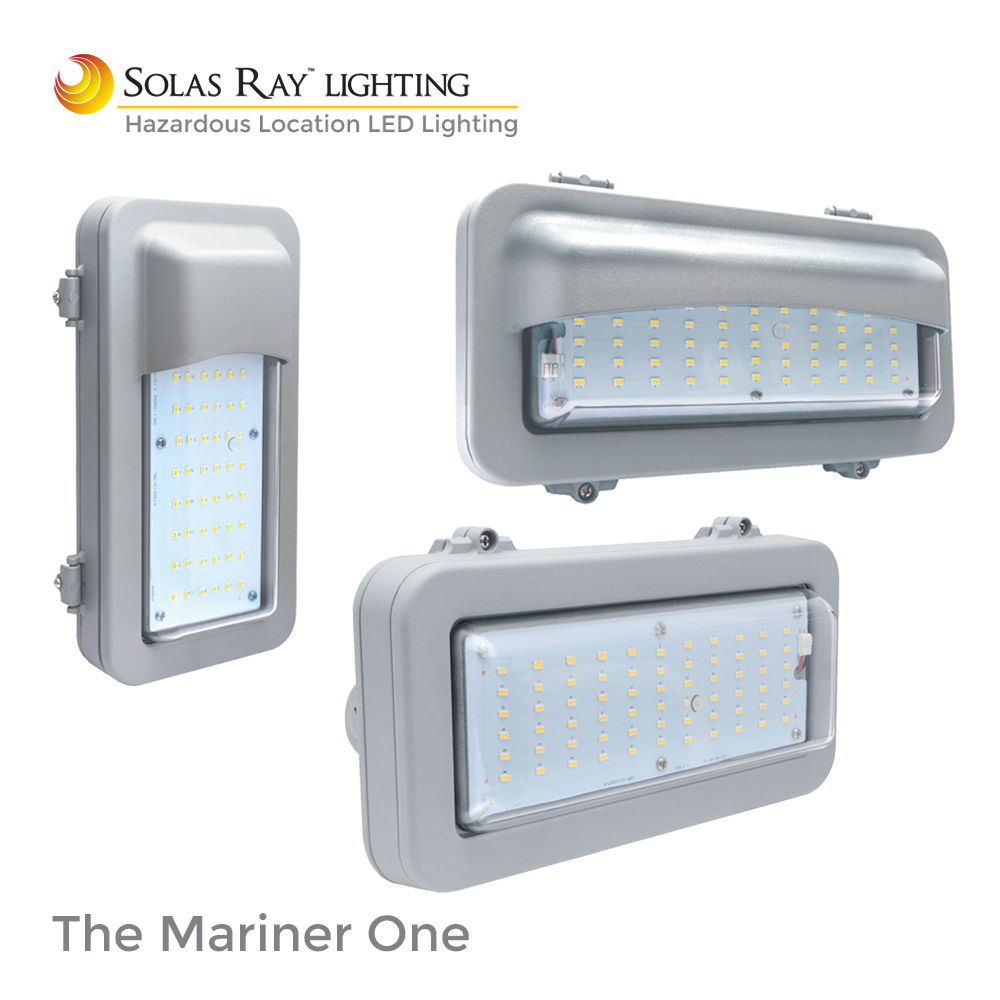

The Mariner Linear HazLoc 1 Footer

• Class I Division 2 (Flammable Gases & Vapors).
• HazLoc ambient temperature capabilities: -25˚C to 40˚C (104˚F).
• Heavy-Duty Die Cast Aluminum Housing.
• Tapped Conduit Entry All Four Sides.
• Gray Powdercoat Finish Over a Chromate Conversion Coating.
• Clear or Opal Polycarbonate Vandal-Resistant Lens.
• Internal Surge Protection – 2kV for 22w / 6kV for 37w.
• Easy installation and maintenance.
• Also available as Non-HazLoc Harsh Location.

MODEL DESCRIPTION WATTAGE CLEAR LENS OPAL LENS
HQH1-026 Open Frame 26 3,332 Lm 2,945 Lumens
HQH1-043 Open Frame 43 5,538 Lm 4,948 Lumens
HQH1C-026 Horizontal Hood 26 3,126 Lm 2,369 Lumens
HQH1C-043 Horizontal Hood 43 4,879 Lm 4,071 Lumens
HQV1C-026 Vertical Hood 26 3,305 Lm 2,705 Lumens
HQV1C-043 Vertical Hood 43 5,292 Lm 4,399 Lumens









HQH1-026-50-PC-U
HQH1-043-50-PC-U
HQH1C-026-50-PC-U
HQH1C-043-50-PC-U
HQV1C-026-50-PC-U
HQV1C-043-50-PC-U
