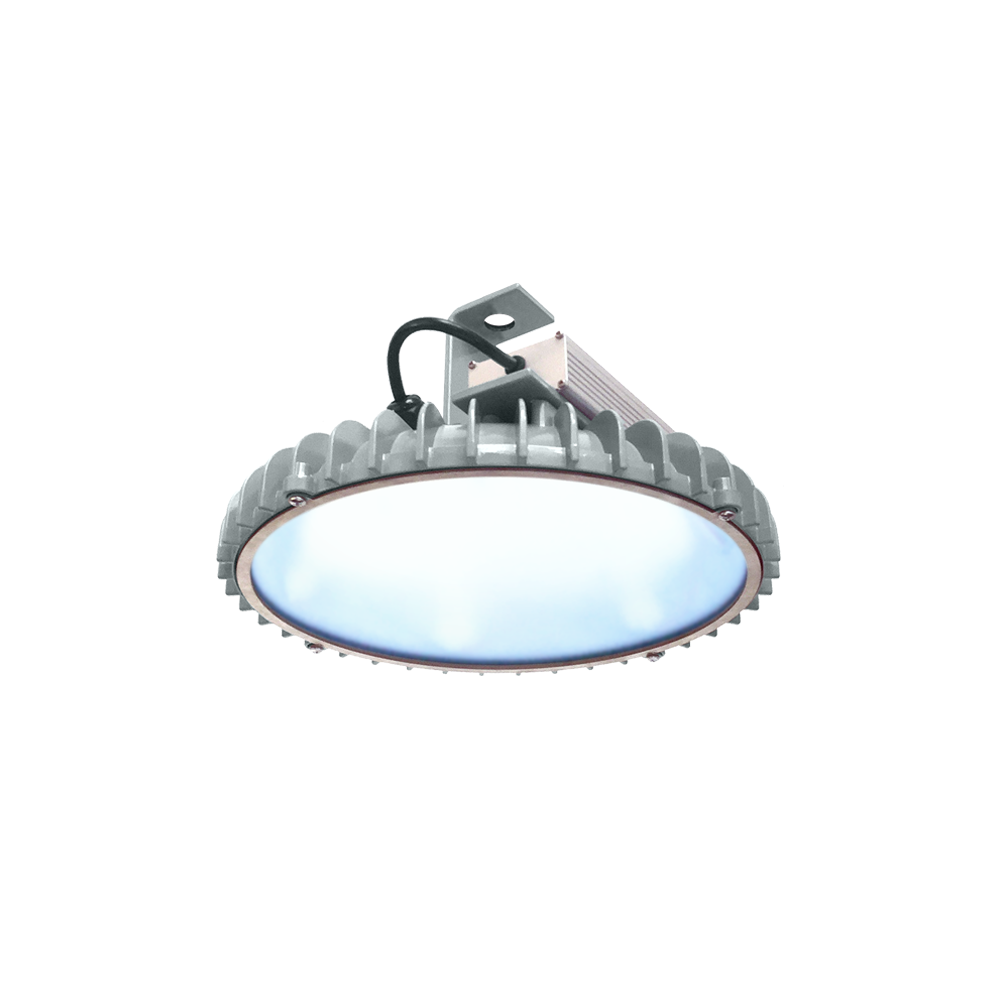

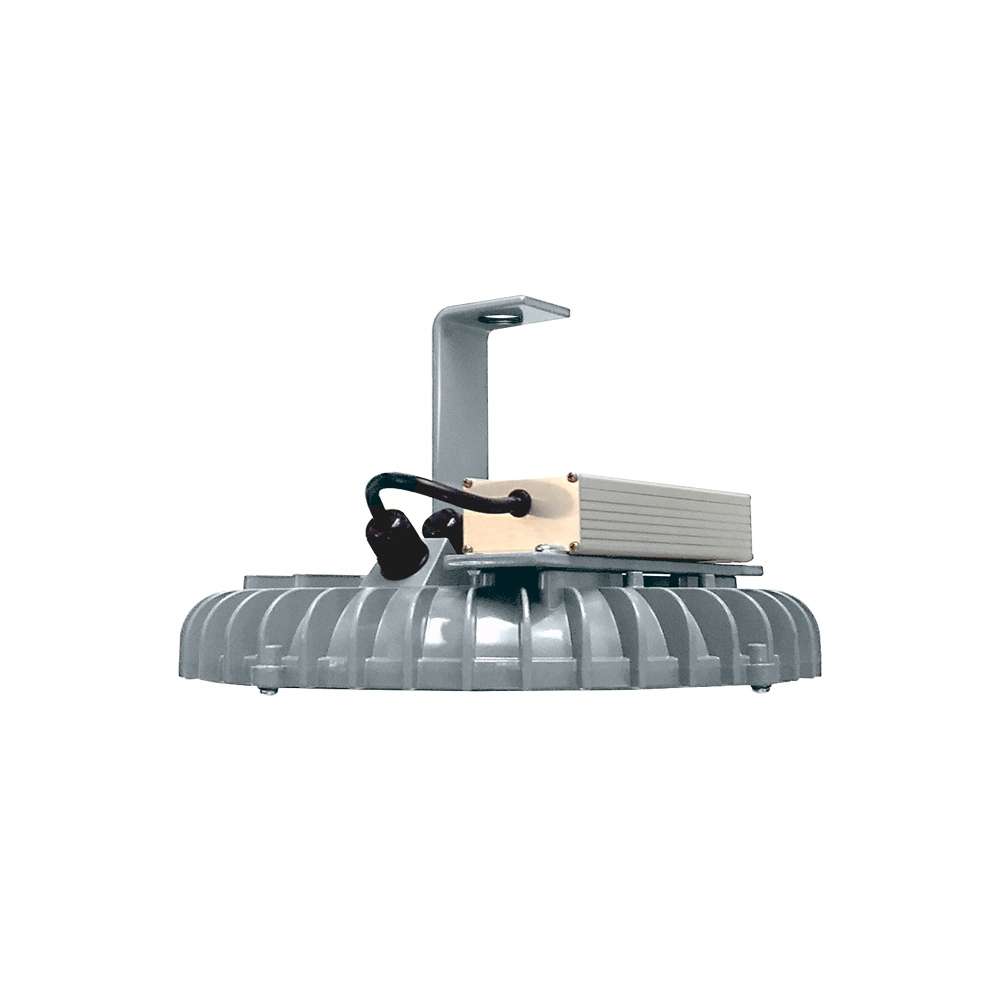

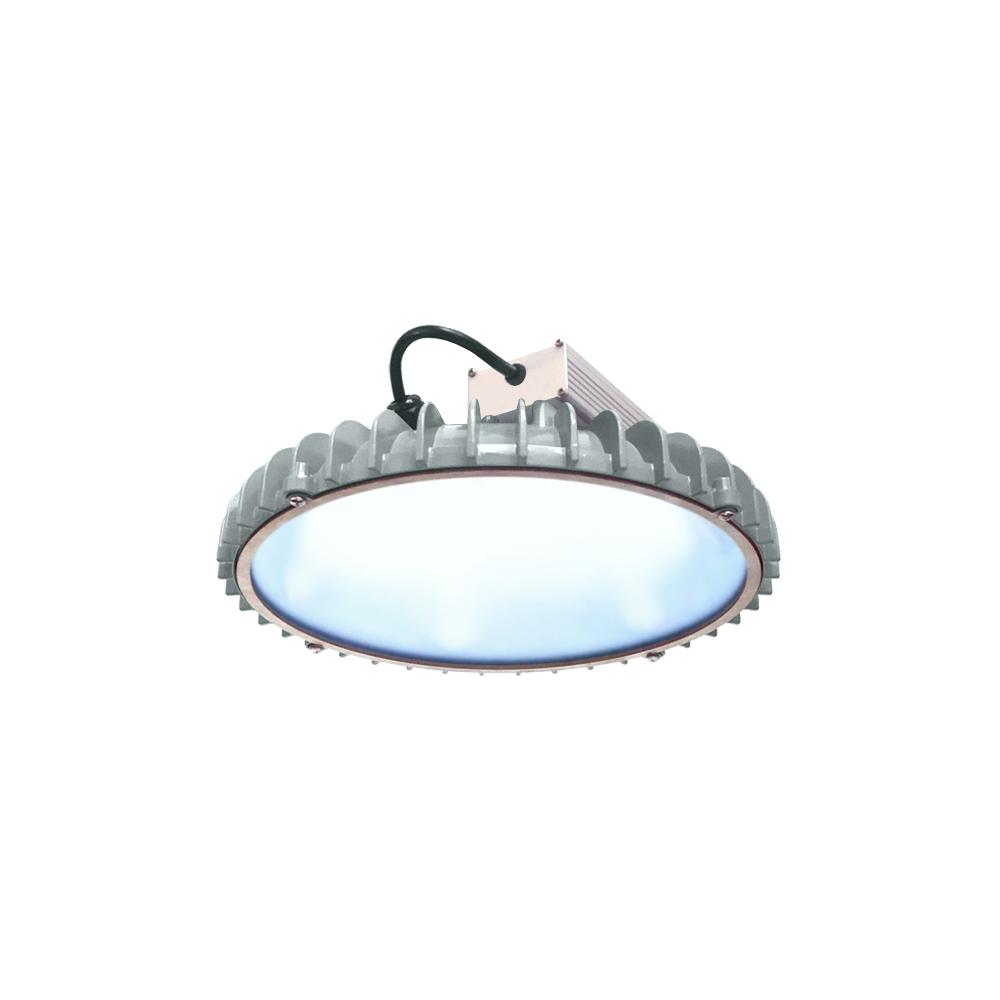

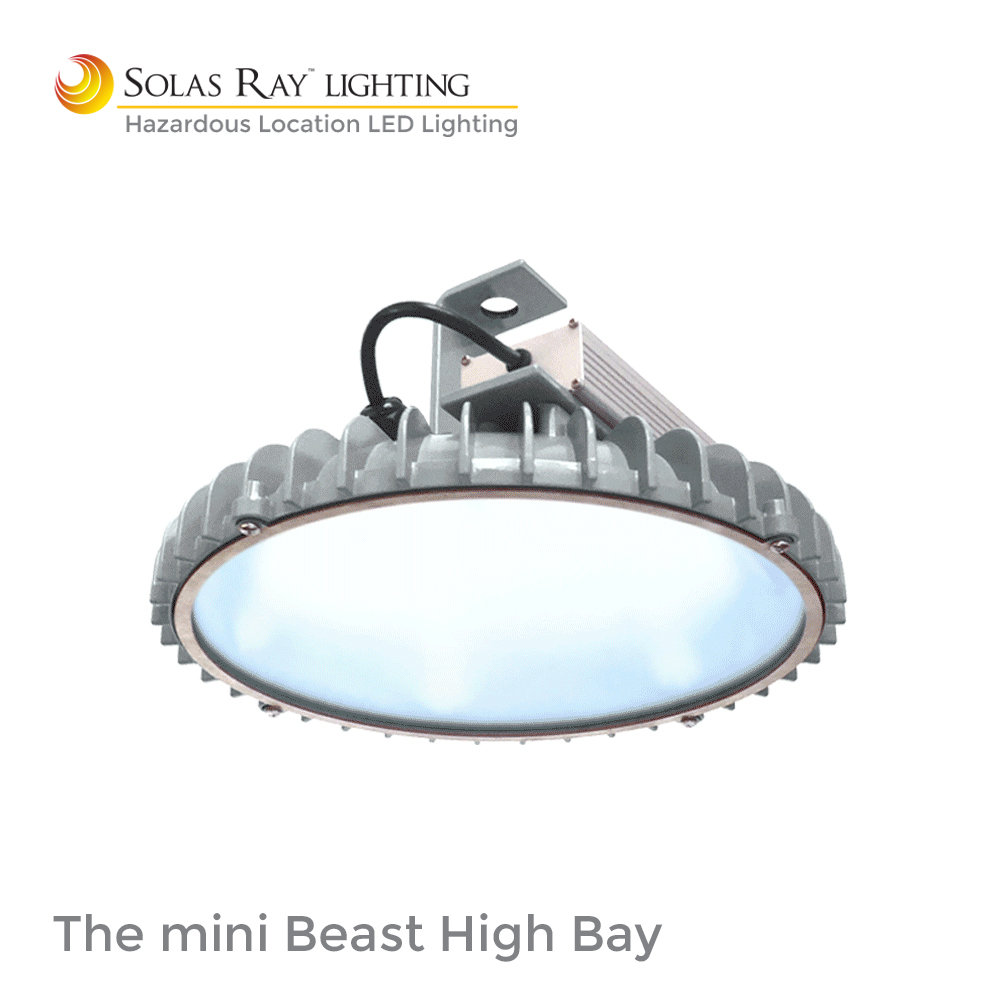

HL Series – The HazLoc Mini Beast™
Hazardous Location LED High Bay Lighting
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations
NEC and CEC
• Class I Div 2 – Groups A, B, C, D
• Class II Div 2 – Groups F, G
• ETL
• DLC Listed
• IP66
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• 14” diameter design delivers optimal light output to large surface areas.
• Ambient temperature capabilities: -40˚ C to 65˚C (149˚F).
• Passive cooling radiator design for high temperature applications / locations.
• Corrosion proof – coated aluminum alloy housing.
• Gray nylon corrosion resistant powder coat.
• Angle mounted COB LEDs for high efficacy and lighting in all directions.
• Proprietary silicone based potting compound used in driver for effective thermal conduction away from components.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277vAC / 277-480vAC |
| Wattage | 49w / 104w / 129w |
| Color Temp | 5000 (Standard) / 4000 Kelvin |
| Housing | Die-cast aluminum |
| Color | Gray |
| Coating | Corrosion resistant nylon powder-coat |
| Lens | Flat tempered glass |
| Beam Angle | 150° |
| T-Rating | T5 |
| Protection | IP66 |
| Ambient Temperature | -40°C (-40°F) to 65°C (149°F) |
| NPT | 3/4” |
| Lifetime | 100,000 hrs L70 |
| CRI | > 70 |
| Power Factor | > 0.95 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 49w | 104w | 129w |
| 6,100 lm | 13,800 lm | 16,700 lm |

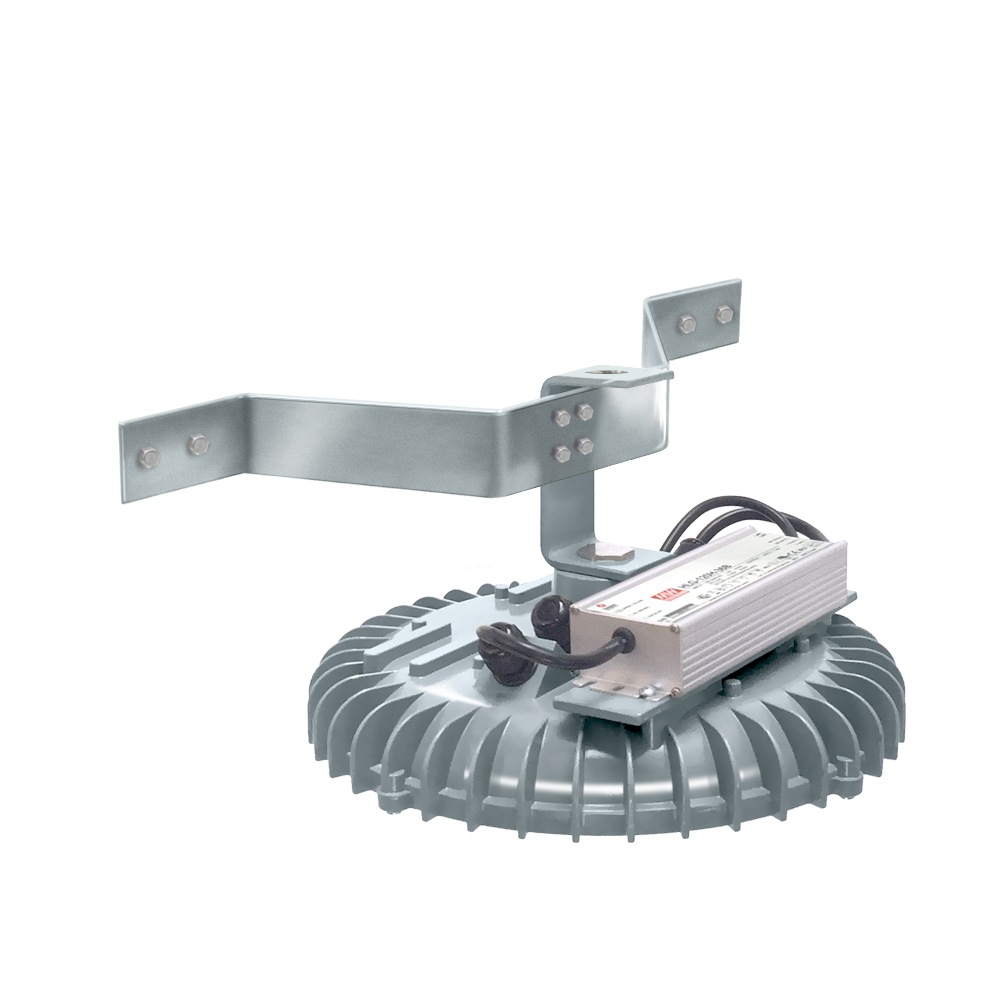

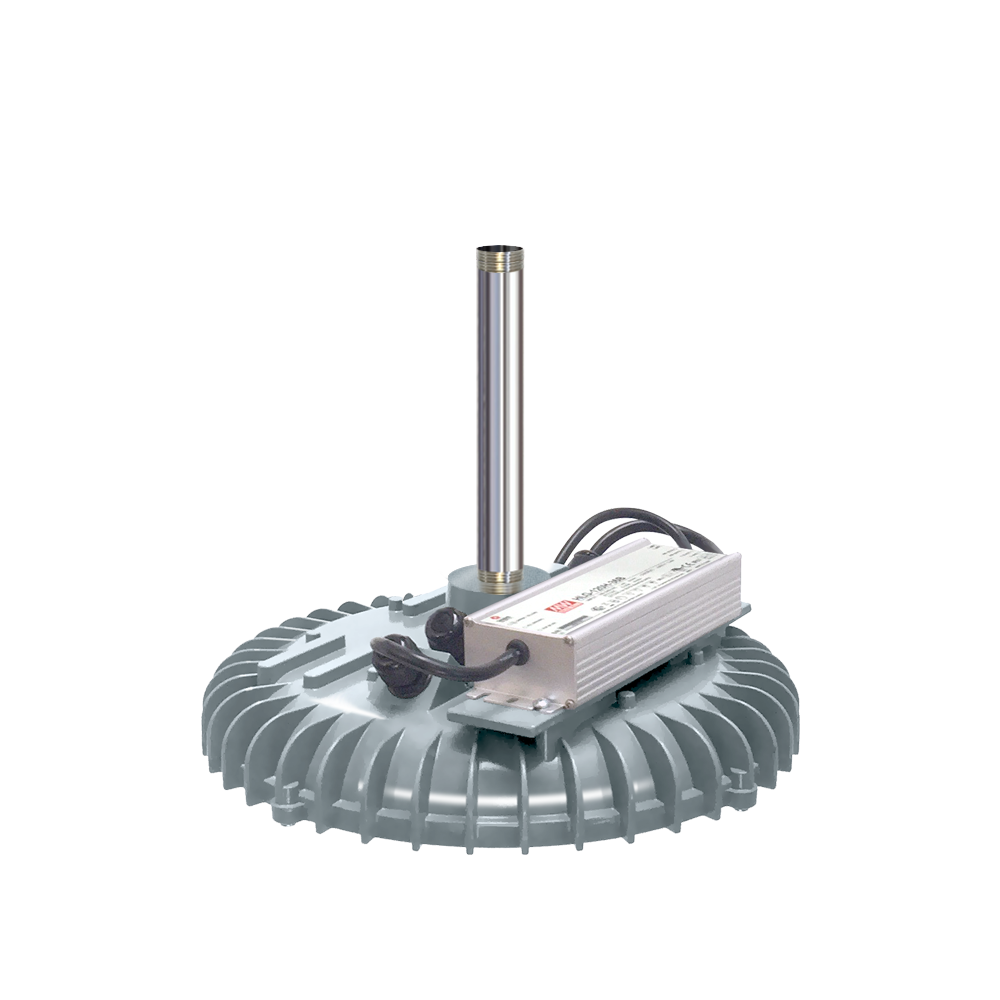

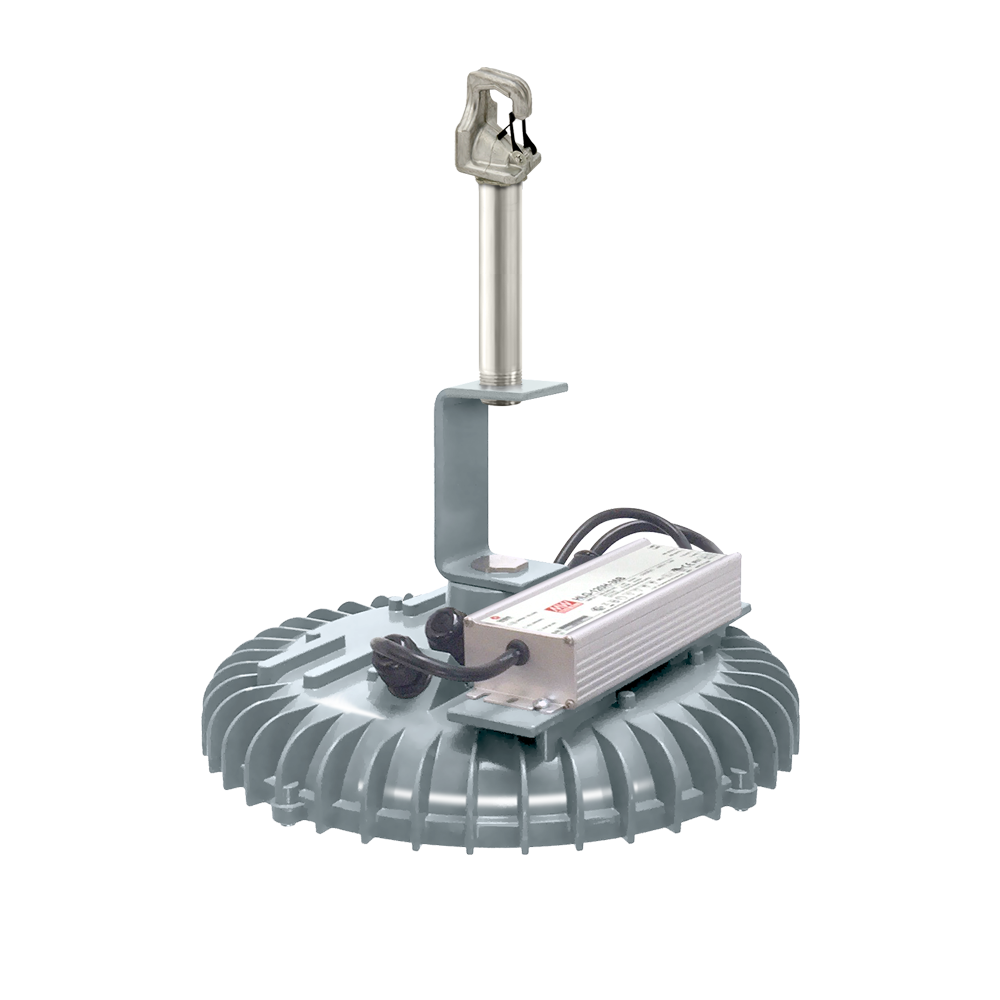

See specification sheet for product ordering selection, mounting options, weights and dimensions.
