CERTIFICATIONS / RATINGS

• UL Listed
• UL924
• NFPA 101 Life Safety Code
• IP66
• NEMA 4X
• NSF
• NEC
• OSHA
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

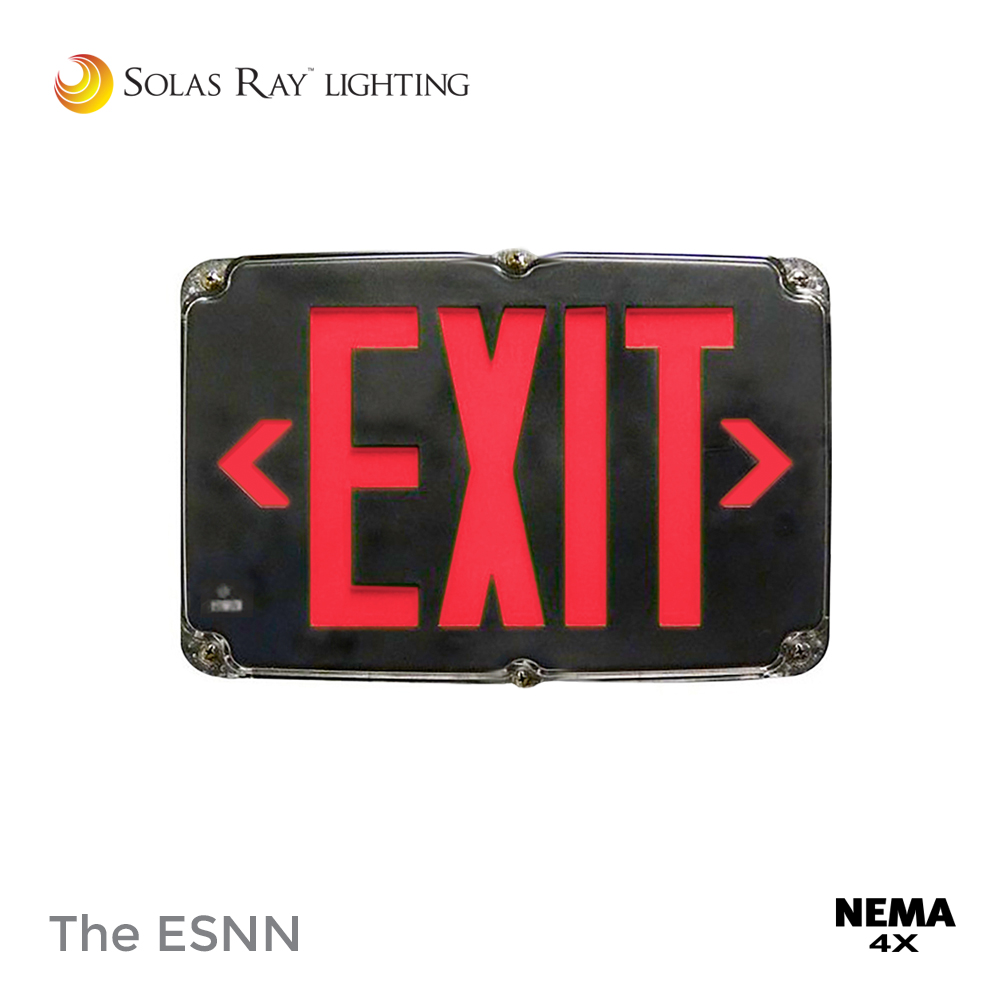

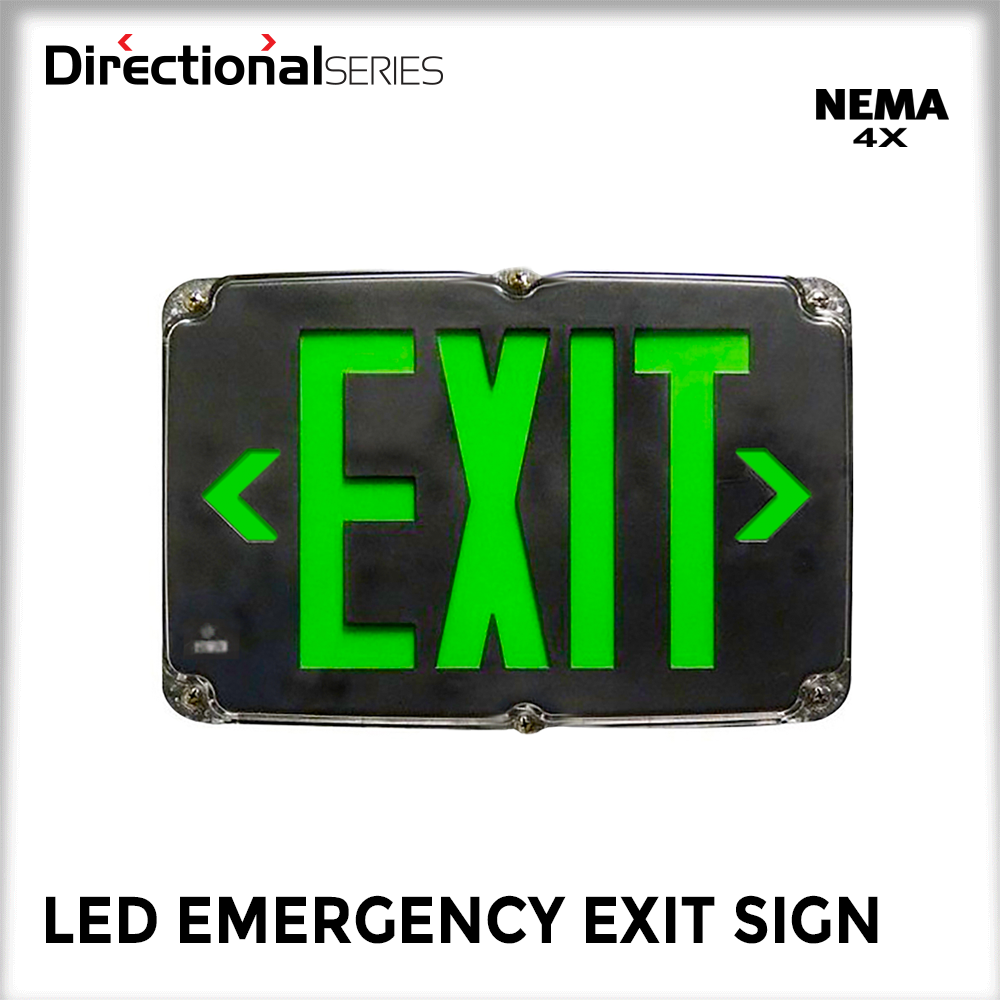

• Emergency exit sign with available battery backup.
• Ultra bright, energy efficient, long life Red or Green LEDs.
• UL listed for wet locations.
• NSF and NEMA 4X rated.

DOWNLOADS

SPECIFICATIONS

ELECTRICAL
• Dual 120/277 voltage.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery).
• Charge rate/power “ON” LED indicator light and magnetic test switch for mandated code compliance testing.
• 4.8V long-life, maintenance-free, rechargeable NiCd battery (EM models only).
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

HOUSING
• Housing is reinforced polycarbonate construction in white or black finish.
• Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws.
• Knockouts provided for conduit feed applications.
• EZ snap-out Chevron directional indicators.

MOUNTING
• Universal knockout pattern on back provided with gasket for watertight seal for back mount.
• Polycarbonate mounting canopy included for top or end mount.

OPTIONS
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
• 2C-120V/2C-277V: Voltage-specific dual circuit option on the AC only unit enables it to be connected to two different supplies at the same time.
• TP: Tamper-proof hardware helps discourage unauthorized access to the unit.

WARRANTY / LISTING
• Five year warranty on all electronics and housing. Batteries prorated for five years.
• Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
• IP66 rated for Ingress protection.
• NEMA4X and NSF rated.
• Certified to CEC under Title 20 Regulations.
• UL certified for use in food service operations.
• UL listed for wet locations -20°C (-4°F) to 50°C (122°F).

See specification sheet for product ordering selection, mounting options, weights and dimensions.
