CERTIFICATIONS / RATINGS

• UL Listed
• UL924
• NFPA 101 Life Safety Code
• NEC
• OSHA
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

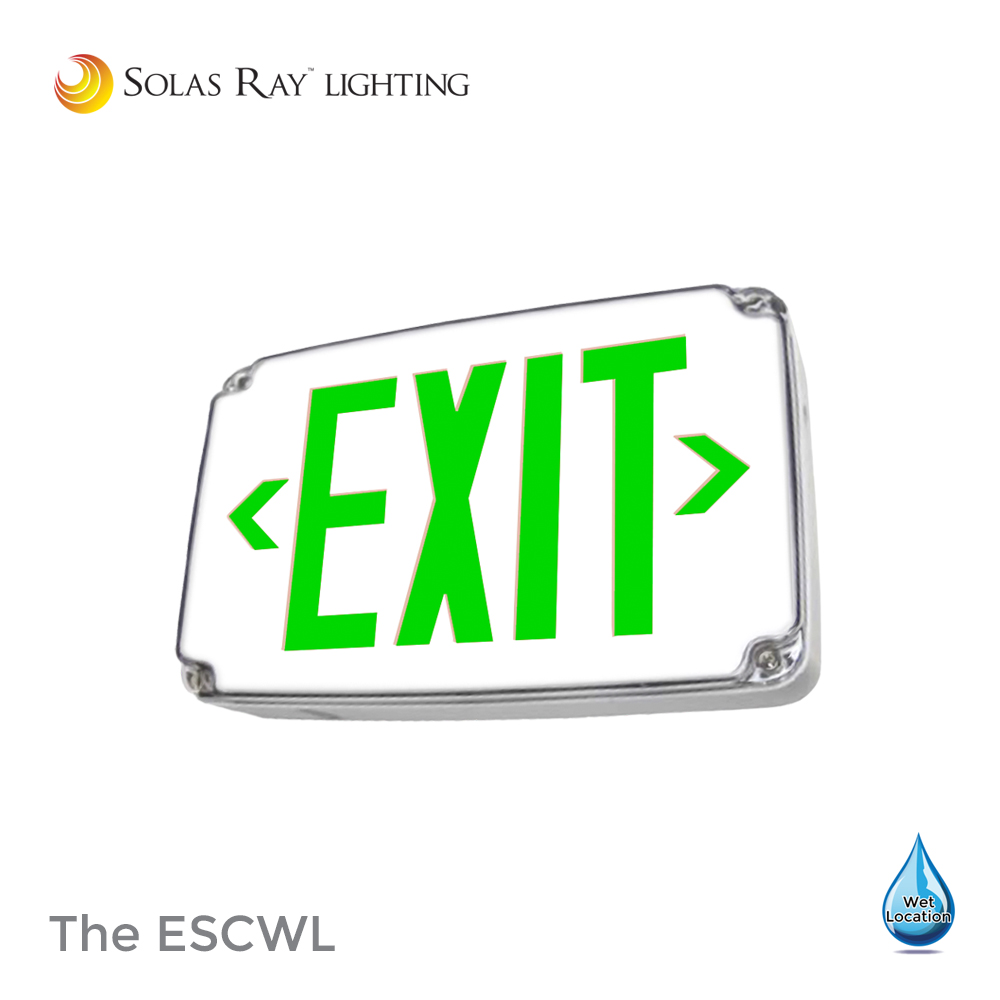

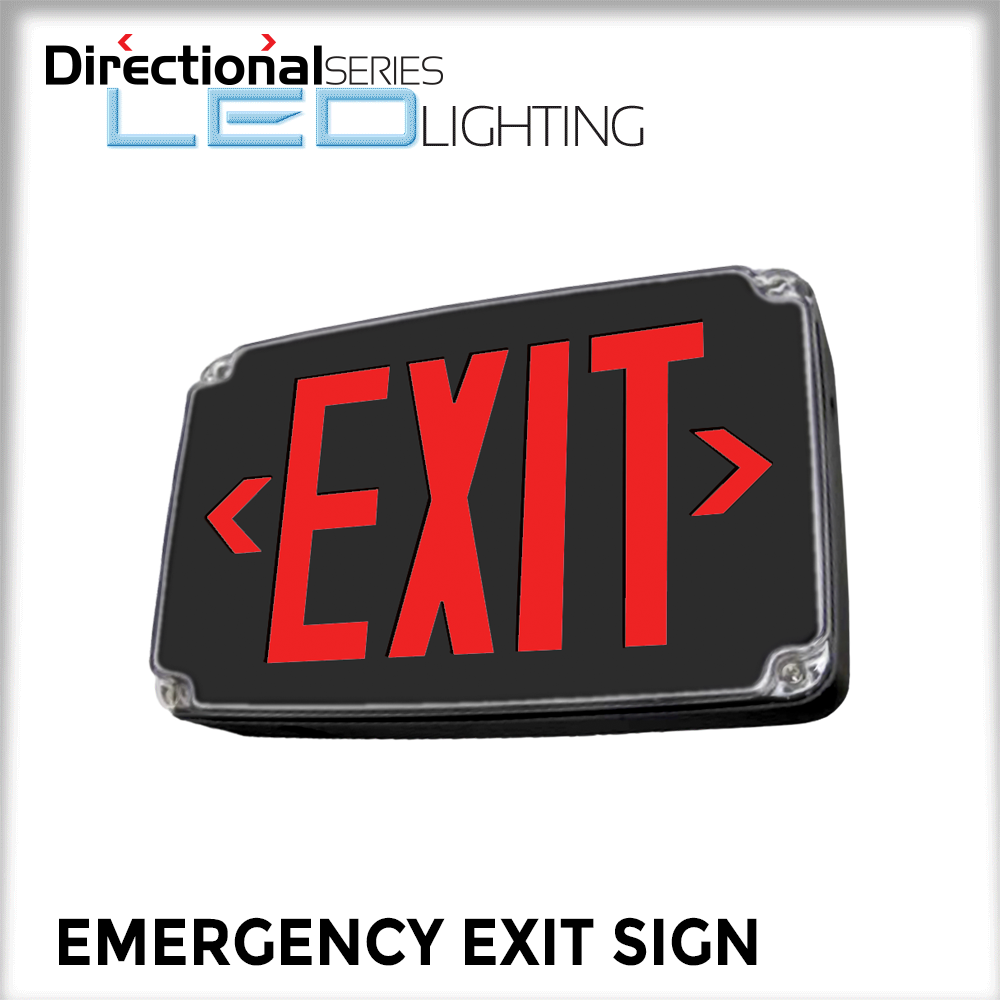

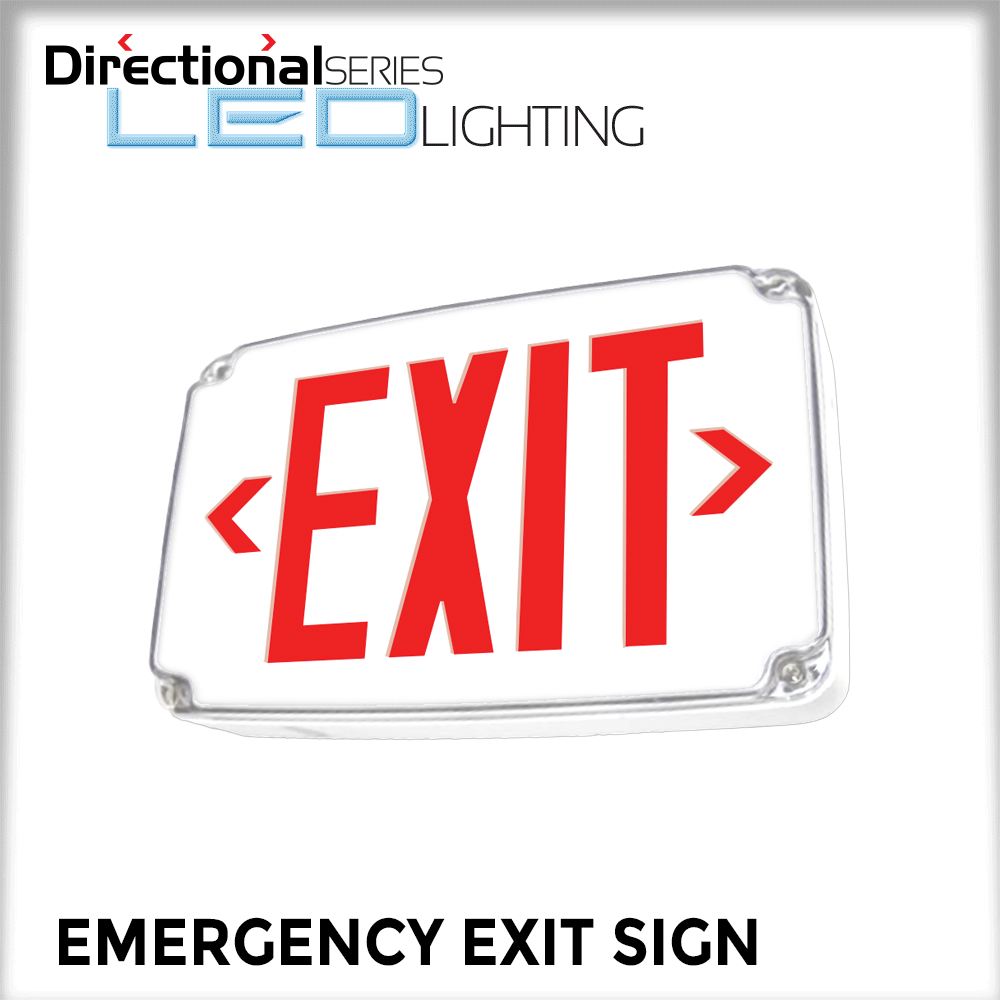

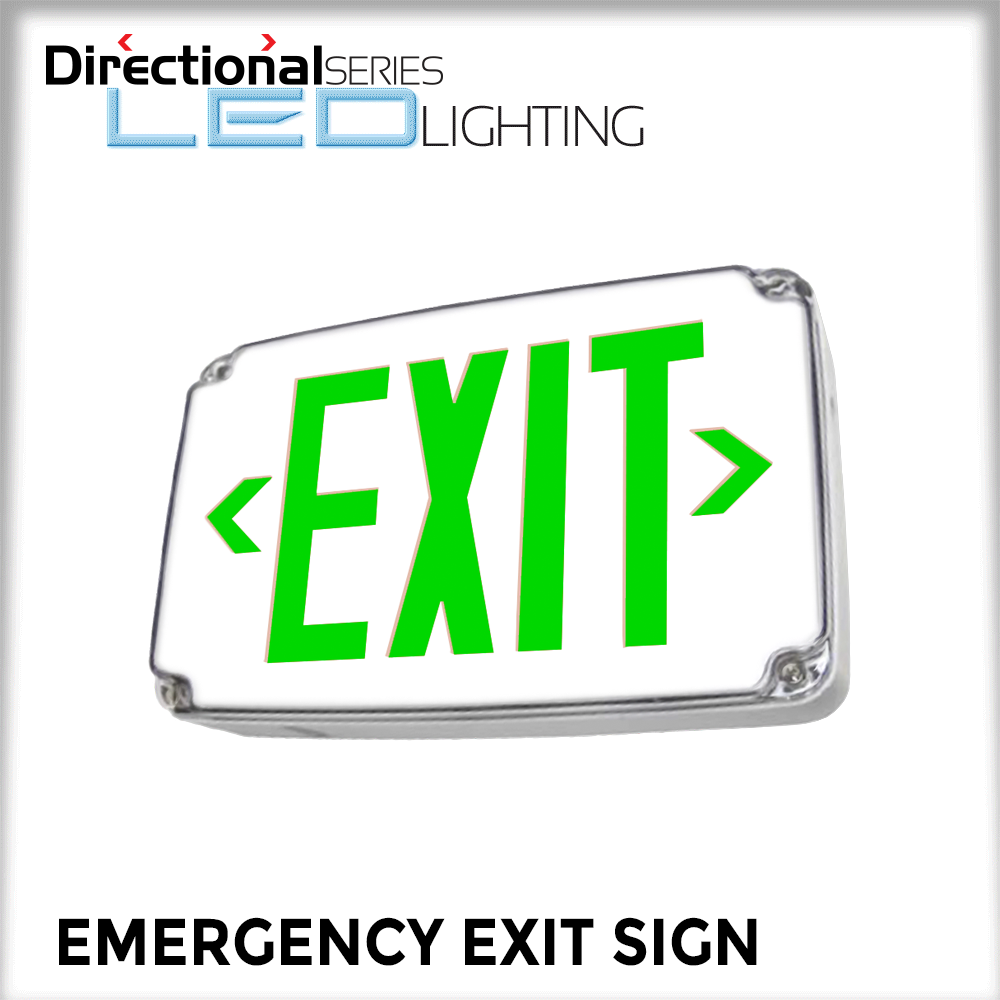

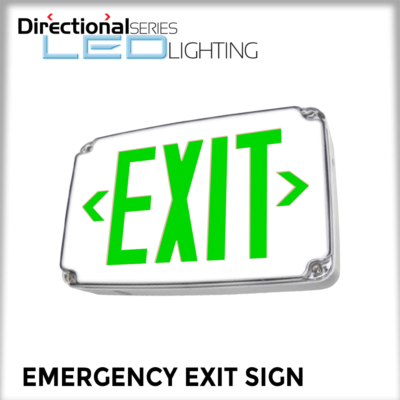

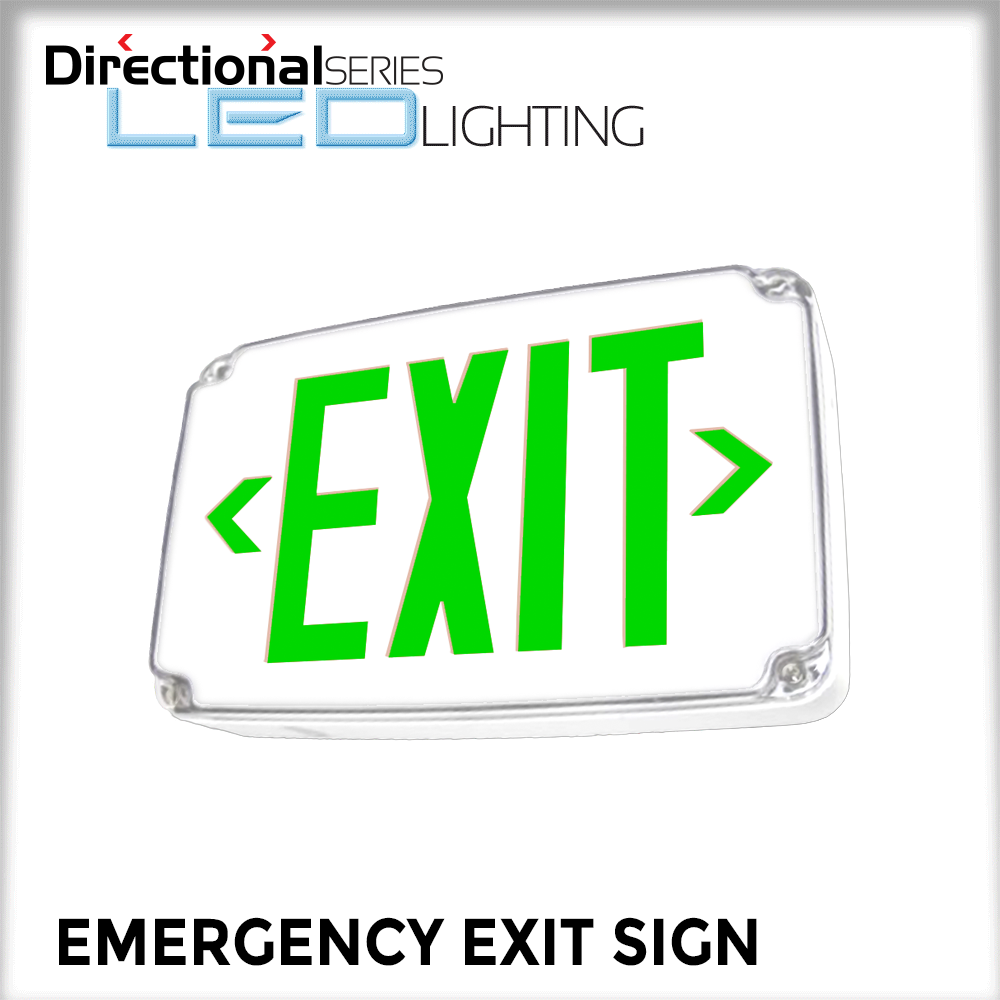

• Emergency exit sign with available battery backup.
• Ultra bright, energy efficient, long life Red or Green LEDs.
• UL listed for wet locations.
• Certified to CED under Title 20 Regulations.
• Ambient temperature rated -20°C (-4°F) to 50°C (122°F).

DOWNLOADS

SPECIFICATIONS

ELECTRICAL
• Dual 120/277 voltage.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
• 4.8V long life, maintenance-free, rechargeable NiCd battery (EM
models only).
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

HOUSING
• 5VA flame retardant, UV-stabilized polycarbonate in white, black or gray finish.
• High-impact resistant, UV-stabilized polycarbonate clear lens.
• Corrosion-resistant enclosure with engineering grade silicone gasket.
• Knockouts provided for conduit feed applications.
• EZ snap-out Chevron directional indicators.

MOUNTING
• Polycarbonate mounting canopy included for top or end mount.
• Universal knockout pattern on back plate for wall mount.

OPTIONS
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
• 2C-120V/2C-277V: Dual circuit option on the AC-only unit enables it to be connected to two different power supplies at the same time.
• TP: Tamper-proof hardware helps discourage unauthorized access to the unit.
• Custom: Signs available with requested “special” wording.

WARRANTY / LISTING
• Five year warranty on all electronics and housing. Battery prorated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for wet locations -20°C (-4°F) to 50°C (122°F).
• Certified to CEC under Title 20 Regulations.

See specification sheet for product ordering selection, mounting options, weights and dimensions.
