This field adjustable high bay luminaire provides modifiable illumination for large spaces in commercial & industrial applications at an economical price point.

• Field adjustable WATTAGE selection provides flexibility and energy savings.
• Field adjustable BEAM PATTERNS for open areas and aisle lighting in the same fixture.
• Plug-in motion sensor (PIR) option added easily with no internal wiring is required.
• Remote control is available for the sensor if on-site re-programming is required.

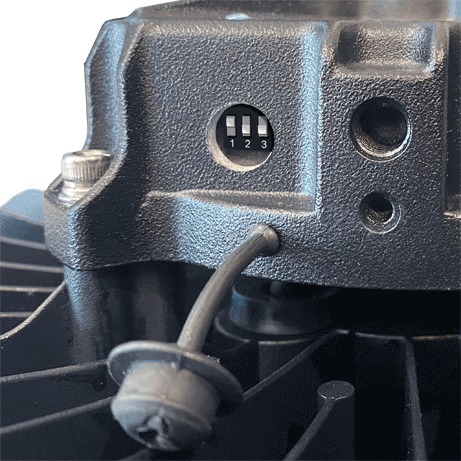

• Fixture ships at 200-watt setting and easy access dip-switches can lower the wattage.
• Dimmable drivers are standard. Non-dimmable available upon request.
• Unique heat-sink design with a compact 12.6” overall diameter.

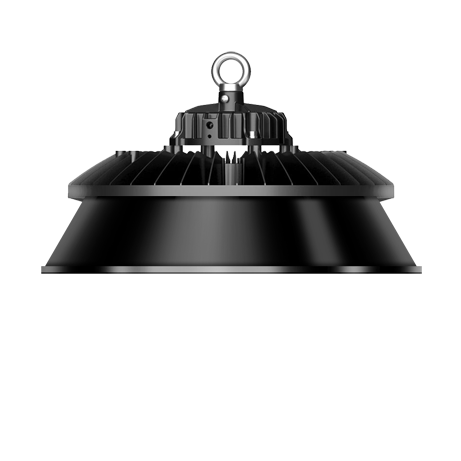

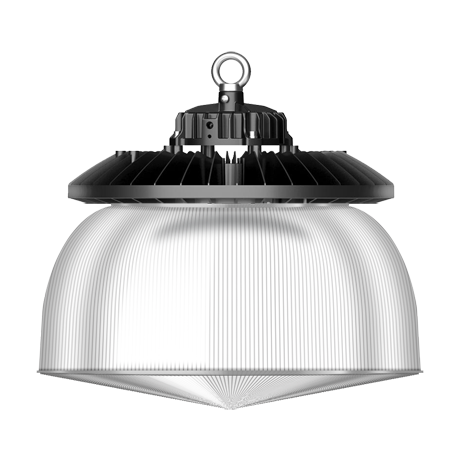

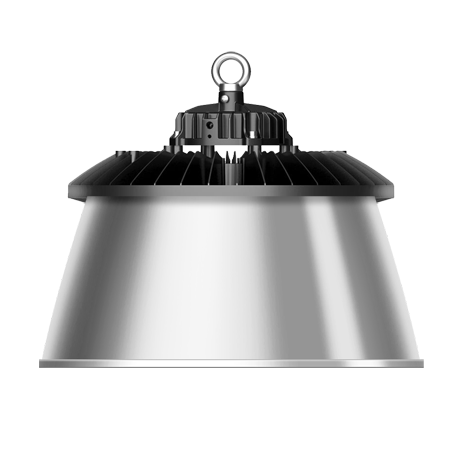

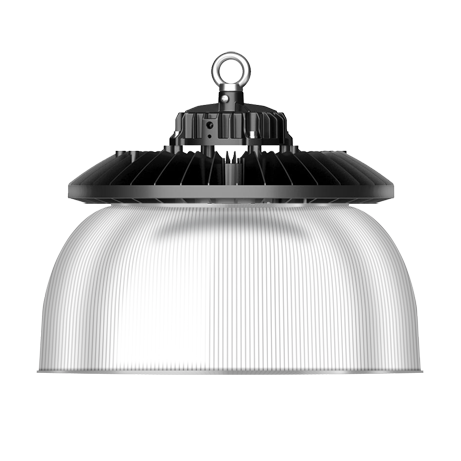

• Polycarbonate (PC) and Aluminum (ALU) reflector options are available.

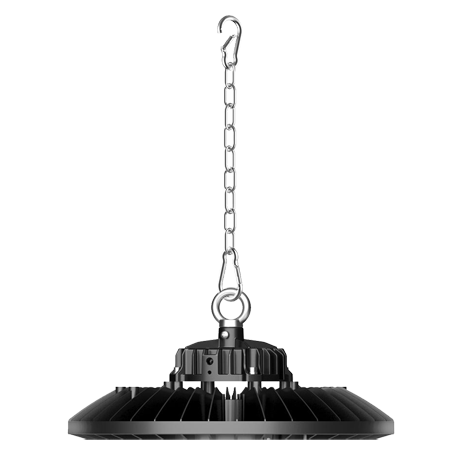

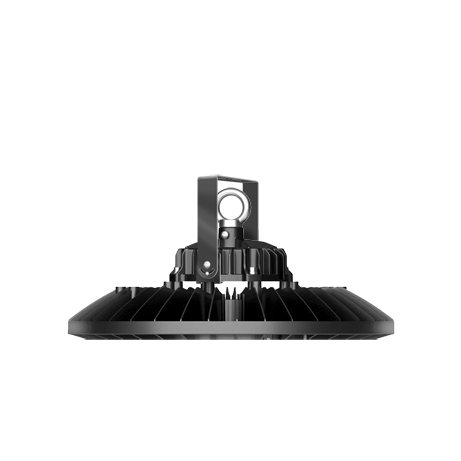

• Eye bolt mounting standard and adjustable bracket mounting is available.

Wattage Lumen
200W 30,000
150W 22,500
120W 18,000
100W 15,000

MHB-200
