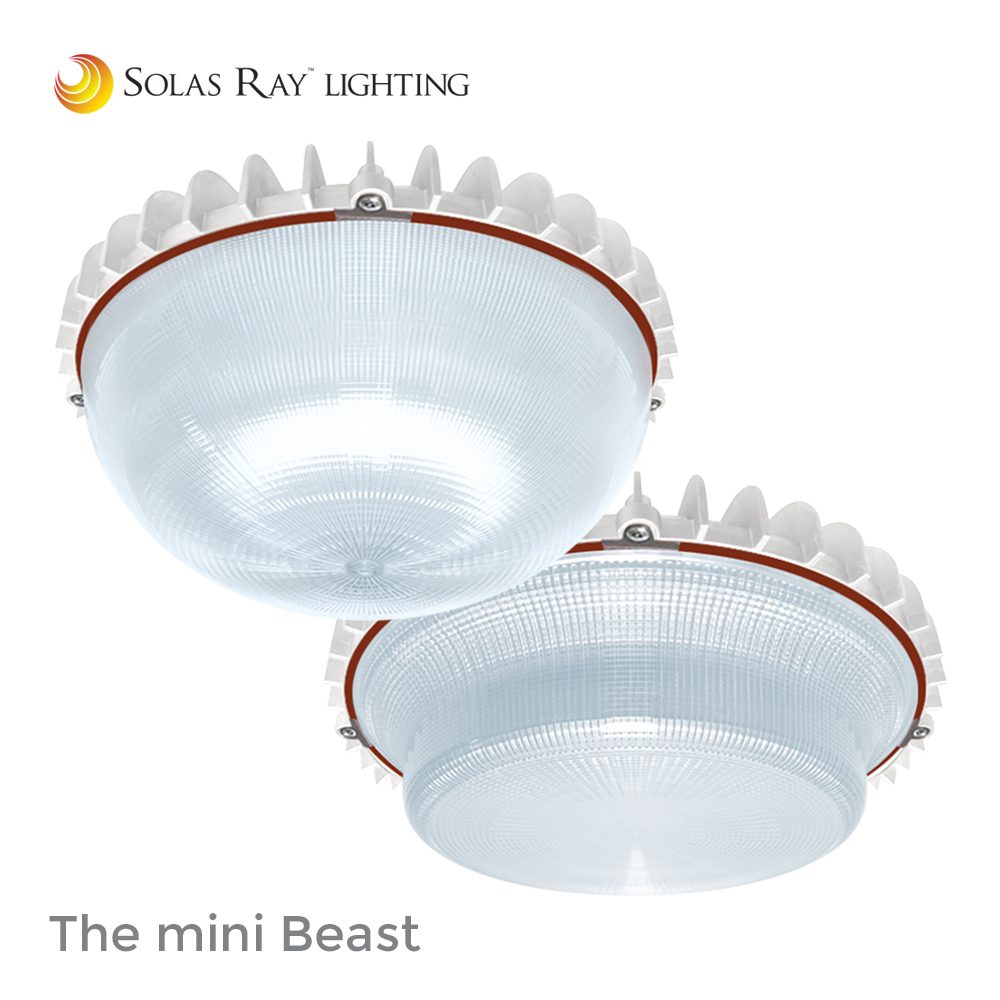

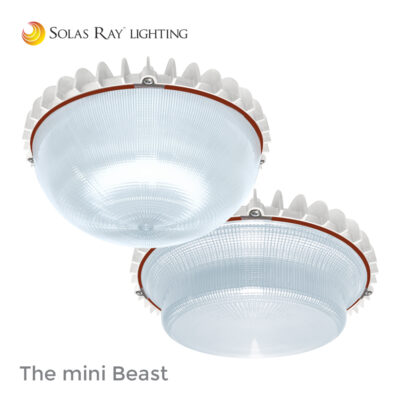

LB Series – The Mini Beast™
Industrial LED High Bay Lighting
KEY FEATURES AND BENEFITS
• 14” Diameter design provides a large surface area to deliver optimal light output without the discomfort of glare.
• Superior Passive cooling engineered for high temperature applications or locations.
• Angle mounted LEDs deliver light distribution similar to traditional HID lamps.

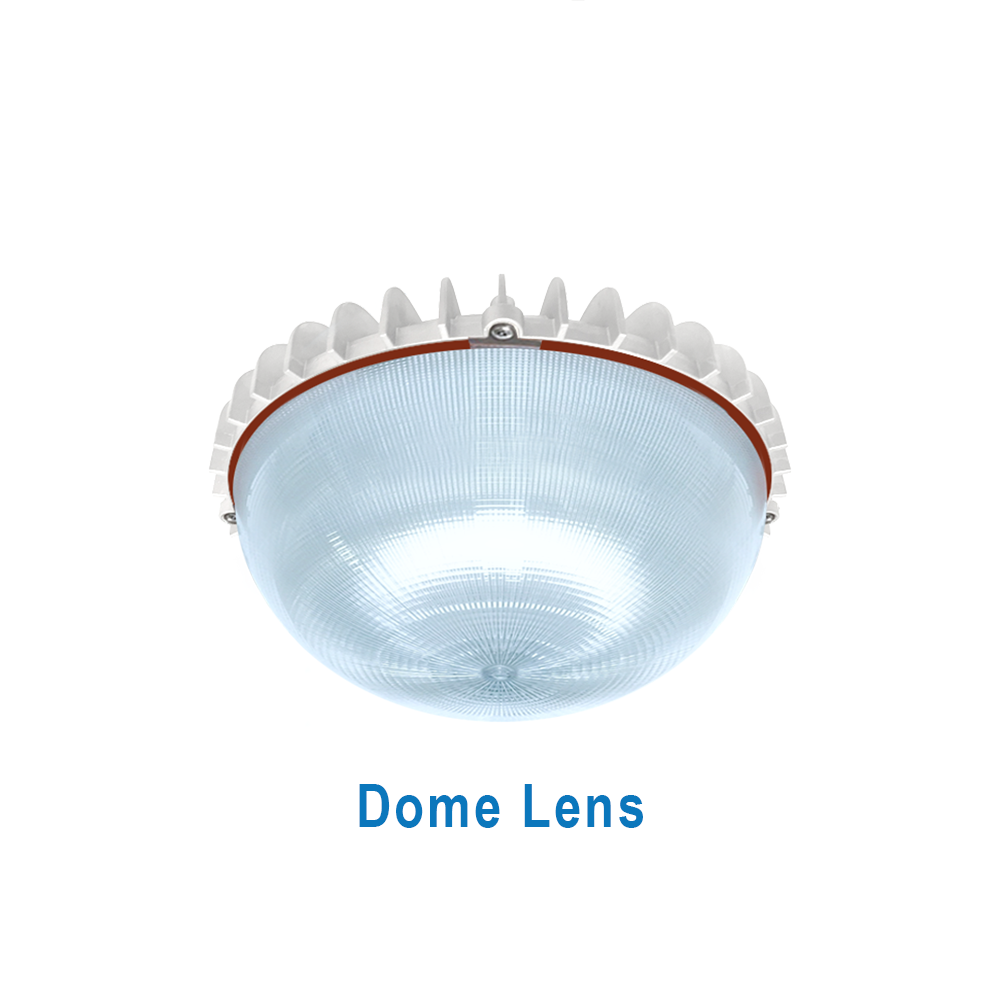

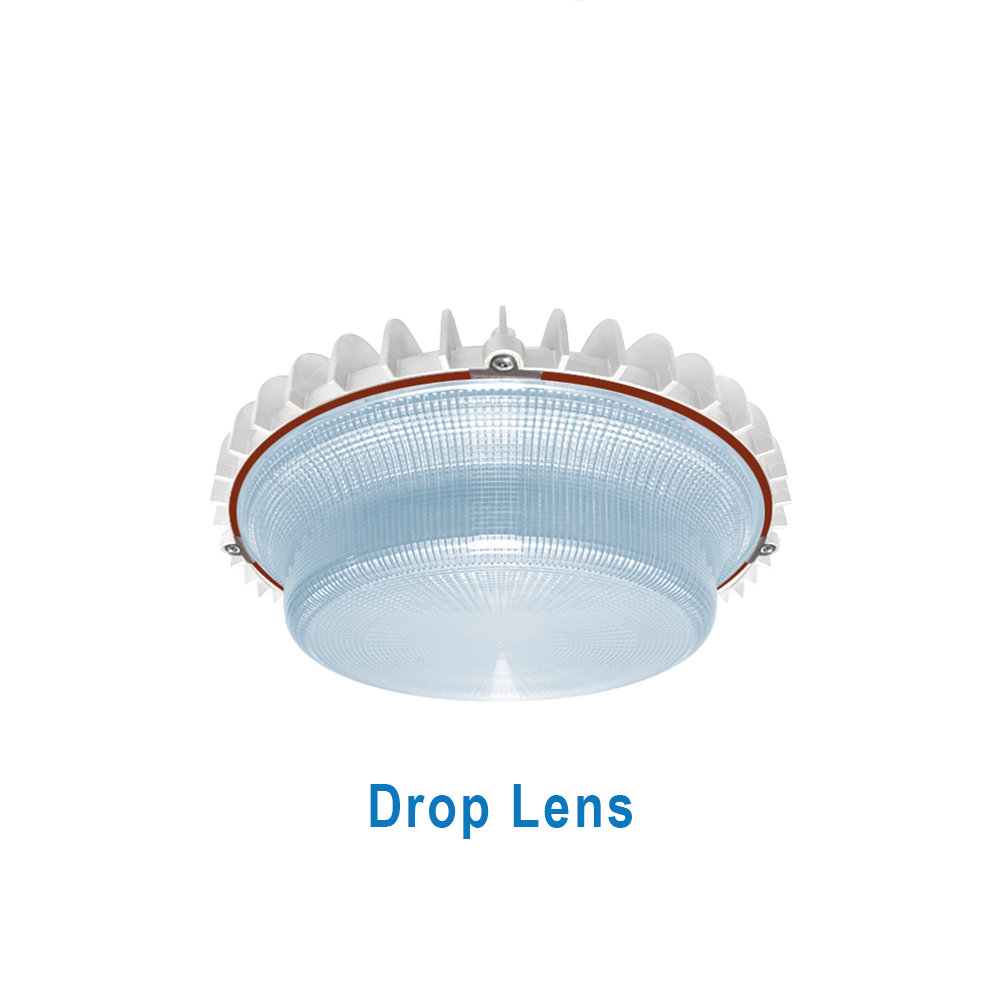

• Choose polycarbonate drop lens (standard), polycarbonate dome lens, or flat tempered glass lens.
• Built-in 6kV DM (differential mode) and 10kV CM (common mode) surge protection.
• Aluminum housing with oven baked white powdered nylon coating for increased corrosion resistance.
• Max ambient temperature rating of 65˚C / 149˚F.
• 1-10v dimming driver standard (If external access to dimming control wiring is needed, please request when ordering).
• Proprietary silicone based potting compound used in driver for effective thermal conduction away from components.
SPECIFICATIONS
| Voltage | 120-277vAC / 277-480vAC |
| Wattage | 49w / 104w / 129w |
| Color Temp | 5000 (Standard) / 4000 Kelvin |
| Housing | Die-cast aluminum |
| Color | White |
| Coating | Corrosion resistant nylon powder-coat |
| Lens | Polycarbonate drop lens (standard) |
| Polycarbonate dome lens* (optional) | |
| Flat tempered glass (optional) | |
| Hardware | S304 stainless steel end caps |
| NPT | 3/4” |
| Ambient Temperature | -40°C (-40°F) to 65°C (149°F) |
| Lifetime | 100,000 hrs L70 |
| CRI | ≥ 70 |
| Power Factor | > 0.95 |
| Protection | IP66 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 49w | 104w | 129w |
| 5,800 lm | 13,700 lm | 16,200 lm |

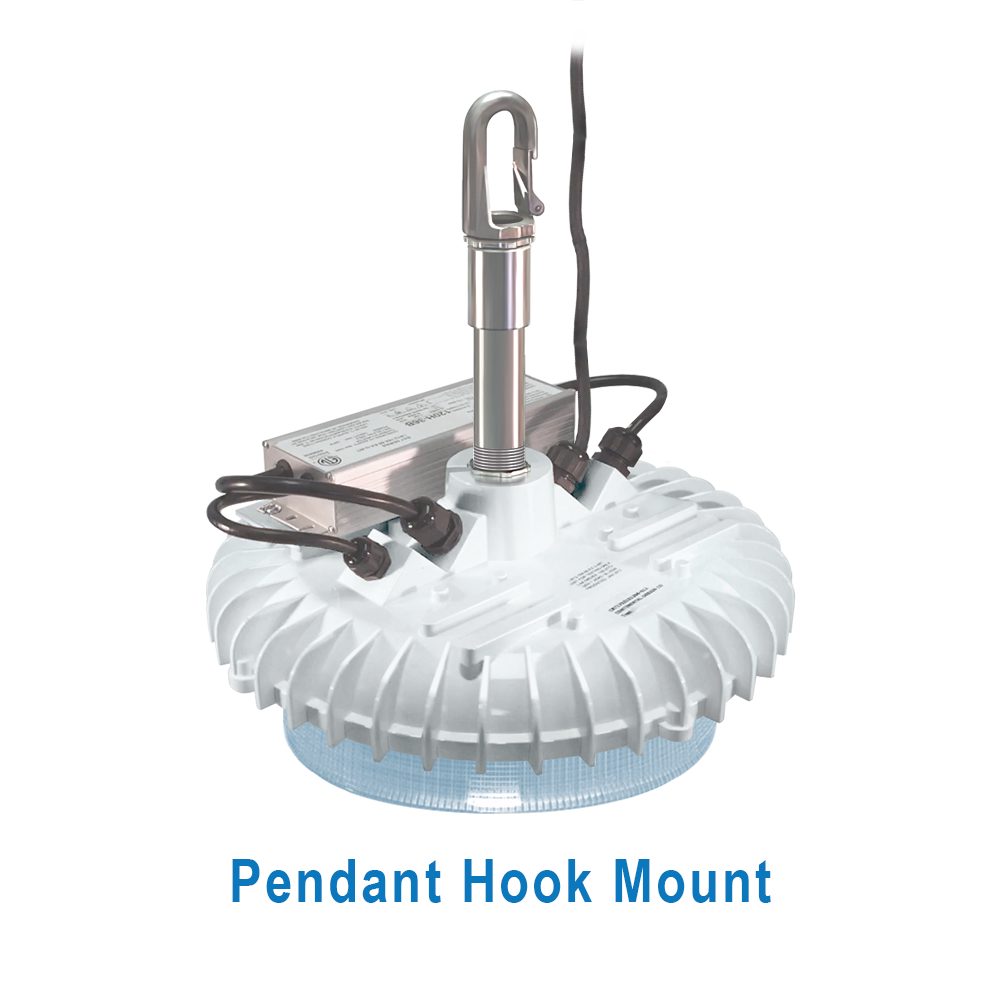

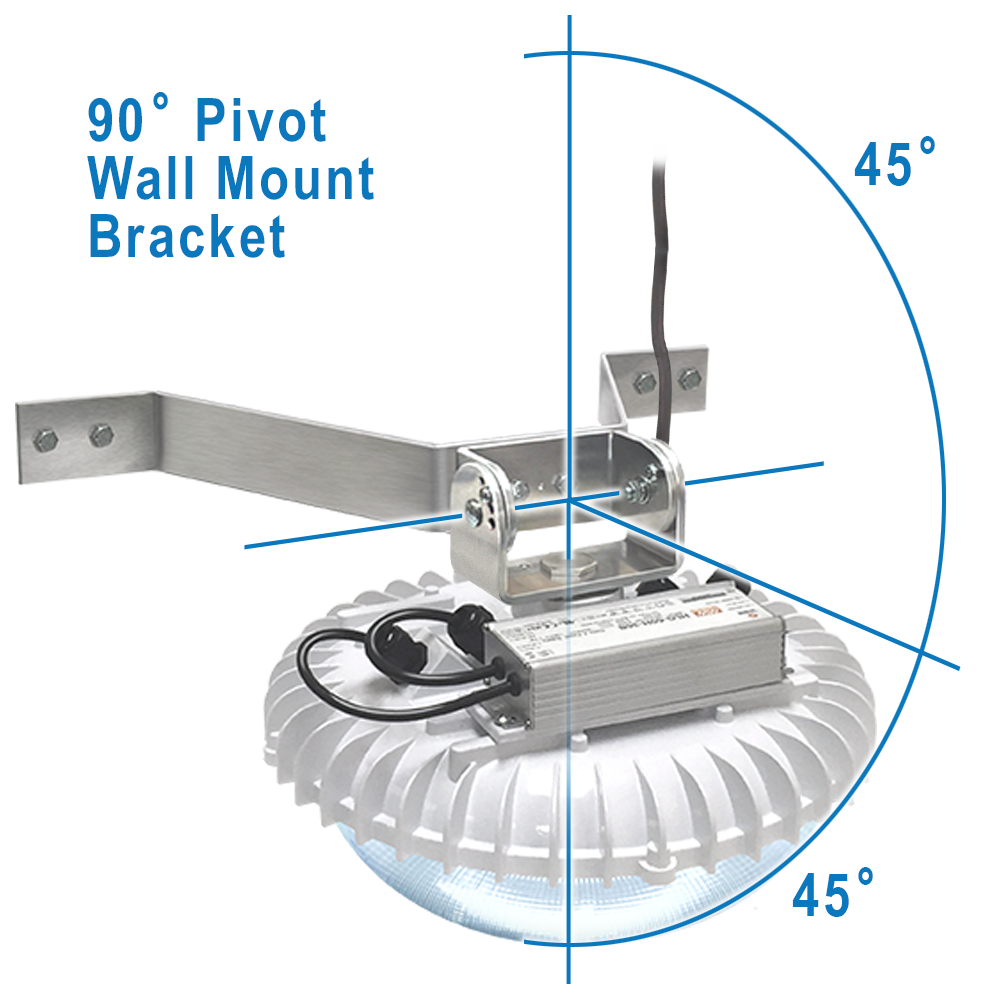

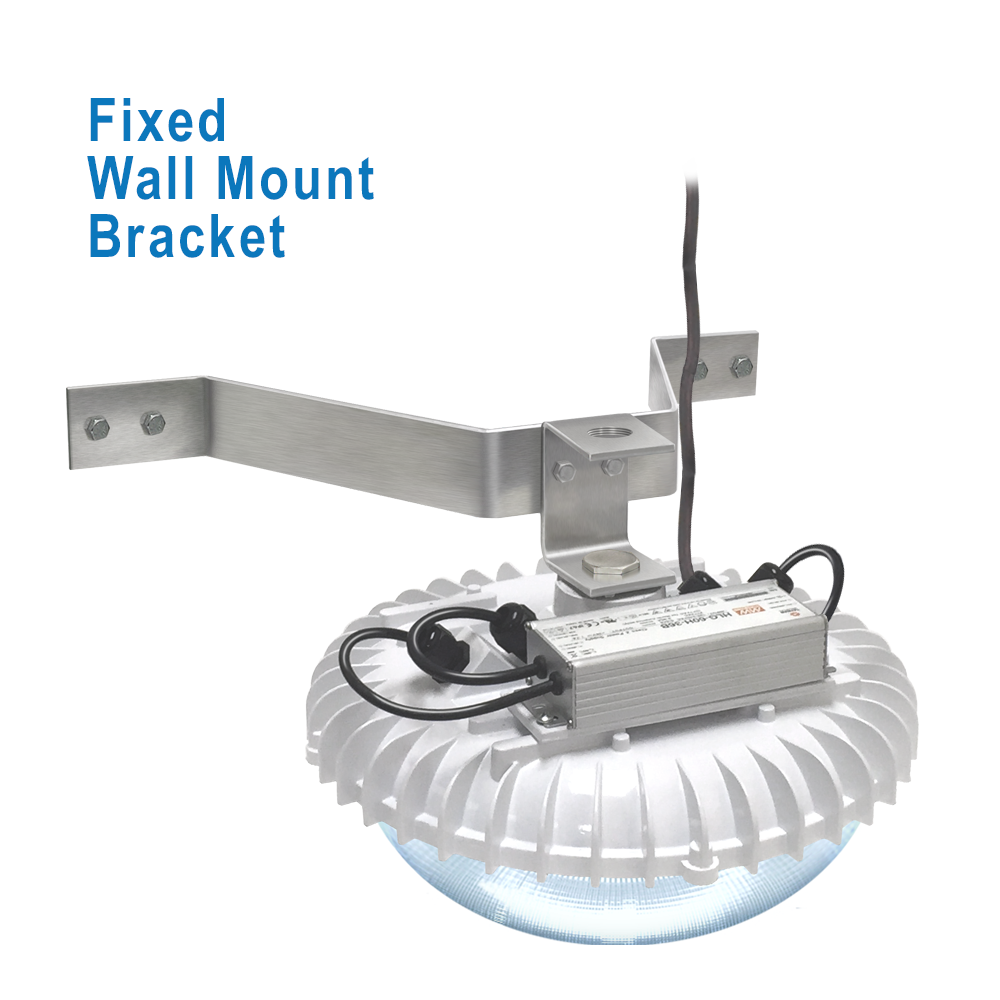

See specification sheet for product ordering selection, mounting options, weights and dimensions.
