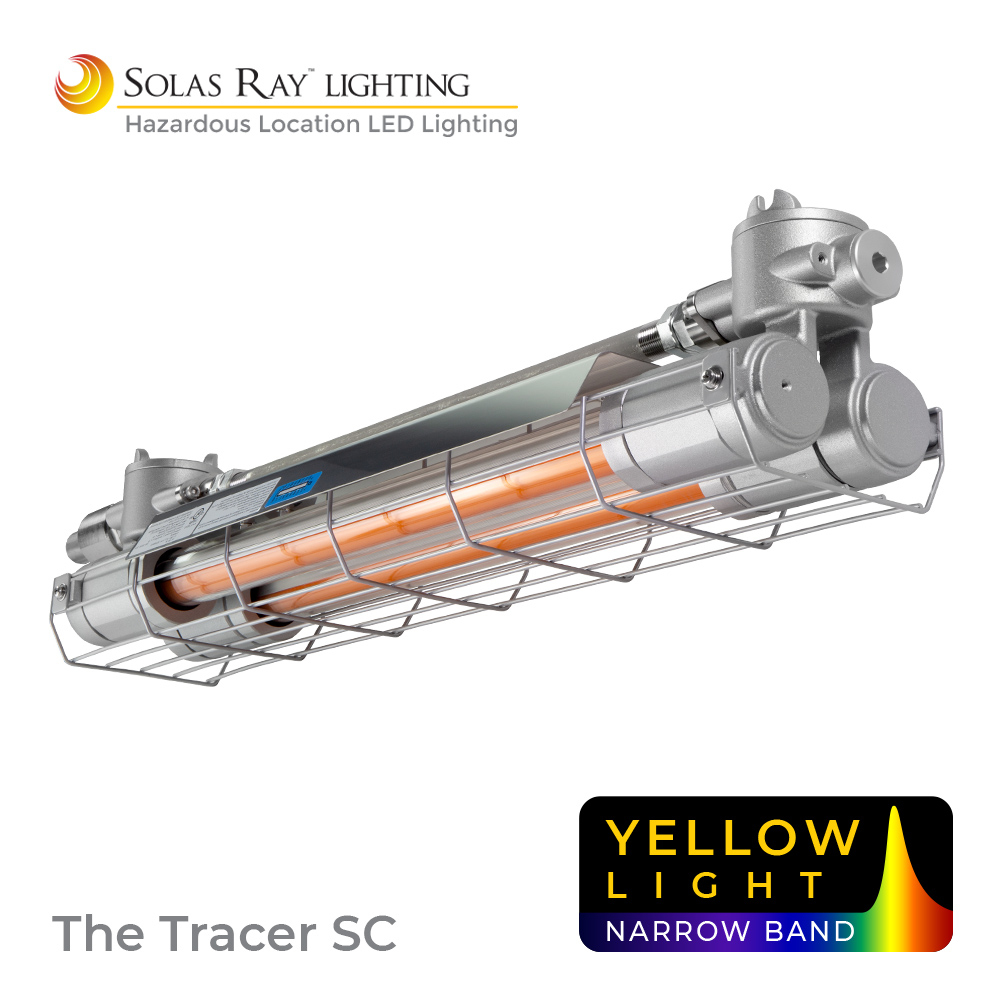

TSC Series – The Tracer™ SC

Narrow Band Yellow Light (590nm) – Ultraviolet Free / No UV



• UL 844 – Hazardous Locations │ UL1598

• Class I, Div 1 – Groups C, D
• Class II, Div 1 – Groups E, F, G

• IP67
• NEMA 6
• RoHS Compliant
• CSA C22.2 137-18
• CSA C22.2 250.0
• CE
• See Specification Sheet For Complete Listing


• Narrow band yellow light (590nm / blocks UV wavelengths under 500nm) designed for use in semiconductor manufacturing, laboratories, health care facilities, pharmaceutical labs, and other applications where UV light would be damaging.
• Available as a single tube or dual tube configuration in 2ft or 4ft lengths.
• Heavy duty aluminum housing.
• Wall, ceiling or pendant mounting options available.
• Includes protective wire guard.






Voltage 120-277 VAC
Wattage 10W / 20W / 40W
Color Temp  1800 Kelvin (Yellow)* / 590nm
Housing Aluminum Alloy
Color Gray
Lens Glass Tubes
Lifetime 60,000 hrs L70
Beam Angles 110°
Ambient Temperature -20°C (-4°F) to 40°C (104°F)
T-Rating T6
Power Factor cos ≥ 0.9
Protection IP67 / NEMA 6
Warranty 5 Year Limited Warranty


1X2 10W 1X4 20W 2X2 20W 2X4 40W
450 900 900 1,800

See specification sheet for product ordering selection, mounting options, weights and dimensions.
